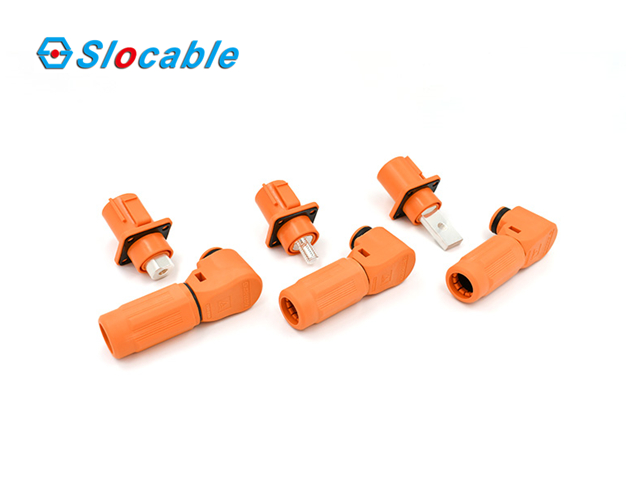

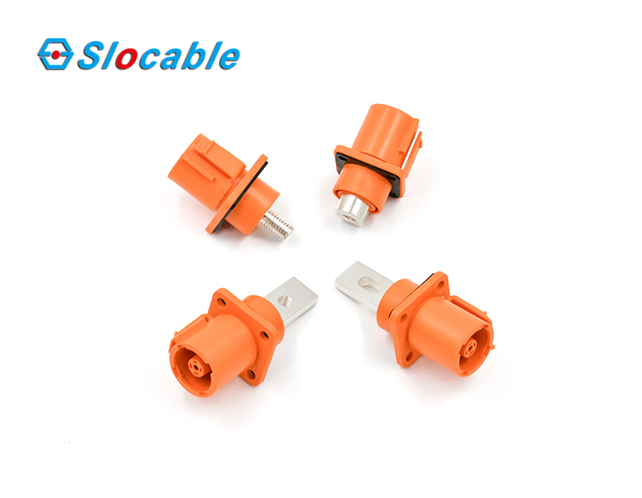

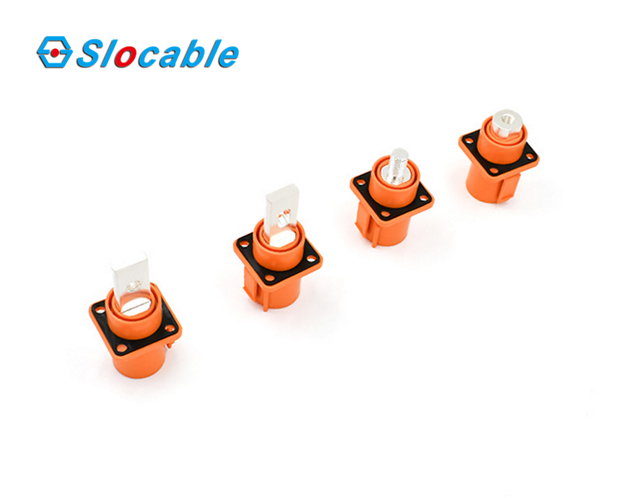

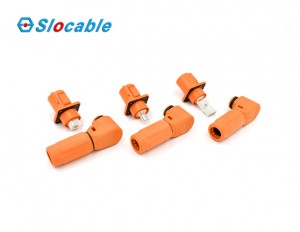

Energy Storage Connector 1500V for Battery Cable Slocable
- Waterproof Level: IP67
- Certification: CE, UL, ROHS
- Operating Temperature: -40℃-125℃
Energy storage connector is a connector used to connect energy storage devices (such as batteries, supercapacitors, etc.). They play a key role in many applications, including in electric vehicles, renewable energy systems and power electronics.
◆The design of the connector incorporates an integral latching system to ensure clear electrical and mechanical connections.
◆The energy storage connector shell is made of thermoplastic material, which is not only durable, but also has excellent dielectric and mechanical properties and meets the environment and has passed lead-free certification.
◆The contacts are made of high-quality copper alloy material to ensure the stability of the electrical connection.
◆Passed ROHS/UL4128 certification.
Technical Parameters
|
Classification/ Item |
Energy Storage Connector Series |
|||
|
3.6MM |
6MM |
8MM |
12MM |
|
|
Rated Current |
50A-70A |
100A-120A |
150A-250A |
250A-400A |
|
Rated Voltage |
1000V DC |
1000V DC |
1500V DC |
1500V DC |
|
Contact Resistance |
≦0.2mΩ |
≦0.3mΩ |
≦0.3mΩ |
≦0.5mΩ |
|
Support Customization |
yes |
yes |
yes |
yes |
Product Features

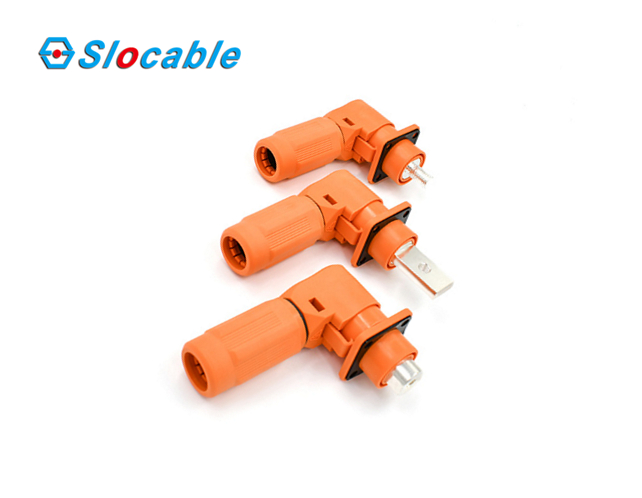

1. Small size, fast and convenient connection, using right-angle structure to save wiring space;
2. It has the function of preventing misplugging of positive and negative poles, preventing the risk of short circuits and arcing caused by misplugging. At the same time, it can be rotated 360°, which is convenient for multi-directional installation and outlet;
3. It adopts a built-in connection and locking mechanism, which can be operated by one hand and can be automatically locked;
4. Possess excellent protection against electric shock.

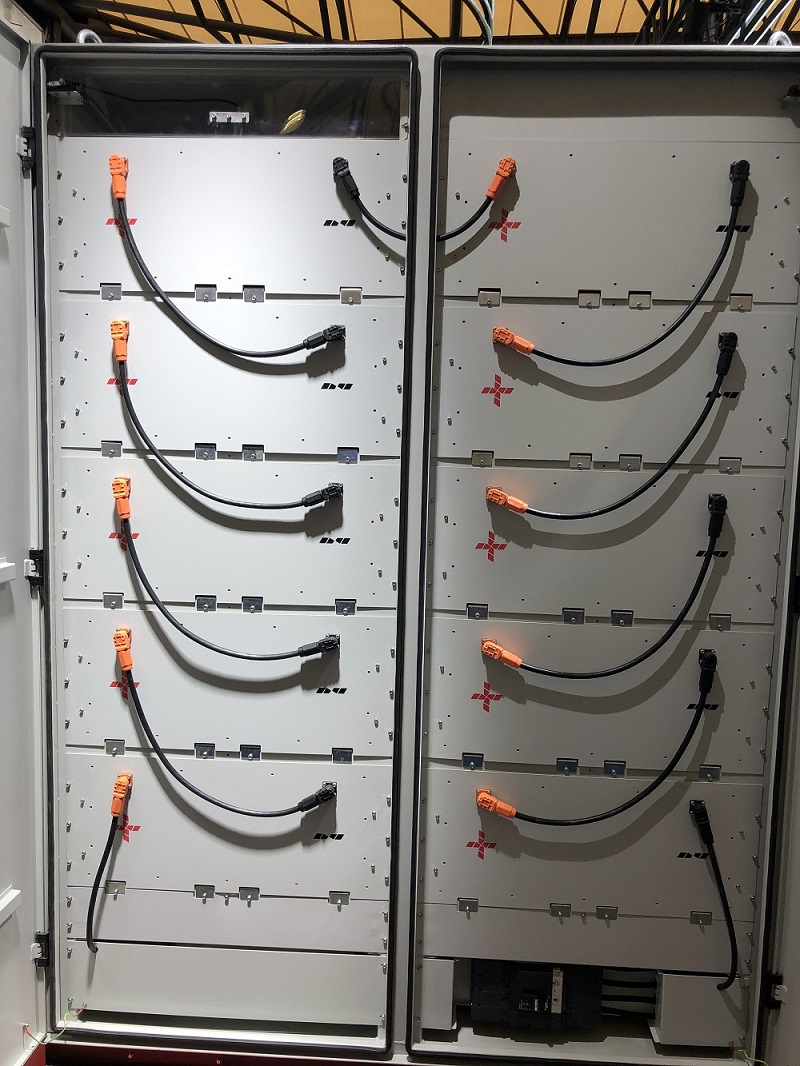

Application
