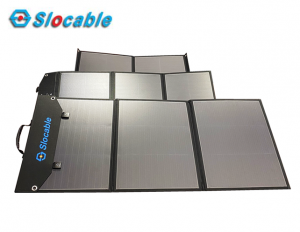

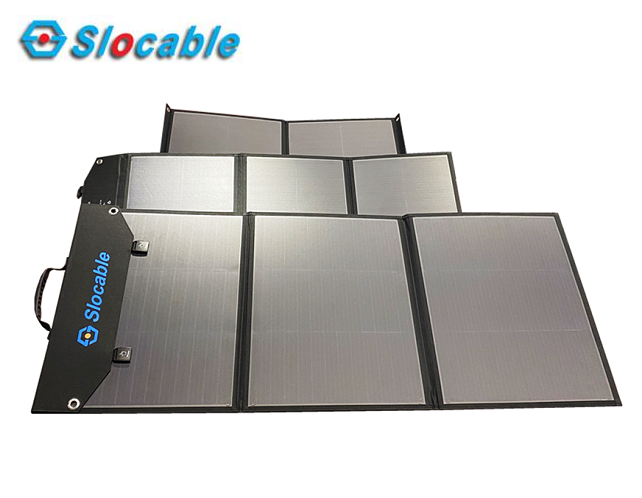

Foldable Portable Solar Panels
- Maximum Power: 105W
- Folds: 3
● Powered by Shingled monocrystalline silicon solar panel, Folding Solar Panel is designed to provide emergency power for users to power digital devices or 12V battery.
● USB 5V, Type-C, and 18V DC output for cellphone and laptop tablet GPS power generator or other 5-19V device, the solar charger is easy to use with fashionable appearance and compact structure.
Slocable foldable portable solar panels

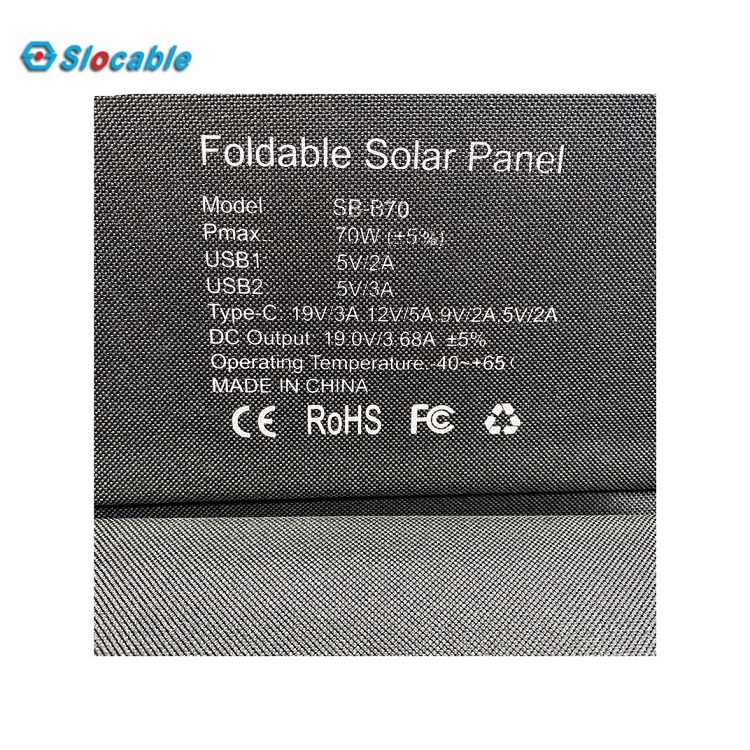

Product Parameter
| Model | SP-B20 | SP-B70 | SP-B90 | SP-B105 |
| Pmax | 20W | 70W | 90W | 105W |
| Vmp | 5V | 5V/19V | 5/19V | 5/19V |
| Imp | 2-3A | 2A/3.5A | 2A/4.5A | 2A/5A |
| Folds | 2 | 3 | 2 | 3 |
| USB output | DC 5.0V/2A | DC 5.0V/2A | DC 5.0V/2A | DC 5.0V/2A |
| DC output | DC5V/3A | DC19V/3.5A | DC19V/4.5A | DC19V/5A |
| Expanded Dimensions | 336*490*4mm | 1260*430*4mm | 1060*560*4mm | 1430*490*4mm |
| Folded Dimensions | 336*200*15mm | 350*430*35mm | 530*560*30mm | 380*490*35mm |
| Weight | 1kg/set | 2.5kg/set | 3.0kg/set | 3.5kg/set |

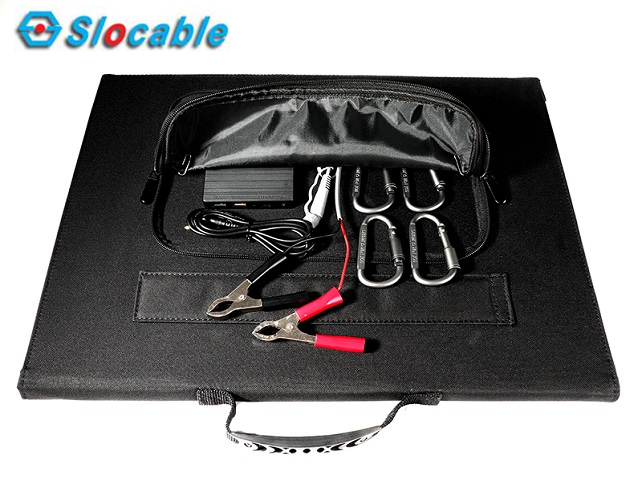

| Optional Accessories: | Carabiner Clips*4PCS, DC-DC Cable*1M, Alligator Clip Cable*1PCS,Cigarette Lighter Plug *1PCS | |||
| Operating Temperature | -40℃~+65℃ | |||

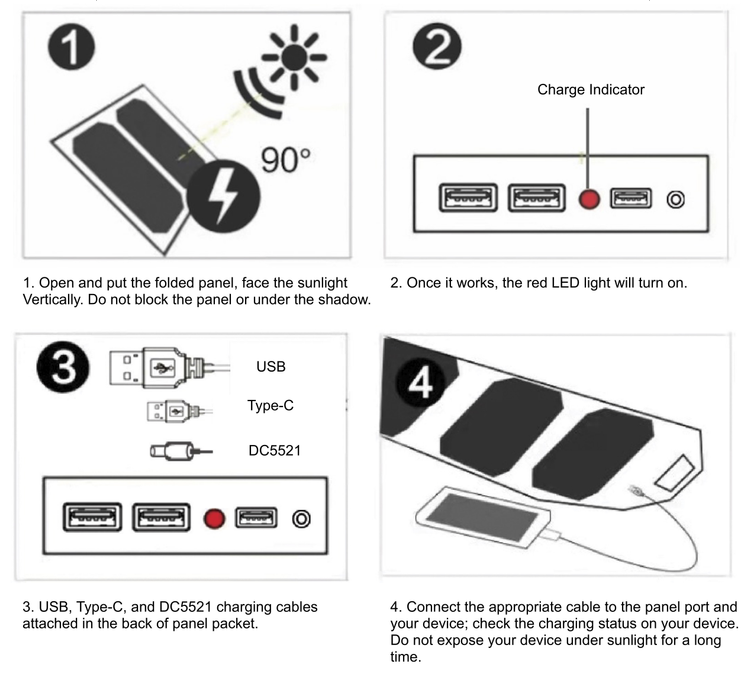

Use Direction
● USB 5V,Type-C output:
Support DP/DM bidirectional output protocols;
Support Qualcomm, Huawei, Samsung, SPRD, etc. Works for Smart phones, Tablets, and other digital appliances;
● DC 19V output
For laptop Dell, HP, Asus, Acer, Lenovo, Samsung, Square Trade, Toshiba.
For solar generators- Compatible with most solar generator, portable power station on the market.
● Alligator Clip Cable and Adapter-connectors.
Works for any cars, motorcycle, boat, marine, tractor, RV, Power sports, snowmobile 12V battery.
Note: please use the 14.5V USB to 55x21mm female connector cable to charge your 12V battery.
Above are just typical operations. With appropriate fittings, it can be stuck on the glass, hanged on the tent or similar situation;
● When connected by USB output, it can offer emergency power for digital devices like mobile phone, PAD etc.
● This product can power most mobile phone models on the market. Whereas, certain phone models may not be charged properly due to mobile phone charging circuit design.
Detailed Images

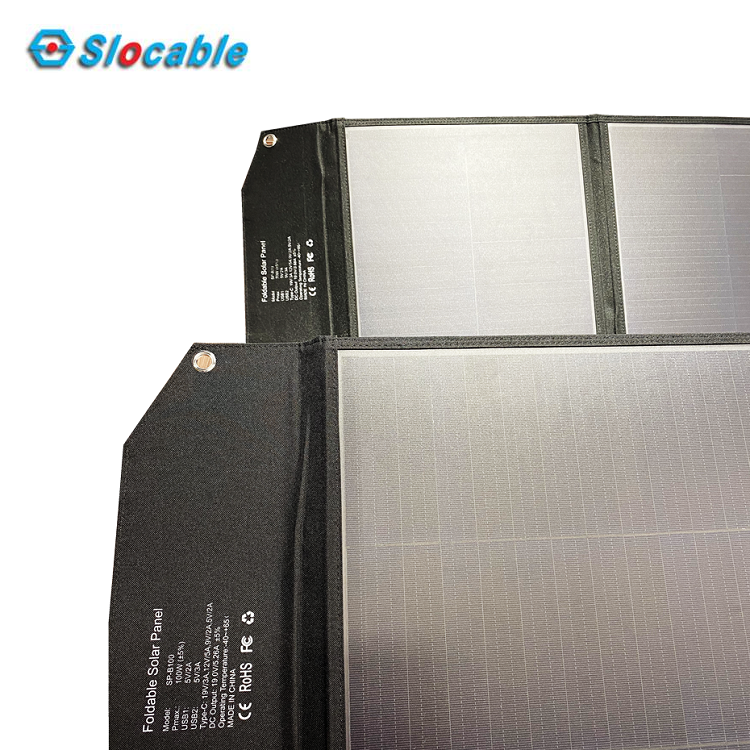

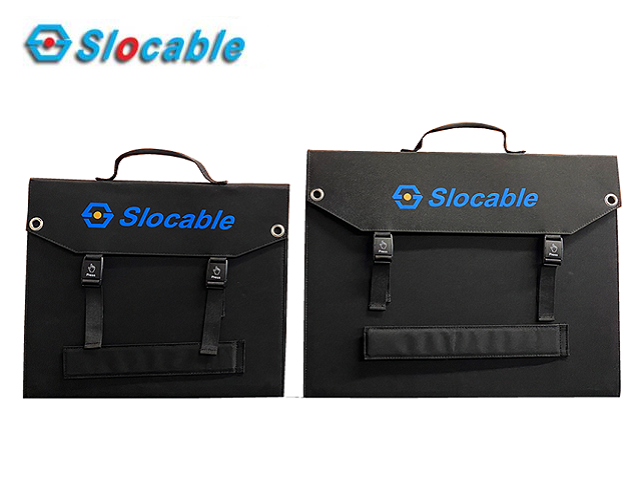

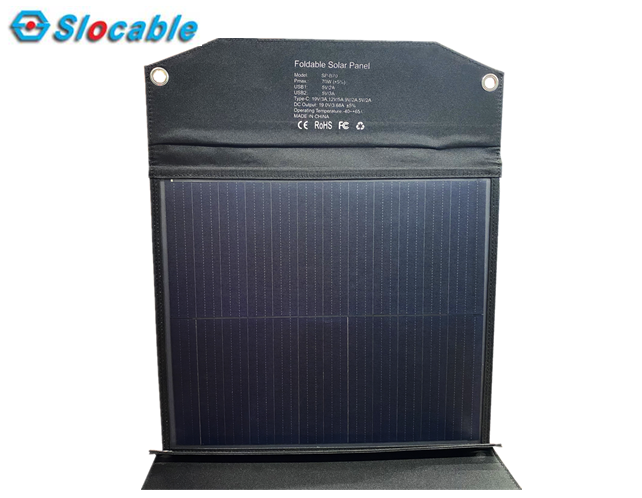

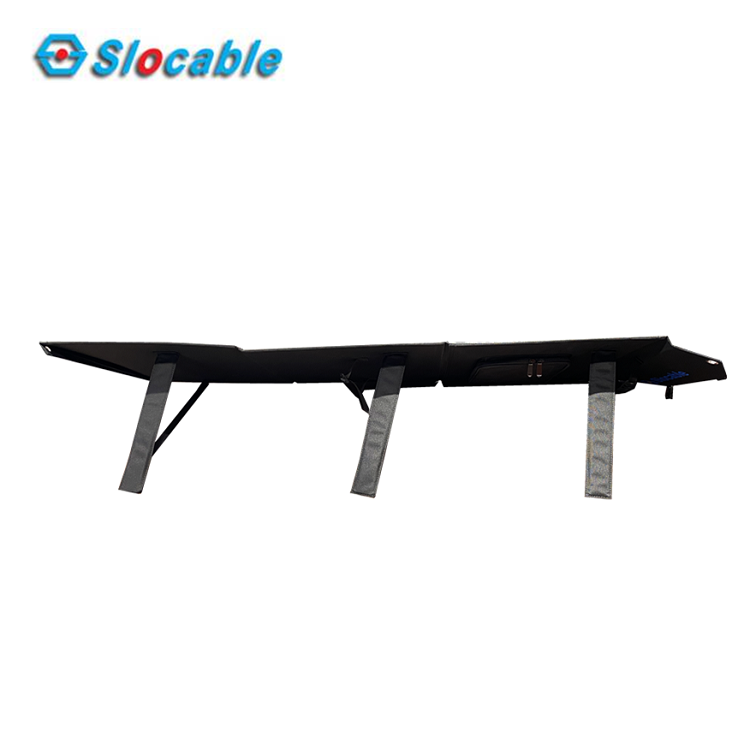

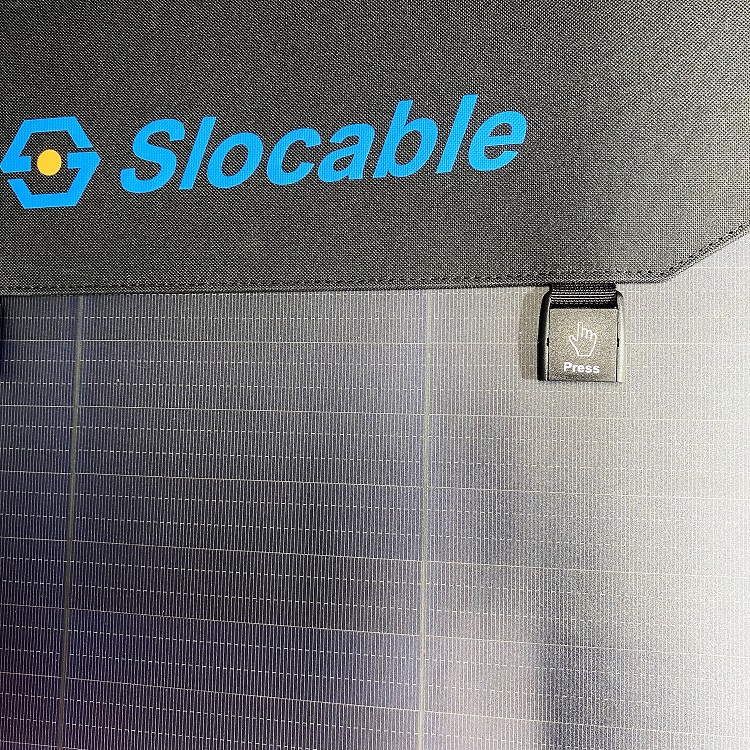

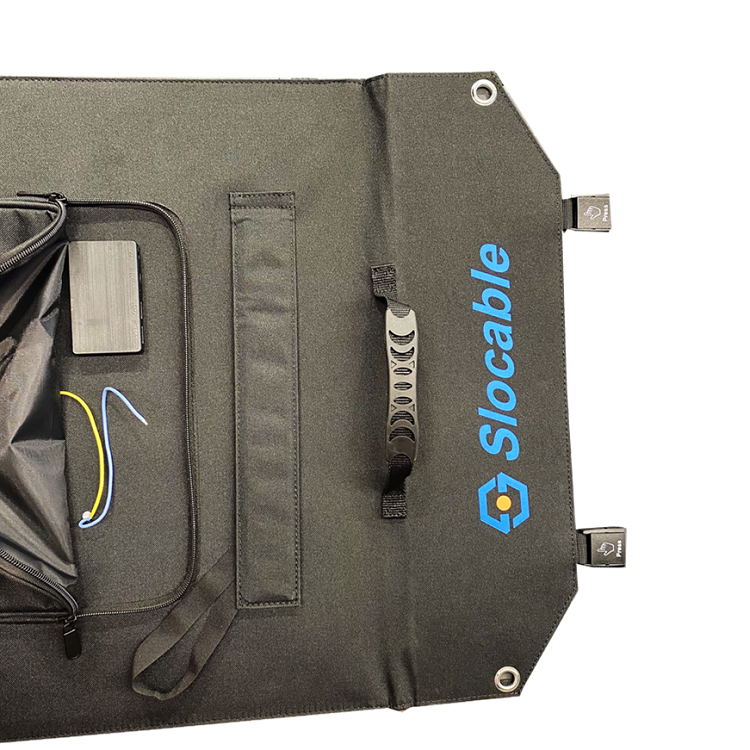

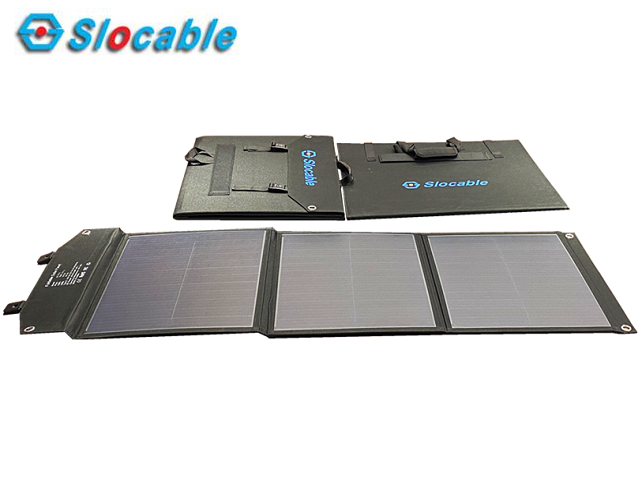

Pictures of portable solar panels

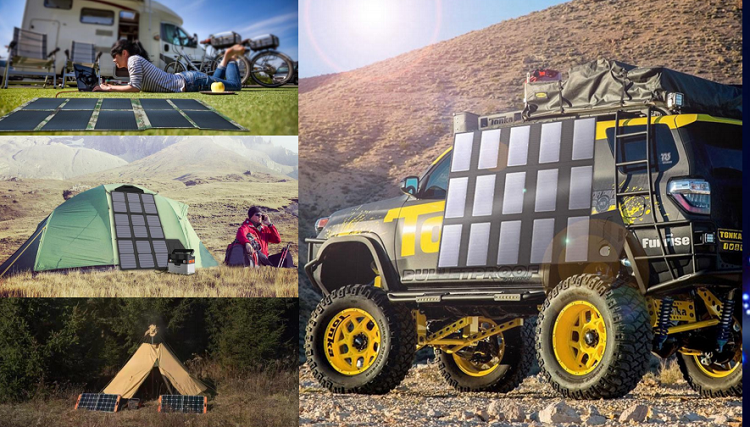

Application
