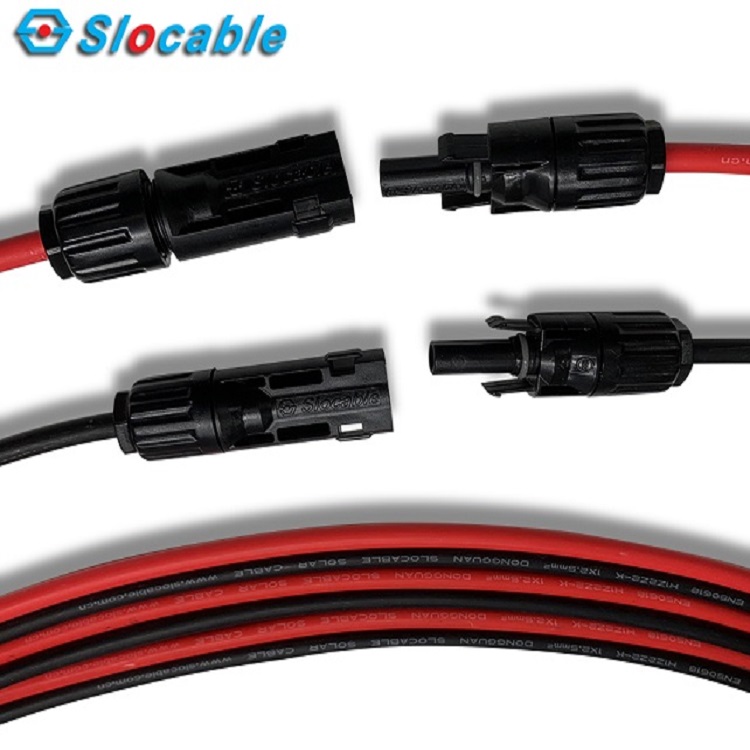

4mm Solar Panel Cable
- Product Size: 1x2.5mm,1x4mm,1x6mm,1x10mm,1x16mm
- Product Material: Tinned Copper,XLPE Insulation
Solar DC Cable is specialized used in Solar PV system between the solar panel and Inverter or controller box. PVC electric wires can be installed in conduit, in cable trunking and in cable ducting. Or where there is deemed the little risk of mechanical damage these cables can be clipped direct, on cable tray, embedded or in free air.
Slocable Personalized Products China 4mm solar panel cable
Product Description
·Dual wall insulation.Electron beam cross-linked
·Excellent resistance to U.V, oil, greases, oxygen and ozone
·Excellent resistance to abrasion ·Halogen free, flame retardant, low toxicity
·Excellent flexibility and stripping performance
·High Voltage and Current carrying capacity
·TUV, CE, ISO approved
3) Jacket: XLPE (XLPO),Halogen-free, UV resistant.
2) Insulation: XLPE (XLPO),Halogen-free .
1) Conductor: 99.99% Stand Tinned Copper Wire
Technical Data of Solar Cable
| Rated Voltage: | 1000V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | XLPE (XLPO) |
| Contact Material: | 99.7% Copper, Tin plated |
| Character: | UV Resistance, Halogen-free |
| Ambient Temperature: | -40℃~+90℃ |
| Flame Class : | EN 50625 / UL 1571 |
| Color: | Black / Red / Blue |
dc cables for solar panels
Advantages
99.99% Copper | Dual Wall Insulation | UV & Flame Resistance
Low Resistance | Low Eccentricity Ratio | Excellent Flexibility
1. We have 12 years manufacturing experience.Exporting solar products all over the world.
2. High quality, you can use our products in confidence.
3. Although our price is not expensive, we will not cut corners. We insist to use the best and new raw material to make sure the quality.
4. The warranty we promise is 5years, and the working life is reaching 25years.
Solar PV Cable Specification
| Name : | Single Core Solar Cable |
| Standard : | PV1-F TUV , CE , ISO |
| Size : | 1×2.5mm2 / 1x4mm2 / 1x6mm2 / 1x10mm2 / 1x16mm2 |
| Conductor : | 99.99% Strand Tinned Copper Wire |
| Insulation : | XLPE (XLPO) |
| Jacket : | XLPE (XLPO) |
| Color : | Black / Red / Blue |
| Temperature Range : | -40℃ ~ 90℃ (Max. +120℃ for conductor) |
| Outer Diameter : | 5.4mm / 6.2mm / 7.1mm / 7.8mm / 10.2mm |
| Rated Current : | 30A / 50A / 70A / 90A / 132A |
| Rated Voltage : | AC 0.6 / 1.0 KV ; DC 1.0 / 1.8 KV |
Attaining consumer satisfaction is our firm’s purpose for good. We’ll make wonderful efforts to produce new and top-quality merchandise, meet up with your special necessities and supply you with pre-sale, on-sale and after-sale products and services for Personalized Products China 4mm solar panel cable, Should additional details be required, you should get in touch with us anytime!
Attaining consumer satisfaction is our firm’s purpose for good. We’ll make wonderful efforts to produce new and top-quality merchandise, meet up with your special necessities and supply you with pre-sale, on-sale and after-sale products and services for China Solar PV Cable, Photovoltaic Wire, We set a strict quality control system. We have a return and exchange policy, and you can exchange within 7 days after receiving the wigs if it is in the new station and we service repairing free for our products. Please feel free to contact us for further information if you have any questions. We are glad to work for every client.
If any inquiry, please feel free to contact us.
-
