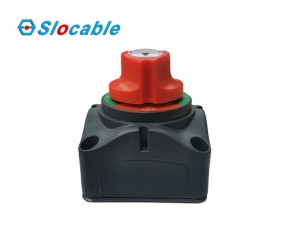

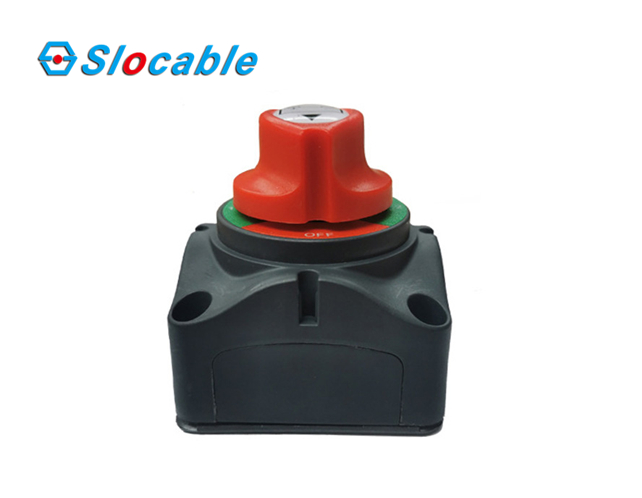

RV Trailer Dual Battery Master Disconnect Switch 12-48V for Car

Selector: 1-2-Both-Off
Voltage Rating: 12-48Volts DC
Mounting: Recessed or Surface

Slocable RV Dual Battery Disconnect Switch is mainly made of ABS plastic shell, which is durable and safe to use. The back cover can prevent the terminal from short-circuiting. It is equipped with 4 sets of bolts. It is widely used in the isolation and protection of the electrical system of the DC 12-48V system. This RV Battery Disconnect Switch can be independent or locked together with other switches. Its purpose is to eliminate any power consumption of the battery when the vehicle or ship is not in use, and to disconnect the battery safely.

Technical Data

Continuous Rating	200Amps DC
Intermittent Rating	300Amps DC
Cranking Rating	1000Amps DC
Termination Stud Size	3 x 5/16″ (8 mm)
Dimensions	69 x 69 x75H mm

Product Description

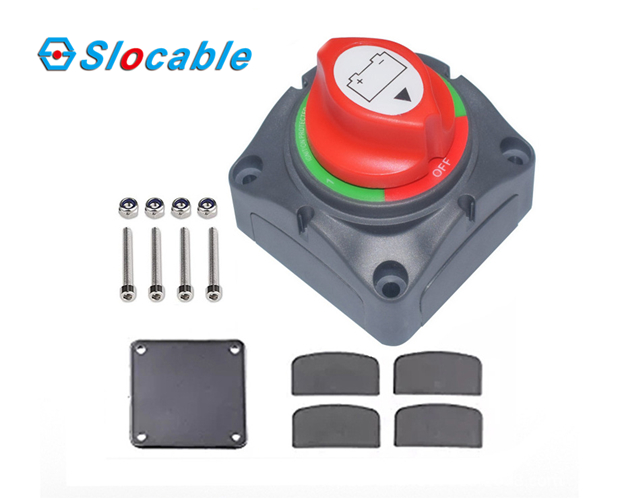

[Heavy Duty]: ABS plastic housing, durably made for safety use, rear cover insulates terminals against any short of circuits, equipped with 4 sets of bolts. It’s designed for 2 batteries, can switch to battery 1 / battery 2 separately or both and off together.
[Flame-retardant nylon shell]: The shell is made of sturdy flame-retardant nylon, resistant to high temperatures and not afraid of falling, durable, and protects the power supply and prevents leakage.

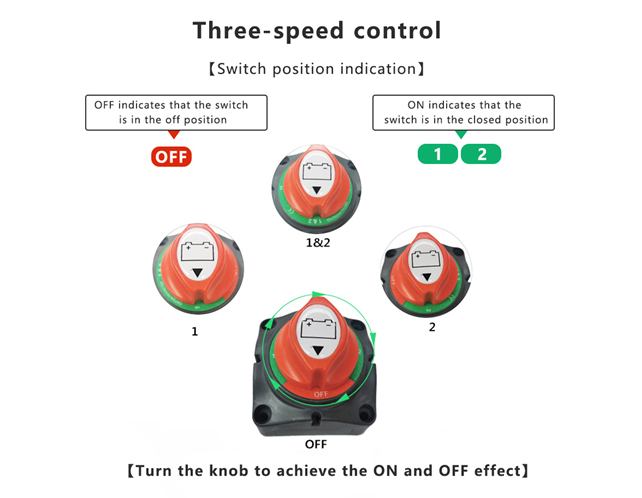

[Easy to Operate]:1-2-Both-Off 4 positions, 200A continuous at DC 12V, 300A intermittent at DC 12V, 1000 A momentary at DC 12V. The switch position is clearly indicated, and the effect of opening and closing can be achieved by turning the knob.
[Widely Use]: High-quality battery isolation switches are very easy to install, widely used for cars, marine boats, RV, campers, travel trailers, trucks, battery banks and other devices.
[Compatible]: used for DC 12-48 V system isolation and protection of electrical systems, can be independent or locked together with other switches.

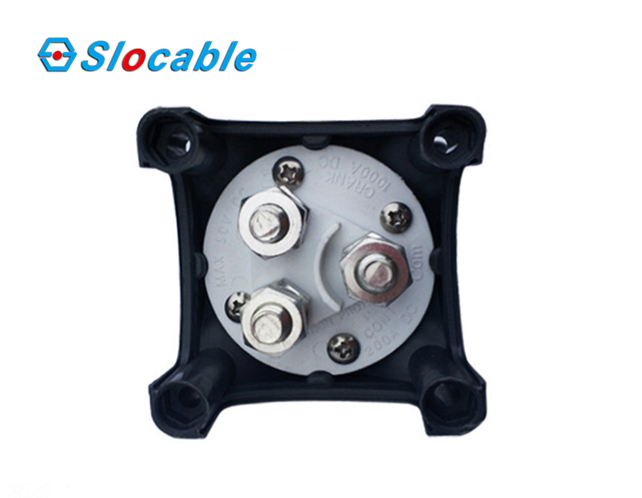

[Copper Terminal Stud Size]：3 x 5/16″ (8 mm), very easy to install, Tin-plated copper studs and nuts ignition protected.
[Screw brass tinned]: Brass has excellent electrical conductivity, and has stronger oxidation and corrosion resistance after tinning.
