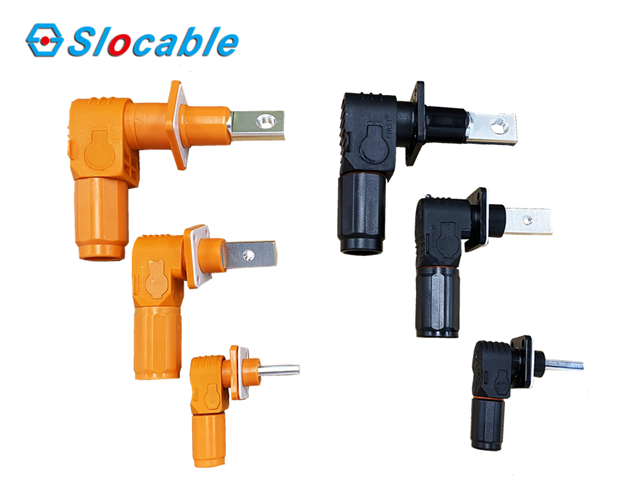

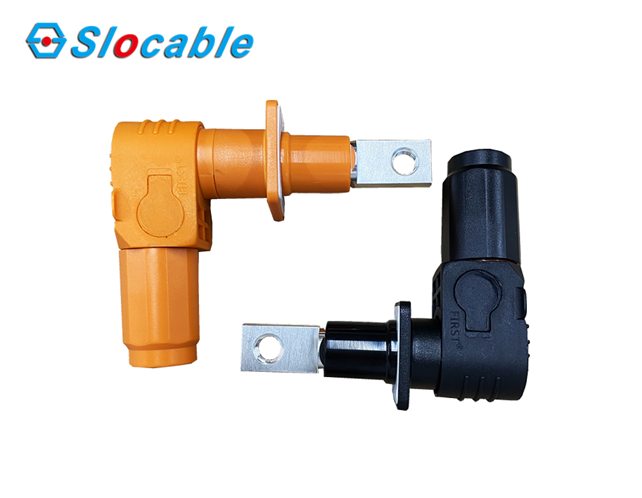

Slocable Energy Storage Connector for Energy Storage System

Current: 120A~300Amax
Voltage: 1500V

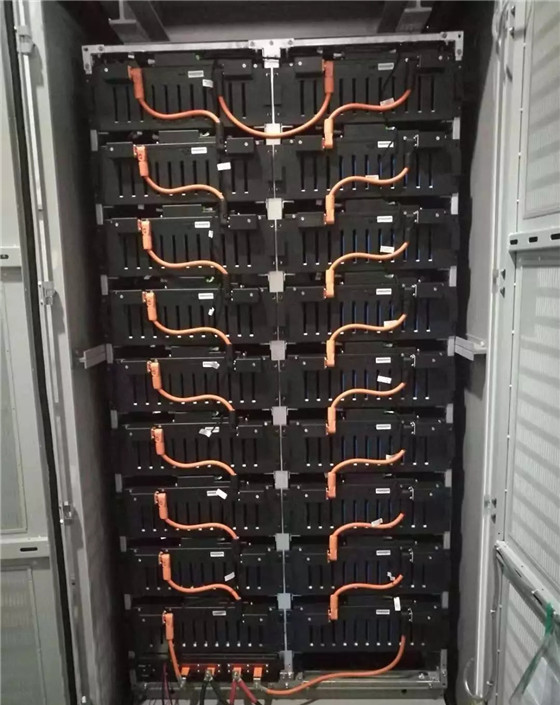

Application: Energy Storage System/New Energy Electric Vehicle

Slocable Energy Storage Connectors meet customers’ important technical indicators such as plugging force, insulation resistance, dielectric strength, and temperature rise through professional CAE simulation design, and are widely used in energy storage, new energy vehicles and other industries.

Technical Data

Product name:	Energy storage connector	Shielding:	Non-Shielding
Rated current:	120A/200A/300A	Insertion force:	Max. 35N
Rated Voltage:	1500V DC	Withdrawal force:	Min. 8.5N
Test voltage:	5kV	Ambient temperature range:	-40℃~+125℃
Contact resistance:	≤0.5mΩ	Insulation resistance:	≥500MΩ
Waterproof protection:	IP67	Connecting system:	Crimping connection
Overvoltage degree:	CATIII/2	Suitable cable cross-section:	16/25/35/50/70/90/120mm2

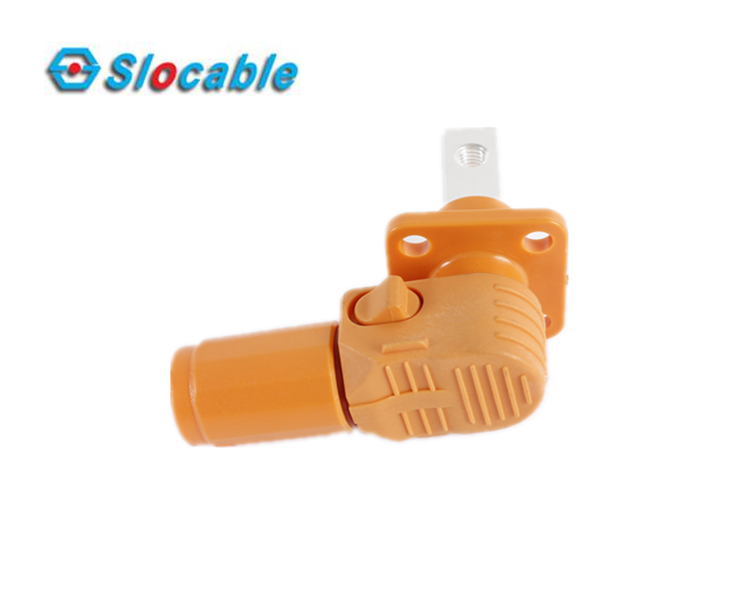

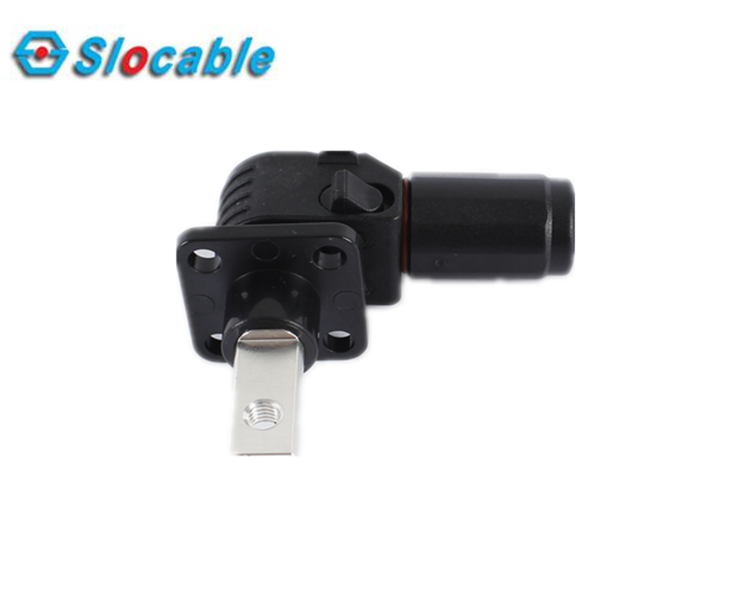

Product Features

1. Small size, fast and convenient connection, using right-angle structure to save wiring space;
2. It has the function of preventing misplugging of positive and negative poles, preventing the risk of short circuits and arcing caused by misplugging. At the same time, it can be rotated 360°, which is convenient for multi-directional installation and outlet;
3. It adopts a built-in connection and locking mechanism, which can be operated by one hand and can be automatically locked;
4. Possess excellent protection against electric shock.

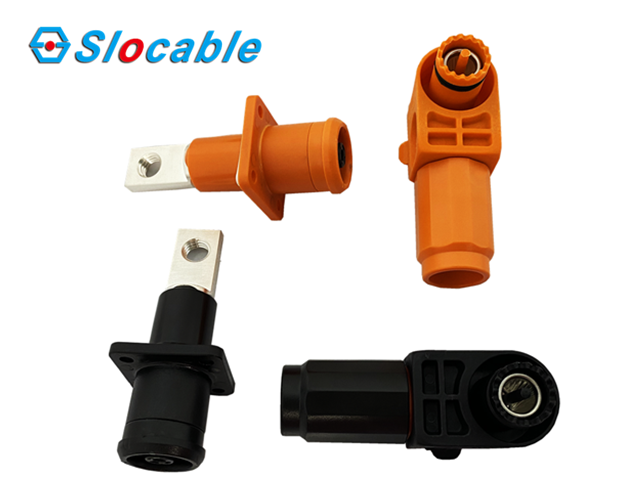

Battery Electrode Energy Storage Connector for Free Wiring

Devices and cable connectors with polarity reversal protection are very suitable for energy storage systems. These energy storage connectors use rotatable design, touch protection and mechanical coding to provide maximum flexibility and safety when connecting battery poles.

· Can be rotated 360°: ideal for flexible cable outlets
· Error-free insertion: battery connection prevents polarity reversal by mechanical coding
· Safe installation: even when not plugged in, the battery terminals are protected from touch
· Multiple color versions: easy to identify battery poles
