Weather Resistant Rubber Flex Cable Slocable

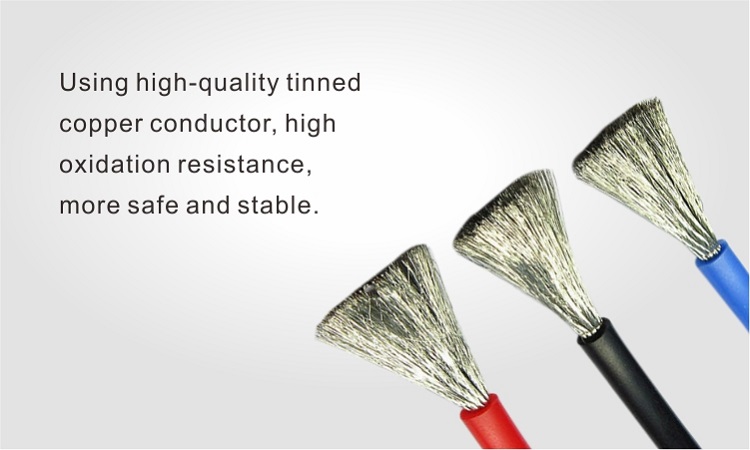

Conductor Material: Tinned Copper
Insulation Material: Rubber
Rated temperature: -40~+125℃

Rubber cable is also known as rubber sheathed cable or rubber power cord. Rubber cable is a kind of cable extruded from double insulation material. The conductor is usually made of copper material, and in most cases, pure copper-stranded wire is used as the conductor.

Characteristics of Rubber Cables

1. The long-term allowable working temperature of the cable should not exceed 105°C.
2. The cable has a certain degree of weather resistance and certain oil resistance, and is suitable for outdoor or occasions where it is exposed to oil.
3. The cable is flame-retardant and meets the requirements of GB/T18380.1-2001 for single vertical burning.
4. When the cable is at 20℃, the insulation resistance between the insulated cores is above 50MΩKM.
5. Cables for electrical equipment and tools can withstand large mechanical external forces.
Product characteristics: rubber is very soft, good elasticity, cold resistance, high-temperature resistance, oil resistance, ultraviolet resistance, good flexibility, high strength, not comparable to ordinary plastic threads.

Technical Data

Conductor: 99.99% copper, tinned wire	UV resistance: 2 PfG 2963/06.19 Annex F
Insulation material: Rubber	High voltage and High current
Double walls insulation	Temperature range: -40℃~125℃
Halogen-free material: EN50525-1 Annex B	Color: Black / Grey / Orange
Flame test according to: DIN EN 50265-2-1 / 1571(VW-1)	Damp heat test: EN 60068-2-78
Flame test: EN60332-1-2	Smoke density: EN61034-2
Battery acid: ISO 19642-2 5.4.11	Acid and alkali resistance test: EN 60811-404
