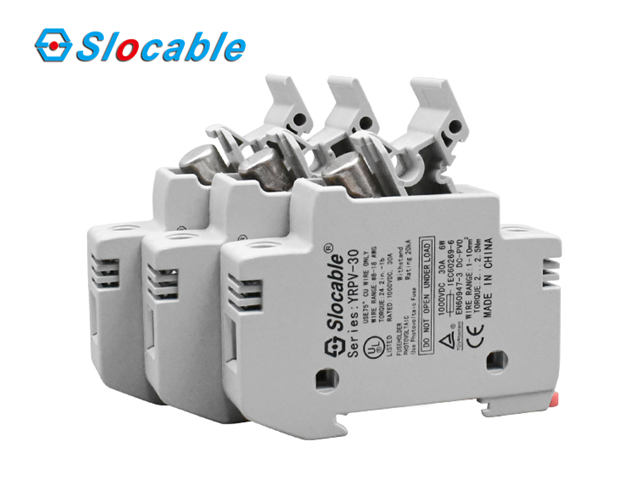

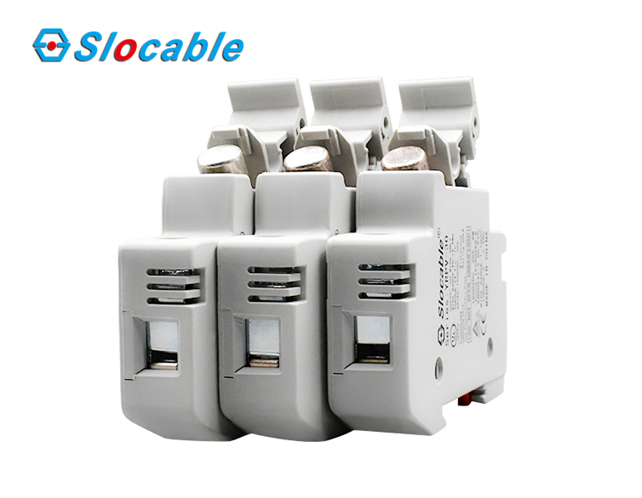

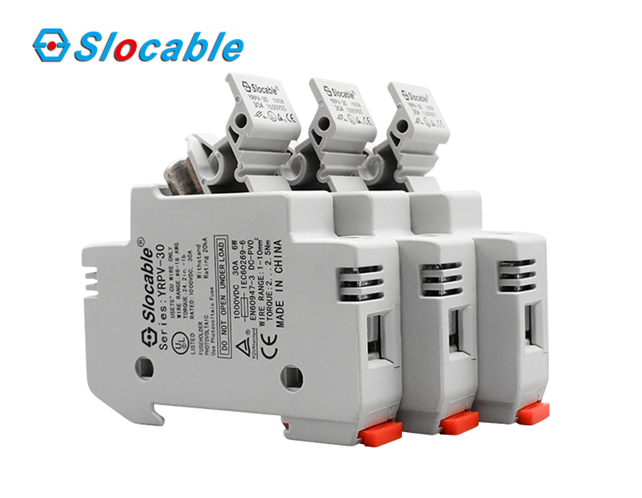

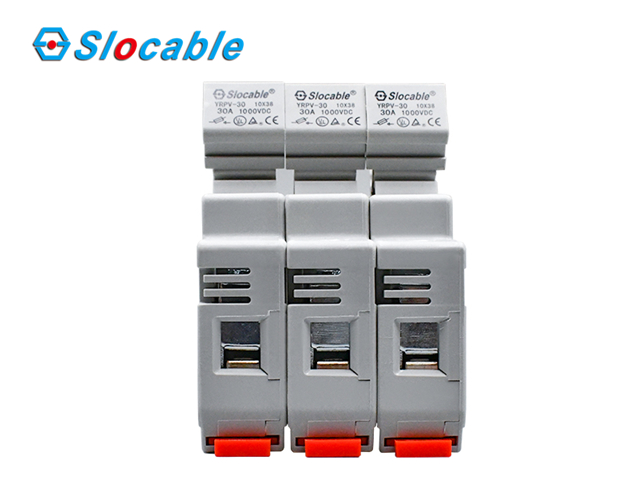

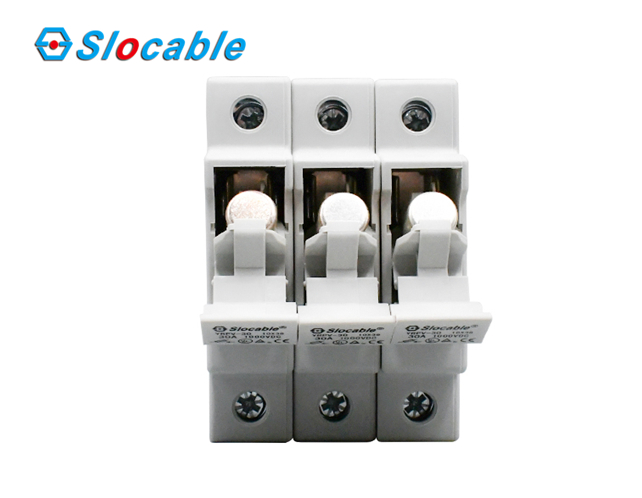

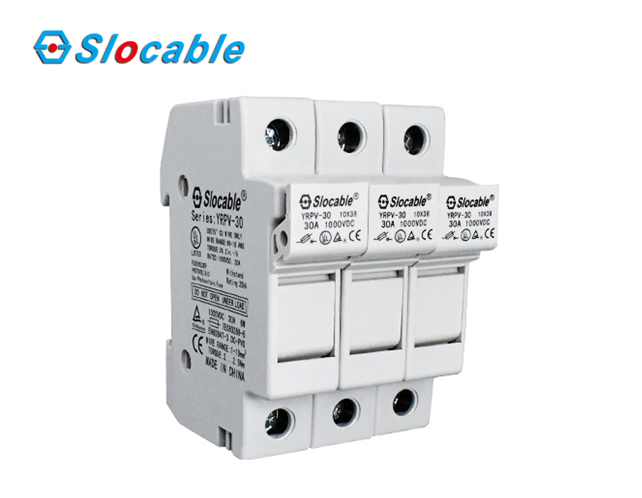

3 Phase Solar Panel Fuse Holder for PV System 1000V 1500V
- Product Size: 10x38mm
- Numbers of Poles: 3 Pole
- Fuse Current Rating: 1-30A
- LED Indicator Light: Can be Chosen
- Load Wire Size: 14 to 6 AWG Solid/Stranded (Copper)
The 3 Pole Solar Panel Fuse Holder is specially designed to protect photovoltaic strings. When the solar panel or inverter causes an overload or short circuit, the DC fuse box will trip immediately to protect the photovoltaic panel. It can also be used to protect other electrical components in the DC circuit.

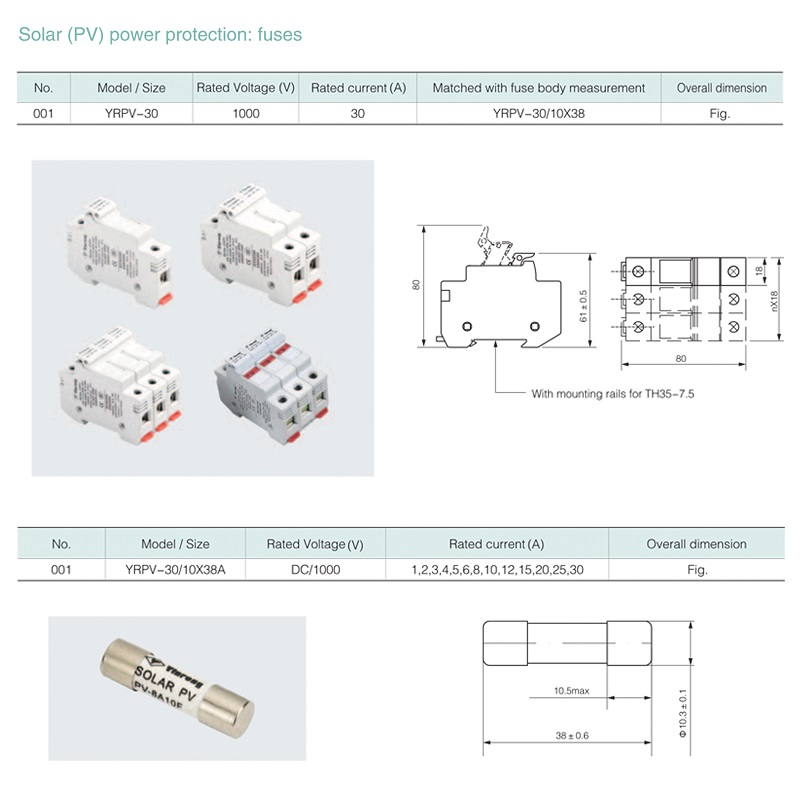

Technical Data of 1000V DC Fuse

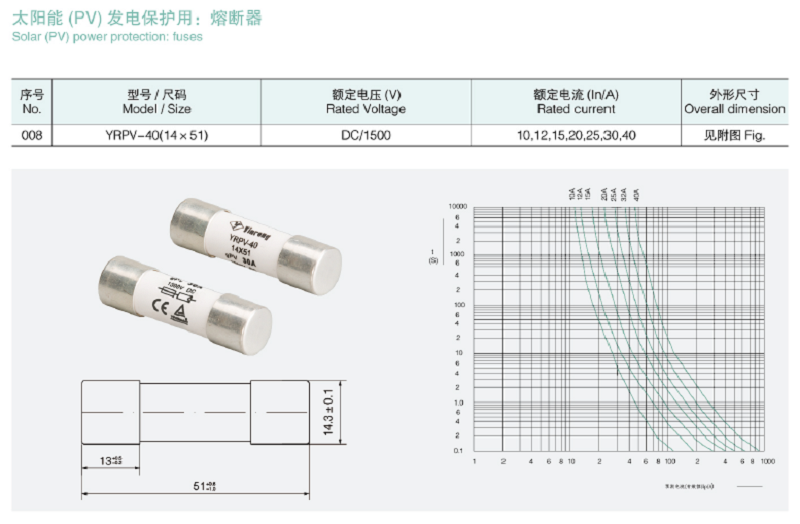

Technical Data of 1500V DC Fuse
