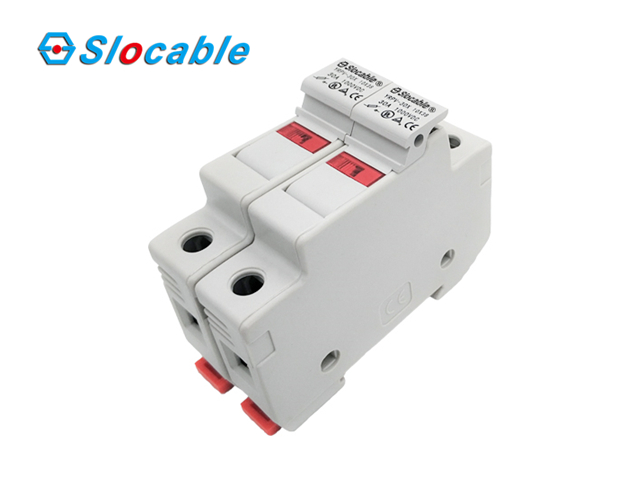

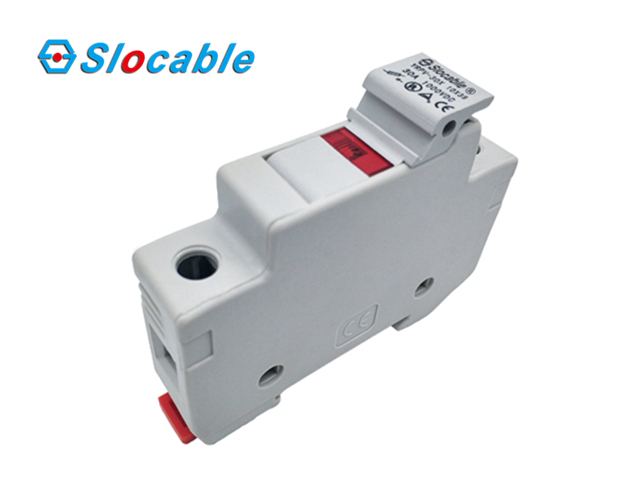

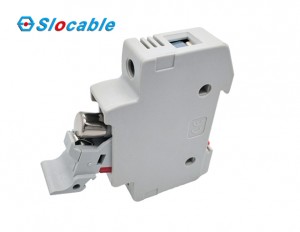

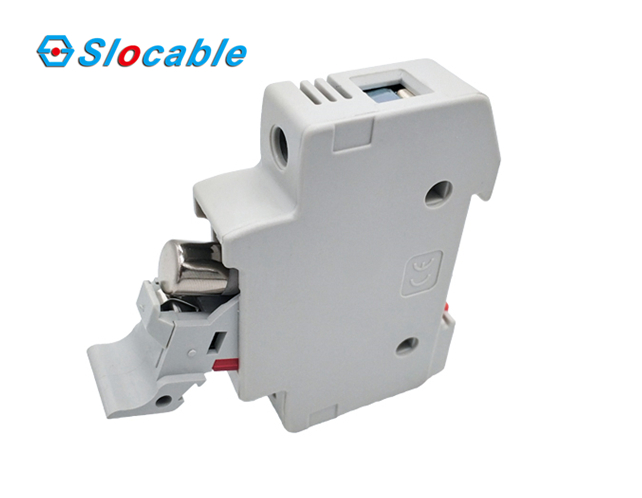

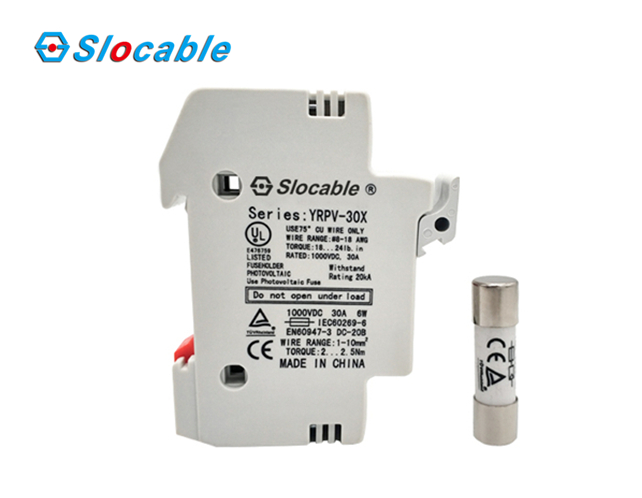

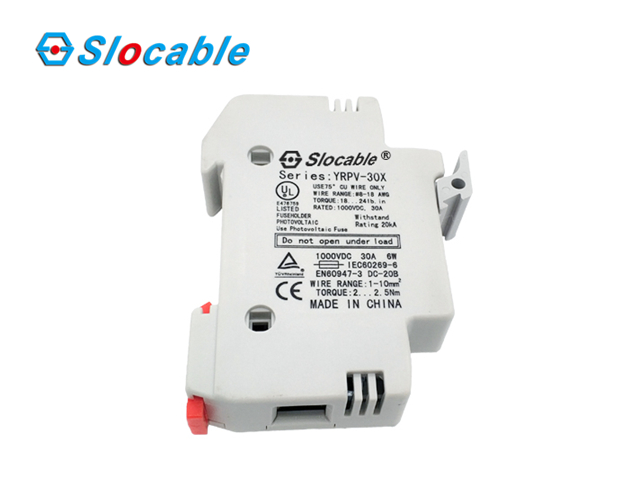

Slocable Solar PV Fuse Holder with LED Indicator Light 1000V DC
- Rated Voltage: 1000V DC
- Product Size: 10x38mm, 1-30A
- Product Material: Ceramic, Copper
Slocable Solar PV Fuse Holder are mainly applied in PV array junction boxes or directly in central inverters. Fuse-bases offer space-saving protection when applied in central inverters or PV array junction boxes. DC fuse holder is specifically designed for protecting photovoltaic strings. These fuse-links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current multi-array fault).
Technical Data
| Rated Current: | 1~30A(According to the fuse) |
| Rated Voltage: | 1000V DC |
| Certificate: | TUV , IEC/EN 60269.6 |
| Material: | Ceramic, Copper |
| Fuse Size: | 10x38mm |
| Fuse Type: | Cartridge |
| Breaking Capacity: | 33kA, high |
| Color: | White |

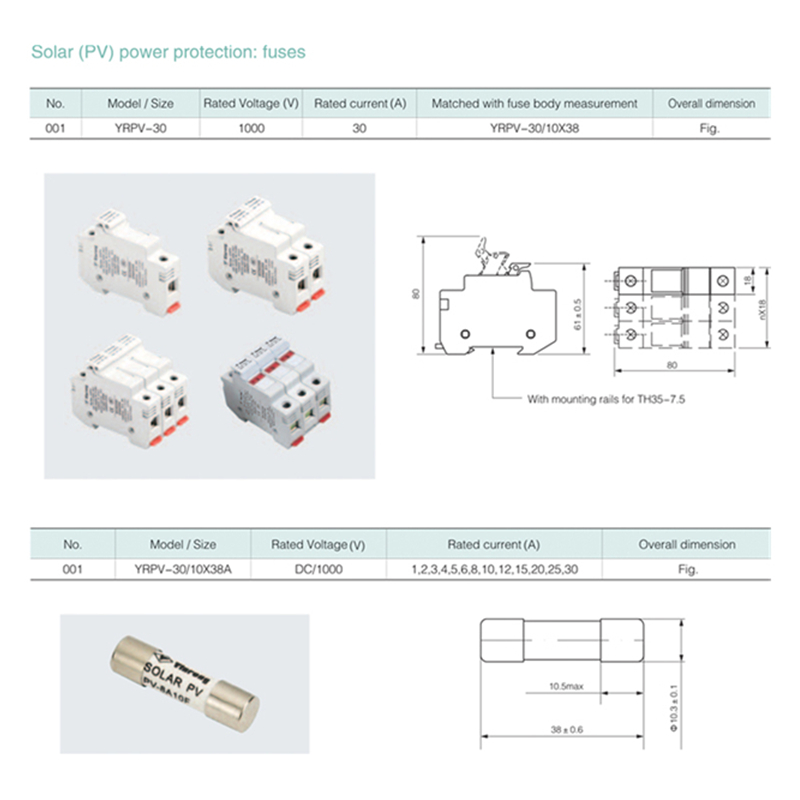

Product Description

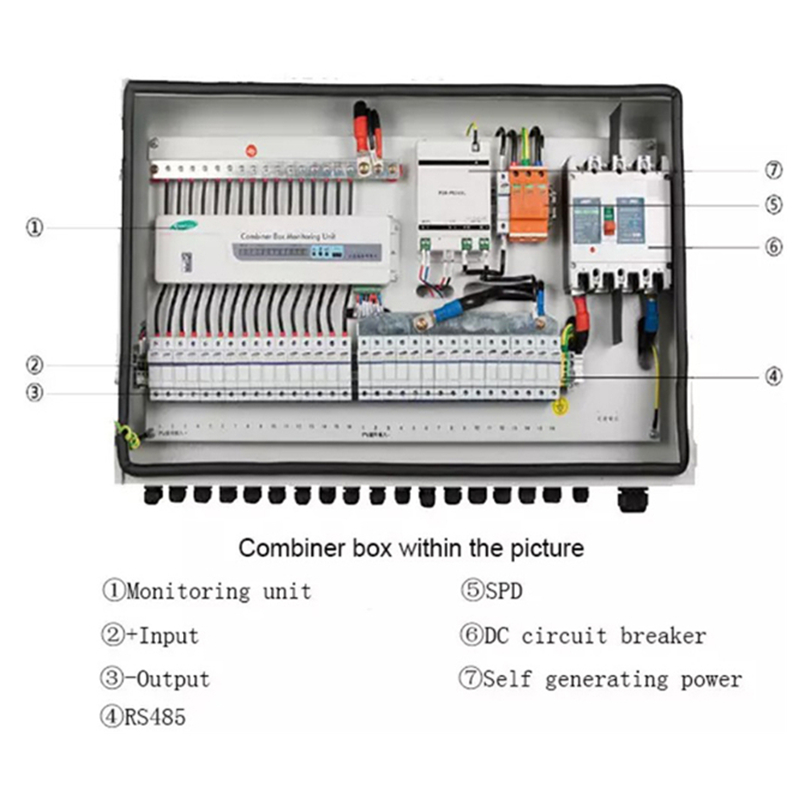

Application
