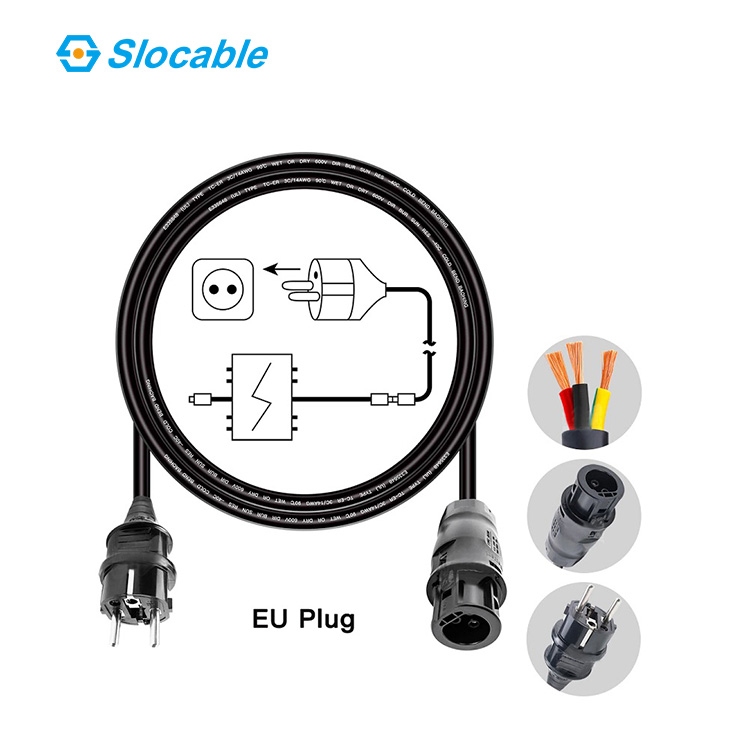

Mains Connection Cable Betteri BC01 to EU Schuko Plug for AC Connection of the Micro Inverter

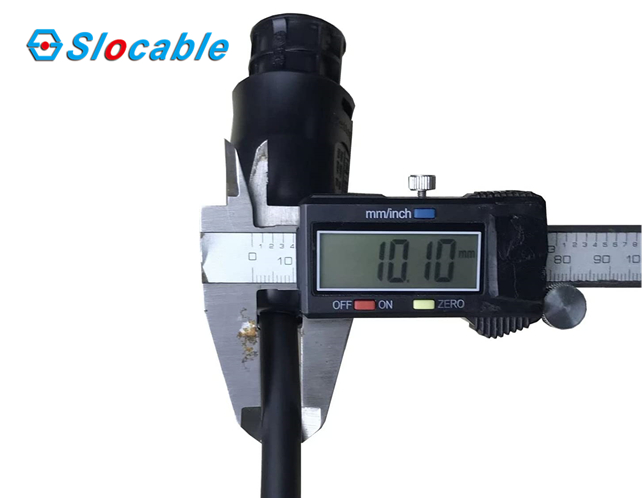

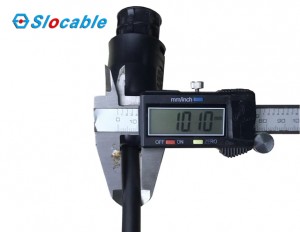

- Cable Diameter: 10mm
- Temperature Range: -30°C ~ +60°C
- Application: Photovoltaic System Micro Inverter
Betteri BC01 PV 3 Pin AC Connector to EU Schuko Plug Mains Connection Cable for AC connection of the micro inverter to a Schuko connector. They are oil, UV and ozone resistant and are suitable for temperature ranges from -30°C to +60°C.
Product Description

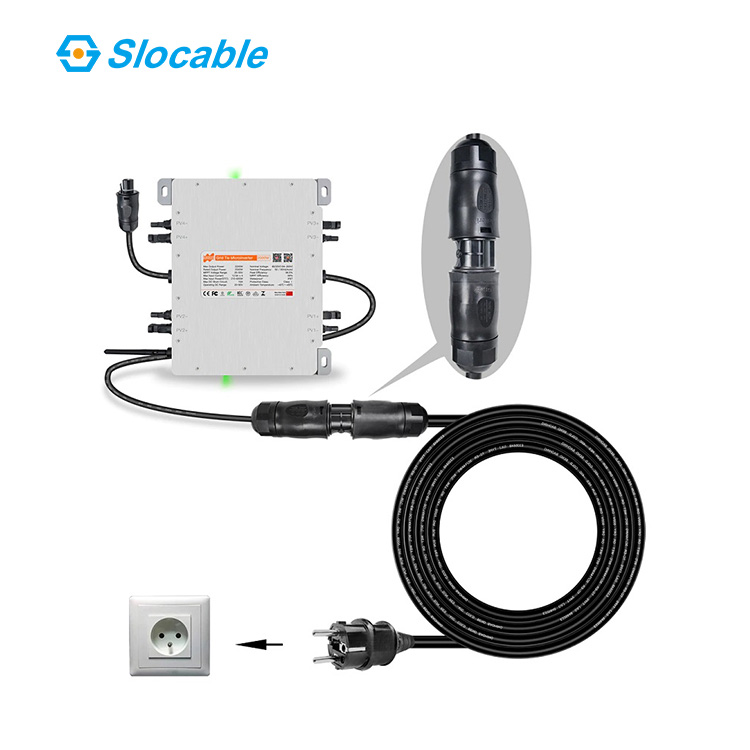

1. Mains connection cable, for AC connection of the module inverter to a Schuko socket. Cable Diameter: 10mm.

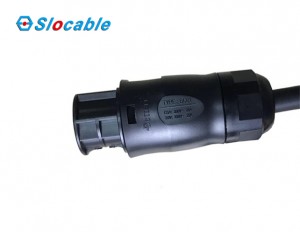

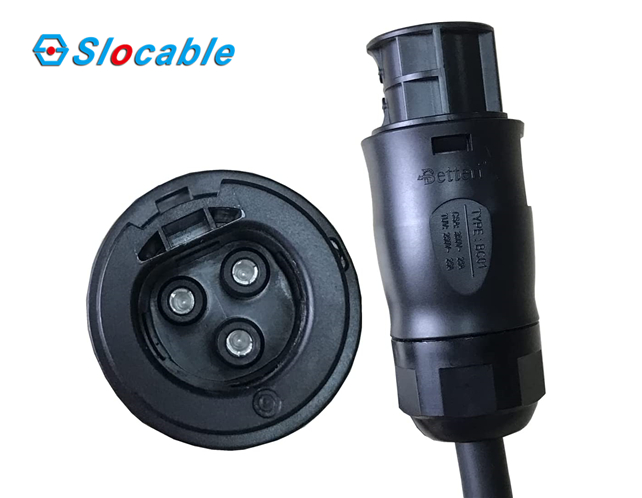

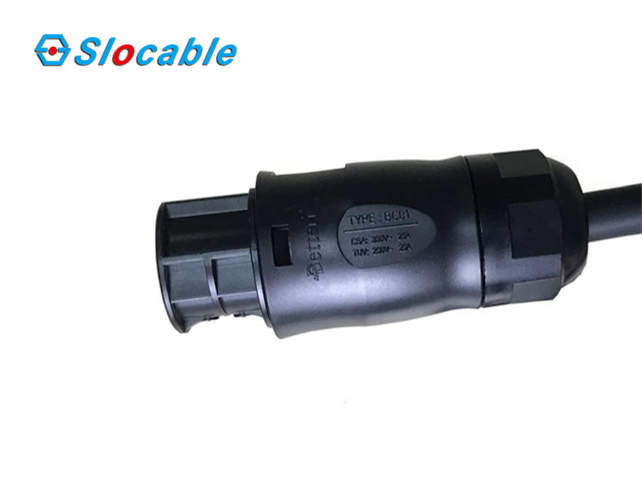

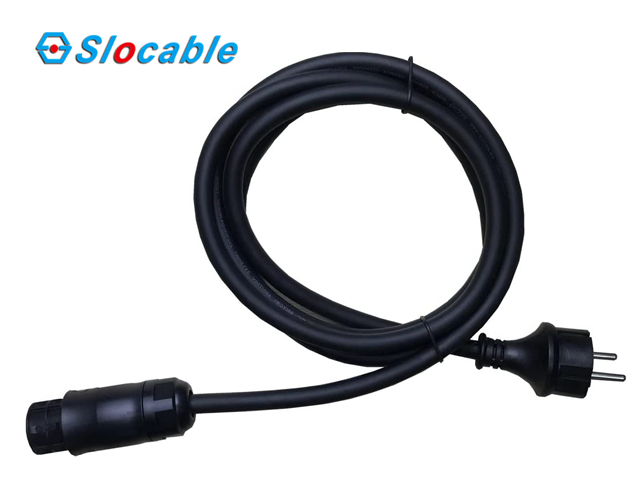

2. On one side with mounted Betteri BC01 (female) power connection socket, the other side with Schuko plug.
3. The H07RN-F 3 x 1.5 mm² rubber hose line is approved according to VDE 0282 for use under heavy use, in dry and damp rooms as well as outdoors and in use water from -30 to 60 °C.
4. Suitable for single phase micro inverters with Betteri connector, compatible with AP systems, Hoymiles, Deye, Envertech, Huayu, Bosswerk or TSUN-TSOL.
Product Details
Product Features
Up to max 3500 watts, compatible with micro-inverters.

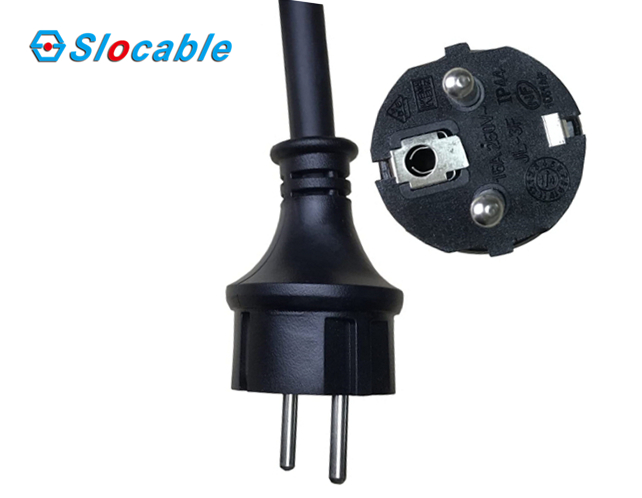

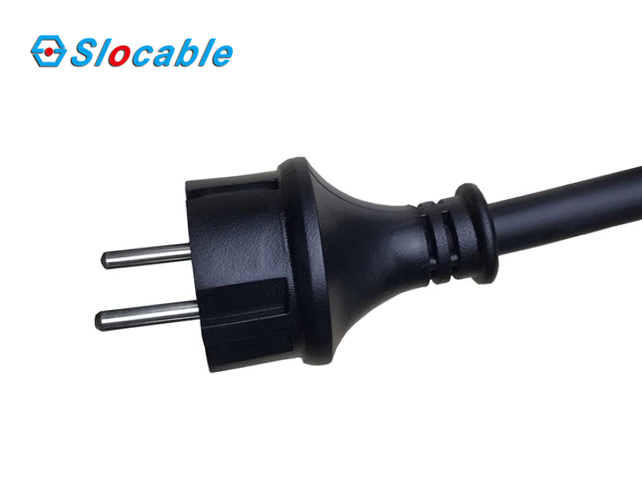

Betteri BC01 to Schuko (CEE 7/7).
3 x 1.5 mm² H07RN-F rubber hose cable (2 pin + PE).
Strong anti-aging and UV resistance.
Precautions
1. For connection according to DGS safety standard DGS 0001:2019-10.
2. The feed via Schuko plug device (CEE 7/7) is only permitted in Germany if the module inverter meets the DGS safety standard DGS 0001:2019-10.
3. Always connect to a permanently installed socket! Never connect to multiple sockets!
Connections
