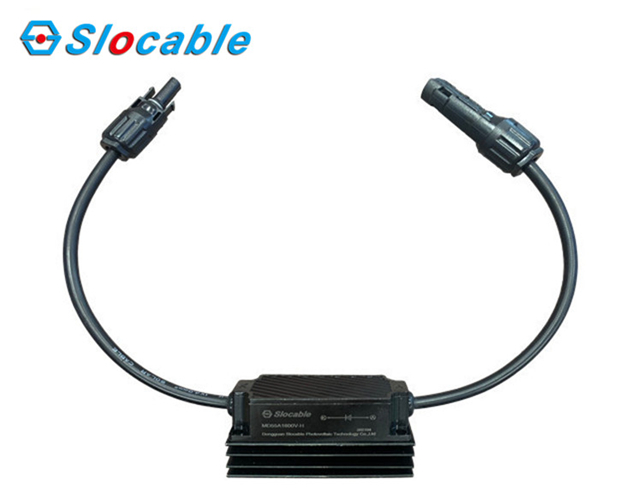

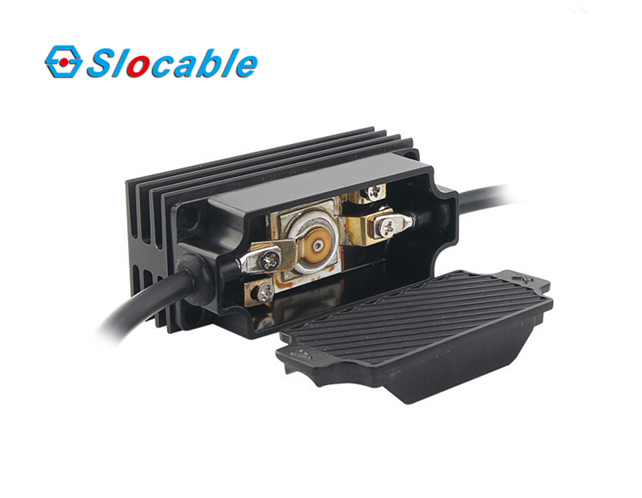

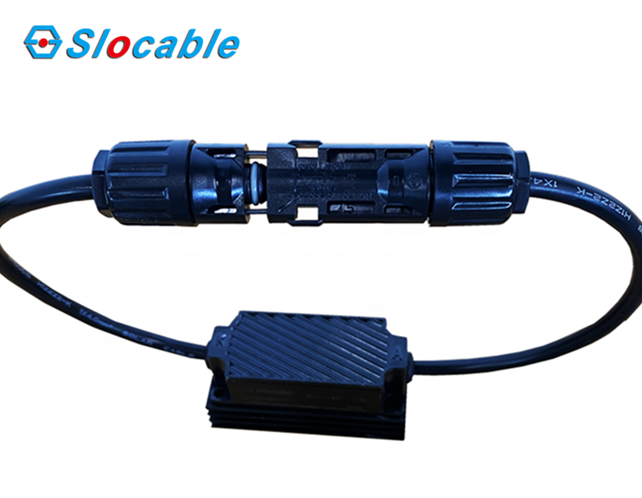

Slocable Anti-Reverse Diode Connector 55A 2000V

Diode Type: Anti-Reverse Diode
Rated Current: 55A
Certificate: CE, ROHS

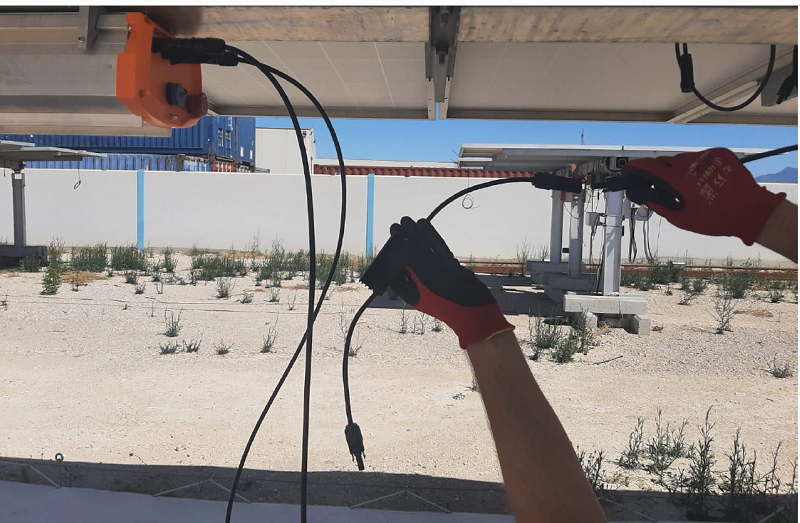

One of the functions of the anti-reverse diode connector is to prevent the current of the battery from the solar cell module or the square array from being reversed to the module or the square array when it is not generating electricity, which not only consumes energy, but also causes the module or the square array to heat up or even be damaged; The second function is to prevent the current flow between the branches of the square array in the battery array.

Product Features

· The chip is electrically insulated from the bottom board, and 3100V AC is insulated.
· Adopt glass passivation chip welding, excellent temperature characteristics and power cycle ability.
· Small size and light weight.
· The key components are made of silicon carbide material, which consumes more than 15% less power than ordinary diodes.
· Comply with ROHS standards.
· Passed CE certification.

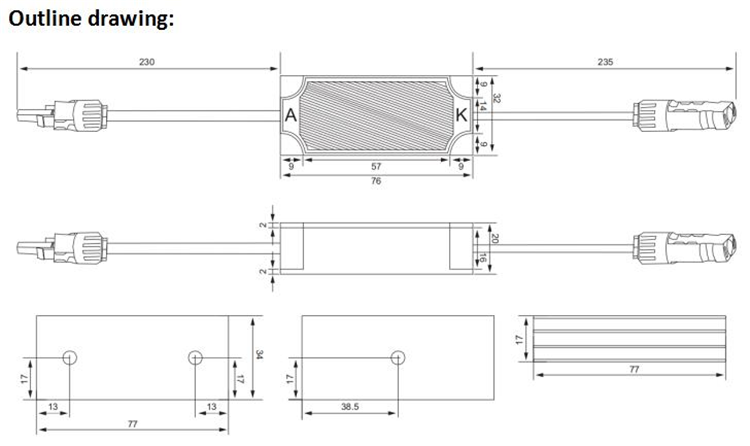

Product Details

Parameter Description of the Anti-Reverse Diode

Symbol	Parameter	Test Condition	Temp.	Value		Unit
Symbol	Parameter	Test Condition	Temp.	Min	Max	Unit
IF(AV)	Average forward current	180° half-sinusoid，50HZ Single heat dissipation，Tc=85	160		55	A
IF(RSM)	RMS Current		160		85	A
VRRM	Repetitive peak reverse voltage	VRRM tp=10msVRSM=VRRM+200V	160	600	1800	V
IRRM	Repetitive peak reverse current	VRM=VRRM	160		3	mA
IFSM	Surge forward current	10m width，half-sinusoidVR=0.6VRRM	160		2.3	KA
I2t	Maximum rated value I2t	10m width，half-sinusoidVR=0.6VRRM	160		26.5	103a2s
VFM	Peak forward voltage drop	IFM=170A	25	0.78	0.82	V
Rth（j-c）	Thermal resistant（junction to case）	180° half-sinusoid，positive heat dissipation			0.47	℃/W
Rth(c-h)	Thermal resistant（case to heatsink）	180° half-sinusoid，positive heat dissipation			0.2	℃/W
Viso	Insulation Voltage	50Hz，R.M.S,t=1min,Iiso:1Ma(max)		3100		V
Tstq	Storage temperature			-40	125	℃
