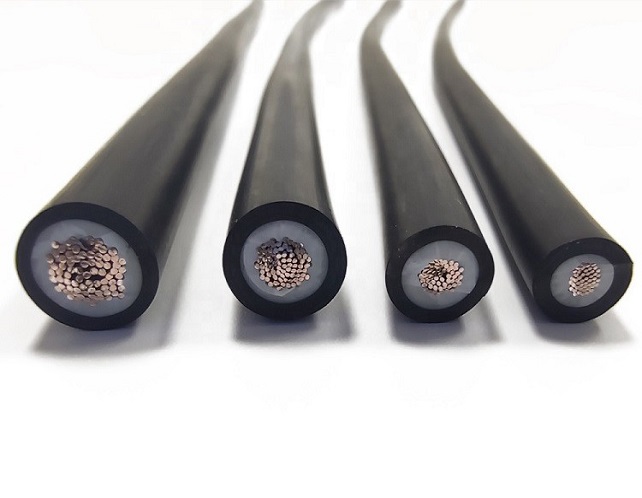

4 Sq mm DC Solar Cable
- Product Size: 1x2.5mm,1x4mm,1x6mm,1x10mm,1x16mm
- Product Material: Tinned Copper XLPE insulation
Solar DC Cable is specialized used in Solar PV system between the solar panel and Inverter or controller box.They’re UV resistance and can be working outdoor for 25years.
Slocable China Best 4 Sq mm DC Solar Cable
Product Description
·Dual wall insulation. Electron beam cross-linked
·Excellent resistance to U.V, oil, greases, oxygen and ozone
·Excellent resistance to abrasion
·Halogen free, flame retardant, low toxicity
·Excellent flexibility and stripping performance
·High Voltage and Current carrying capacity
·TUV, CE, ISO approved
3) Jacket: XLPE (XLPO), Halogen-free, UV resistant.
2) Insulation: XLPE (xlpo insulation), Halogen-free.
1) Conductor: 99.99% Strand Tinned Copper Wire.
Technical Data of Solar Cable
| Rated Voltage | 1500V DC |
| Size | 1×2.5mm2, 1x4mm2, 1x6mm2, 1x10mm2, 1x16mm2 |
| Standard | EN50618 , IEC62930 TUV , CE , ISO |
| Contact Material | 99.99% Strand Copper, Tin plated |
| Character | UV Resistance, Halogen-free |
| Ambient Temperature | -40℃~+90℃(Max. +120℃ for conductor) |
| Insulation & Jacket | XLPE (XLPO) |
| Color | Black / Red / Blue |
Advantages
99.99% Copper | Dual Wall Insulation | UV & Flame Resistance
Low Resistance | Low Eccentricity Ratio | Excellent Flexibility
1. We have 12 years of manufacturing experience. Exporting solar products all over the world.
2. High quality, you can use our products in confidence.
3. Although our price is not expensive, we will not cut corners. We insist to use the best and new raw material to make sure the quality.
4. The warranty we promise is 5years, and the working life is reaching 25years.
we are able to supply top-quality items, aggressive prices and the greatest buyer assistance. Our destination is “You come here with difficulty and we offer you a smile to take away” for China Best 4 Sq mm DC Solar Cable, We have been keeping durable enterprise relationships with extra than 200 wholesalers within the USA, the UK, Germany and Canada. Should you be fascinated by any of our merchandise, you should feel free to call us.
we are able to supply top-quality items, aggressive prices and the greatest buyer assistance. Our destination is “You come here with difficulty and we offer you a smile to take away” for China PV Solar Cable, XLPE Solar Panel Wire, Our items have been obtained more and more recognition from foreign clients, and established long term and cooperative relationship with them. We`ll supply the best service for every customer and sincerely welcome friends to work with us and establish mutual benefit together.
If any inquiry, please feel free to contact us. Many thanks!
