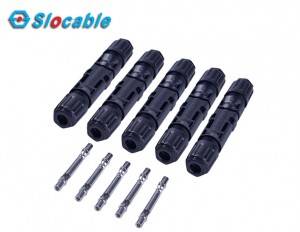

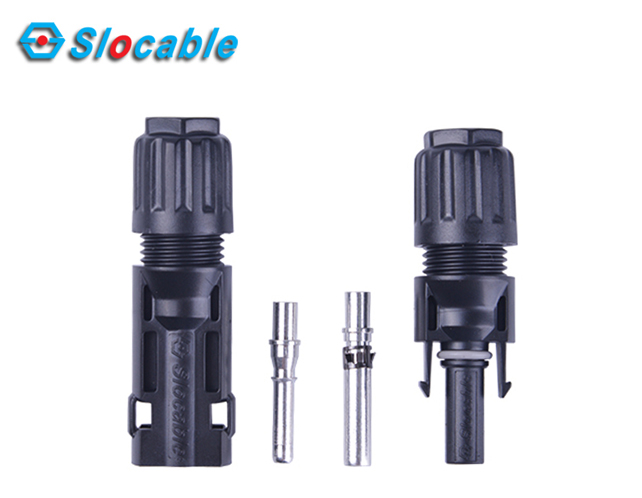

Solar PV Connector (TUV/CE)
- Product Size: For 2.5mm,4mm,6mm,10mm cable
- Product Material: Tinned Copper, PPO
Solar PV Connector is specialized used in Solar PV system between the solar panel and Inverter or controller box. They’re UV resistance and can be working outdoor for 25years.
Product Description
Description of Solar Connector
· Standard thickness of 0.4 terminals
· Simple on-site processing
· Mating safety provided by keyed housings
· Multiple plugging and unplugging cycles
· Accommodates PV cables with different insulation diameters
· High current carrying capacity
Technical Data of Solar Connector
| Rated Current: | 50A |
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | PPO |

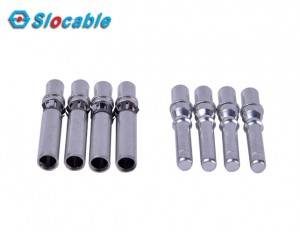

| Contact Material: | Copper, Tin plated |
| Waterproof Protection: | IP68 |
| Contact Resistance: | <0.5mΩ |
| Ambient Temperature: | -40℃~+85℃ |
| Flame Class : | UL94-V0 |
| Suitable Cable : | 2.5-6.0mm² (14-8AWG ) |
Advantages of PV Connector
Comparison of Solar PV Connector
