Solar DC Fuse Holder
- Product Size: 10x38mm , 1-30A
- Product Material: Tinned Copper , PPO
Compatible with MC4 cable solar connector.
13 Years of production experience in solar connectors
TUV approved & Quick and easy to install
Protection class IP68 Suitable for outdoor harsh environments
Stable connection & Reducing maintenance cost
A free sample is available
China factory for solar energy mc4 dc fuse folder 1000V Slocable
Product Description
· Compatible MC4
· Simple on-site processing
· Accomodates different specifications of the FUSE and Cables
· Fuse can be replaced
· Mating safety provided by keyed housings
· Mutiple plugging and unplugging cycles
· High current carrying capacity
Technical Data
| Rated Current: | 1~30A (According to the fuse) |
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | PPO |
| Contact Material: | Copper, Tin plated |
| Waterproof Protection: | IP68 |
| Contact Resistance: | <0.5mΩ |
| Ambient Temperature: | -40℃~+85℃ |
| Flame Class : | UL94-V0 |
| Suitable Cable : | 2.5-6mm2 (14-10AWG) |

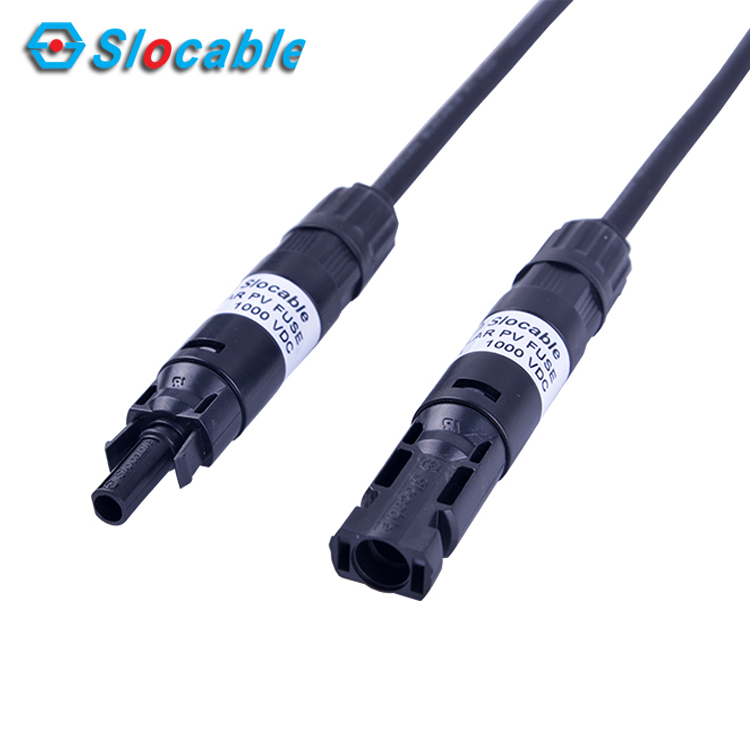

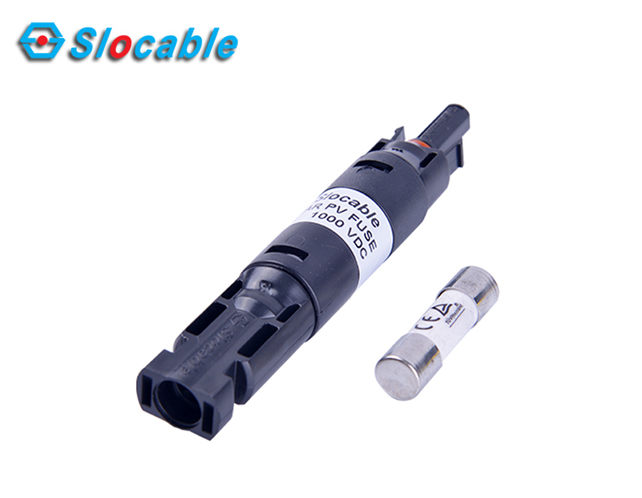

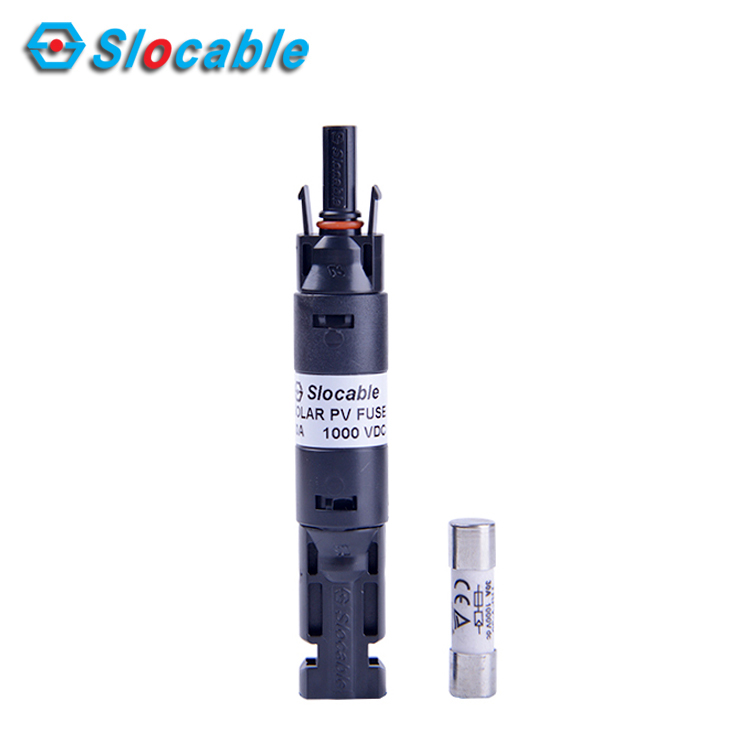

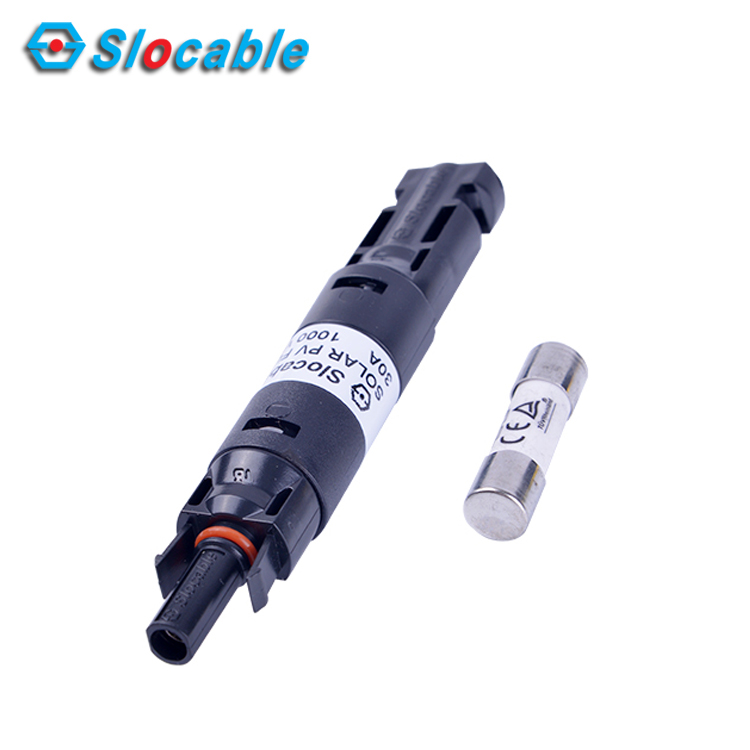

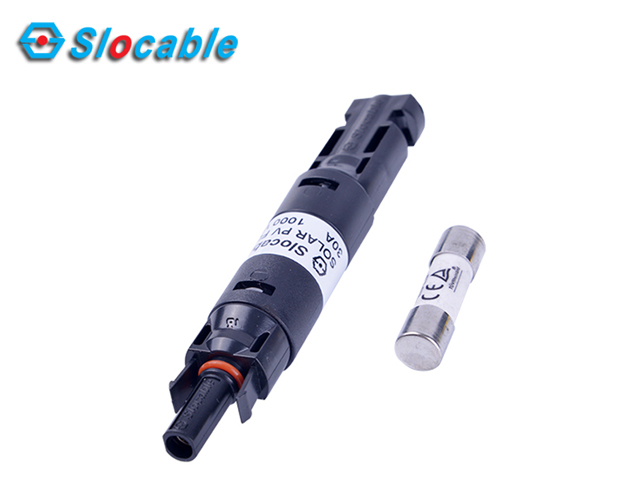

Pictures
Comparison of Solar connector
We provide dc fuse holder, 1 amp fuse holder, 10 amp fuse holder, 20 amp fuse holder, 30 amp fuse holder and so on. Our products in the production process have got strictly monitored because it is only to provide you the best quality. High production costs but low prices for our long-term cooperation. You can have a variety of choice and the value of all types are the same reliable. We sincerely hope that all customers will establish long-term and mutually beneficial cooperation with us.
If any inquiry, please feel free to contact us. Many thanks!
-
