Solar Wire Harness Assembly
- Product Size: 2.5mm, 4mm, 6mm, 10mm
- Product Material: Solar Cable, MC4
PV Y Branch Cable is specialized used in Solar PV system between the solar panel and Inverter or controller box.They’re UV resistance and can be working outdoor for 25years.
We’ve got quite possibly the most state-of-the-art production gear, experienced and qualified engineers and workers, acknowledged top quality handle systems along with a friendly expert gross sales group pre/after-sales support for High-Performance China Factory Wire Harness Assembly, We are going to continually strive to increase our company and supply the ideal quality products with aggressive price ranges. Any inquiry or comment is hugely appreciated. Remember to get hold of us freely.
We’ve got quite possibly the most state-of-the-art production gear, experienced and qualified engineers and workers, acknowledged top quality handle systems along with a friendly expert gross sales group pre/after-sales support for Auto Wire Harness Assembly, China Wiring Harness, Our factory covers an area of 12,000 square meters, and has a staff of 200 people, among which there are 5 technical executives. We have been specialized in producing. Now we have rich experience in export. Welcome to contact us and your inquiry will likely be replied to as soon as possible.
High Performance China Factory Solar Wire Harness Assembly Slocable
Description of PV Cables and MC4 Connectors
PV Cables / Wires
Technical Data
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | XLPE (XLPO) |
| Contact Material: | 99.7% Copper, Tin plated |
| Character: | UV Resistance, Halogen-free |
| Ambient Temperature: | -40℃~+90℃ |
| Flame Class : | EN 50625 / UL 1571 |
| Color: | Black / Red / Blue |
MC4 Connectors
Technical Data
| Rated Current: | 50A |
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | PPO |
| Contact Material: | Copper, Tin plated |
| Waterproof Protection: | IP68 |
| Contact Resistance: | <0.5mΩ |
| Ambient Temperature: | -40℃~+85℃ |
| Flame Class : | UL94-V0 |
| Suitable Cable : | 2.5-6mm2 (14-10AWG) |

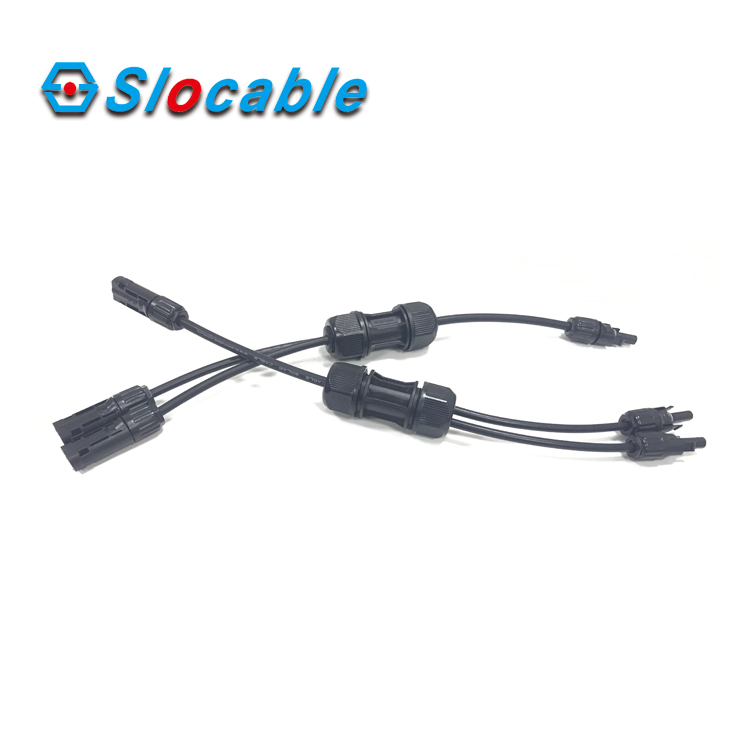

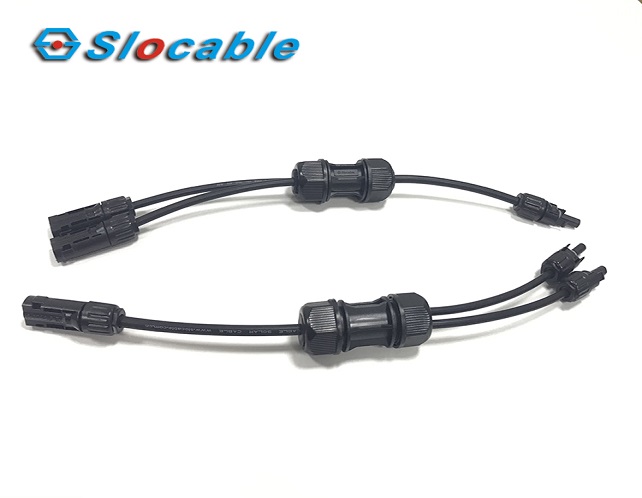

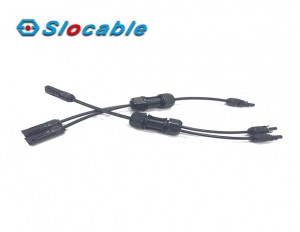

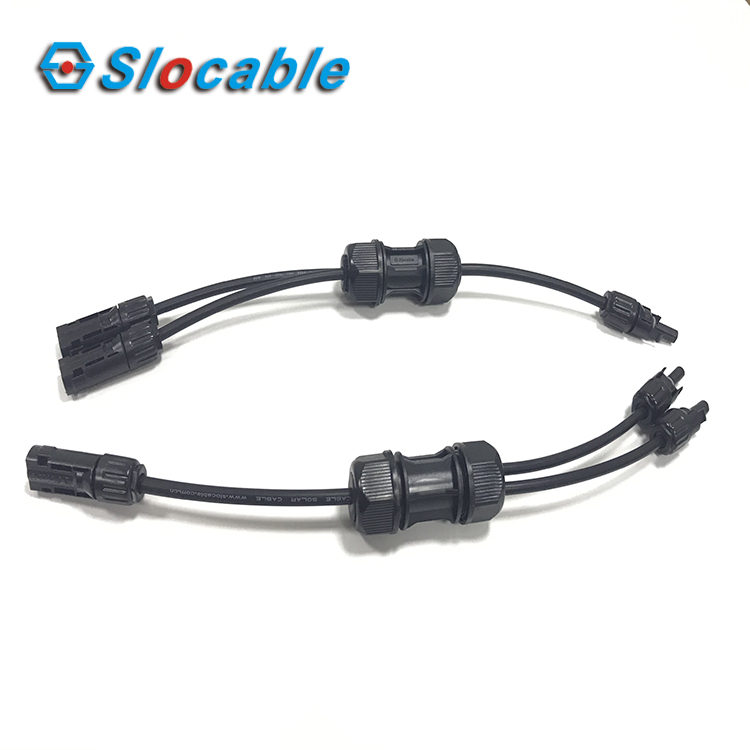

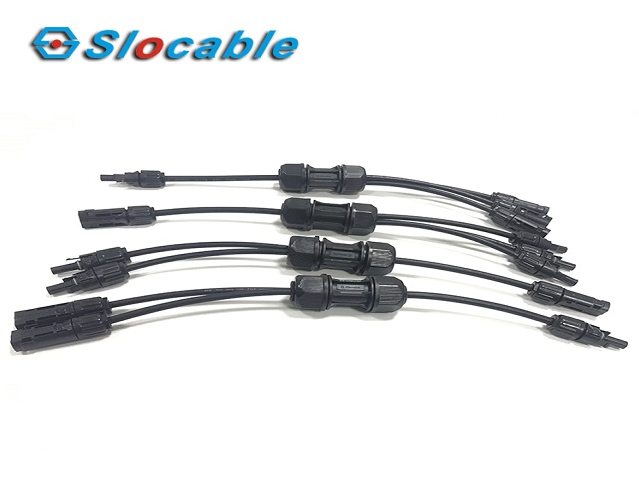

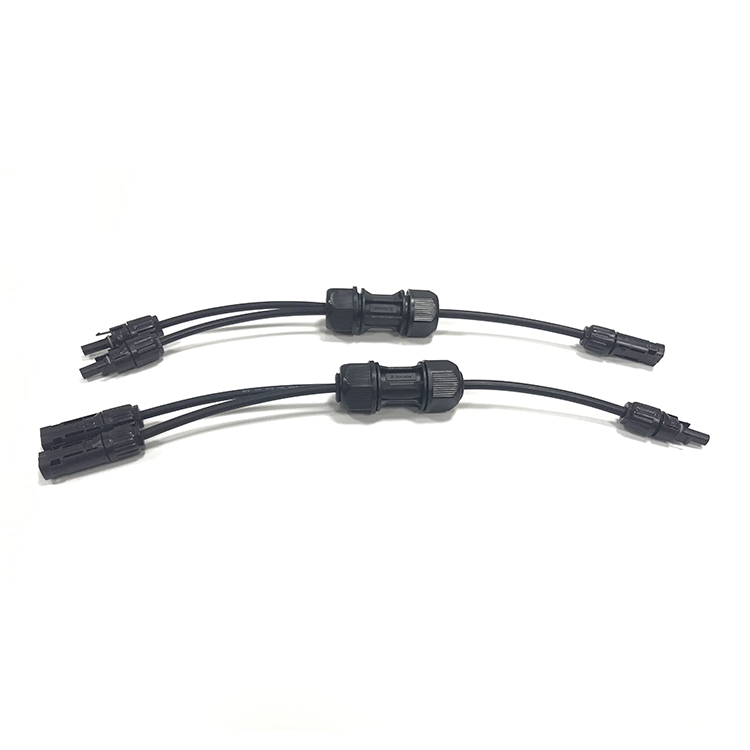

Pictures of Solar Panel Extension Cable:
(Size and Length of Cables: customized)
If any inquiry, please feel free to contact us. Many thanks!
-
