Connecting Terminal,Copper Terminal,Wire Connector Terminal
- Product Size: For 2.5mm,4mm,6mm cable
- Product Material: Tinned Copper, PPO
MC4 Solar Connector is specialized used in Solar PV system between the solar panel and Inverter or controller box. They’re UV resistance and can be working outdoor for 25years.
Connecting Terminal,Copper Terminal,Wire Connector Terminal,
high quality mc4 connector,

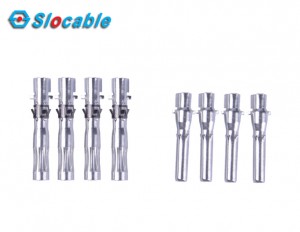

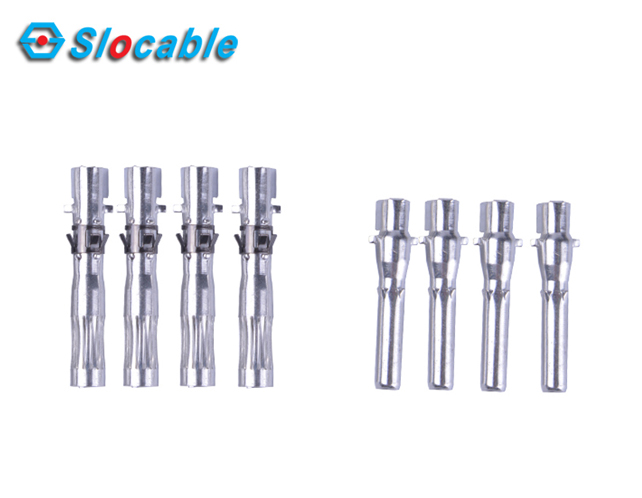

Compatible MC4 Connector with Open Copper Sheet Terminals

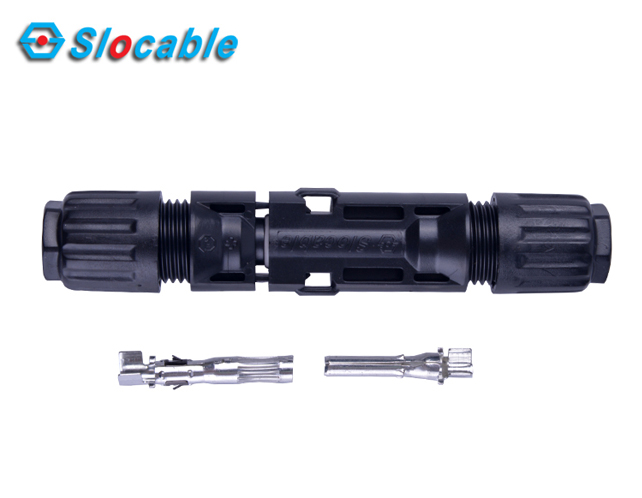

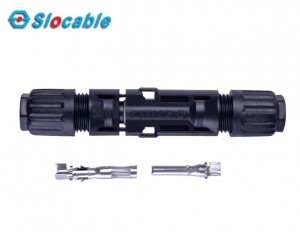

Description of MC4 Connector
· Compatible MC4
· Standard thickness 0.4 terminals
· Simple on-site processing
· Mating safety provided by keyed housings
· Multiple plugging and unplugging cycles
· Accommodates PV cables with different insulation diameters
· High current carrying capacity
Technical Data of MC4 Connector
| Rated Current: | 50A |
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | PPO |
| Contact Material: | Copper, Tin plated |
| Waterproof Protection: | IP68 |
| Contact Resistance: | <5mΩ |
| Ambient Temperature: | -40℃~+85℃ |
| Flame Class : | UL94-V0 |
| Suitable Cable : | 2.5-6mm2 (14-10AWG) |
Advantages of MC4 Connector
Comparison of MC4 Connector
If any inquiry, please feel free to contact us. Many thanks!
-
