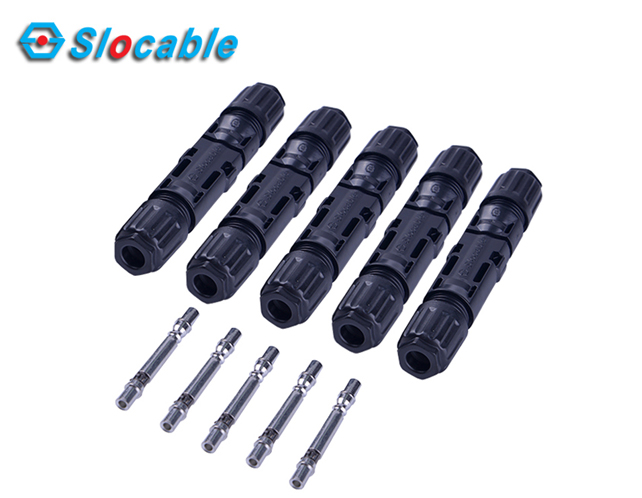

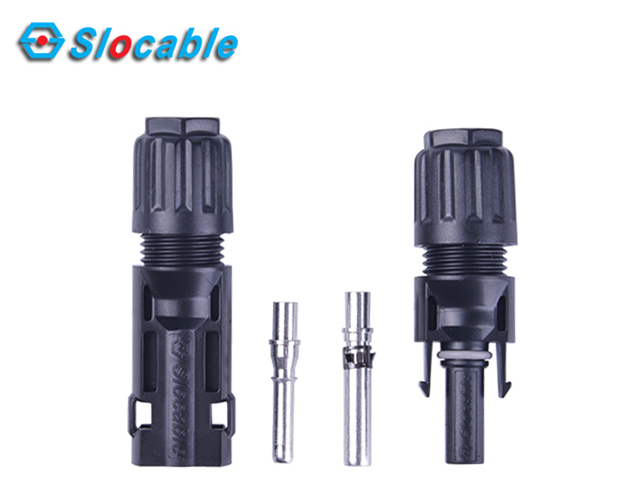

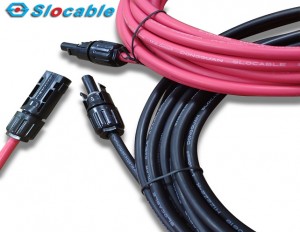

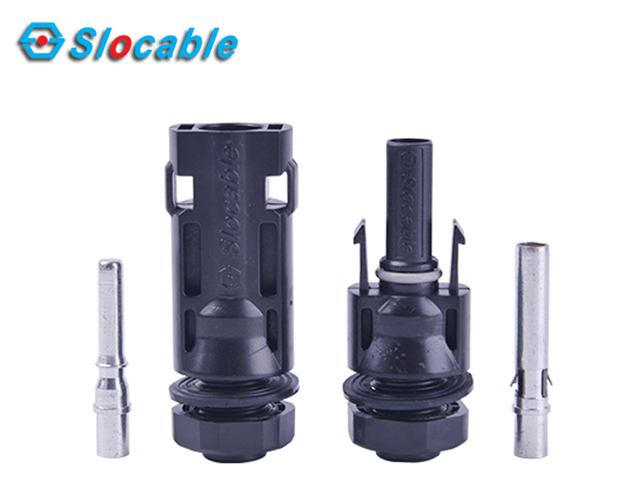

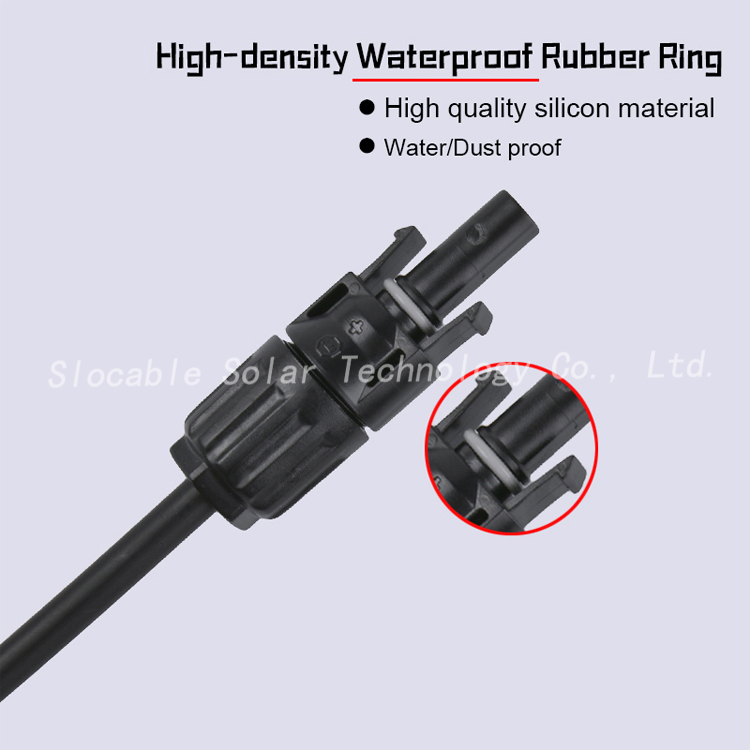

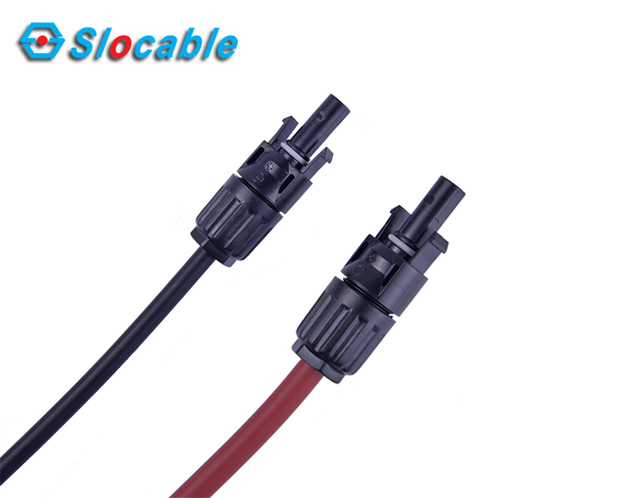

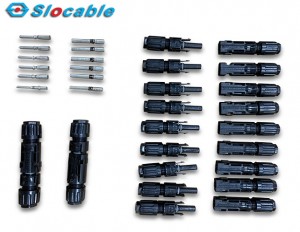

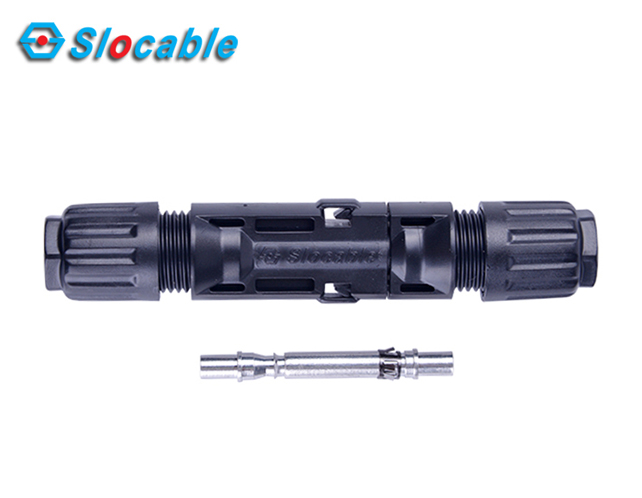

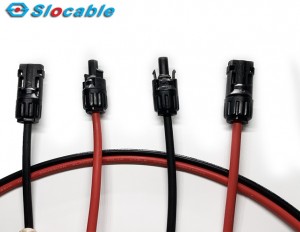

MC4 Solar IP68 Waterproof Connector
- Product Size: For 2.5mm,4mm,6mm,10mm cable
- Product Material: Tinned Copper, PPO

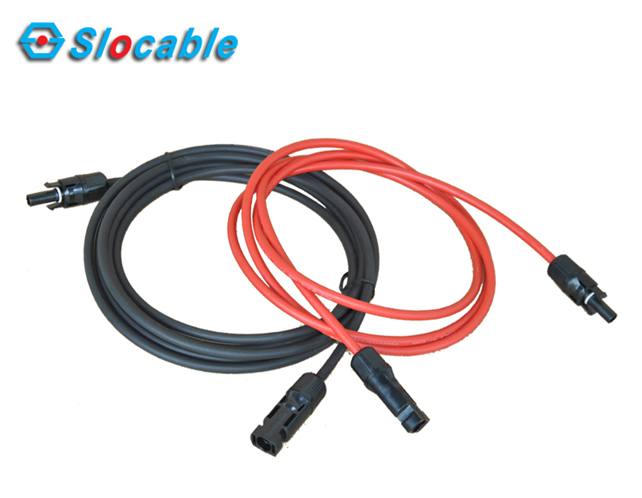

MC4 Solar Connector is specialized used in Solar PV system between the solar panel and Inverter or controller box.They’re UV resistance and can be working outdoor for 25years.
Product Description
Description of MC4 Connector
· Compatible MC4
· Standard thickness 0.4 terminals
· Simple on-site processing

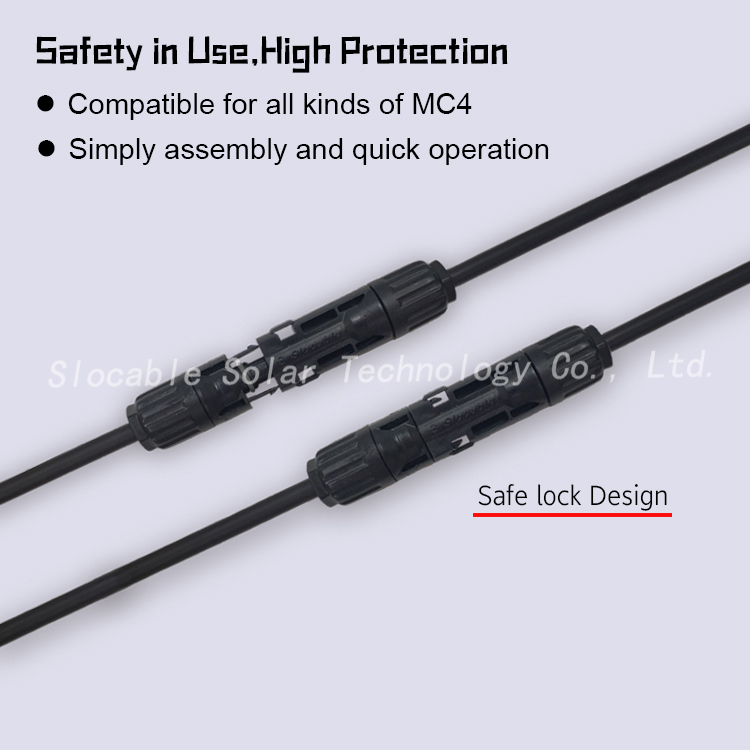

· Mating safety provided by keyed housings
· Multiple plugging and unplugging cycles
· Accommodates PV cables with different insulation diameters
· High current carrying capacity

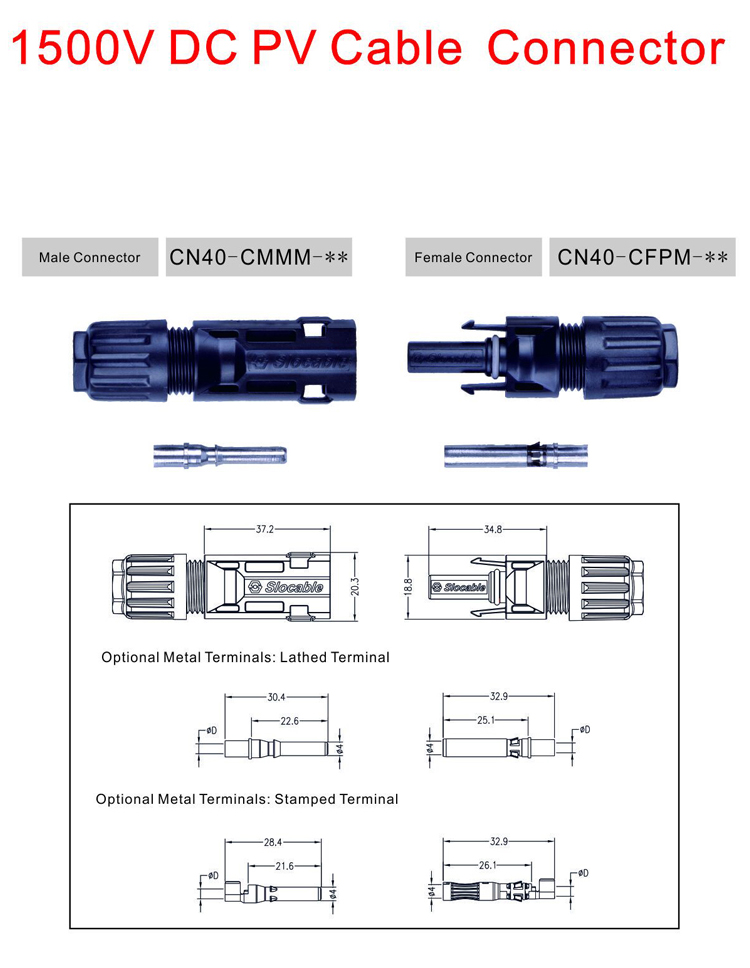

Technical Data of MC4 Connector
| Rated Current: | 50A |
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | PPO |

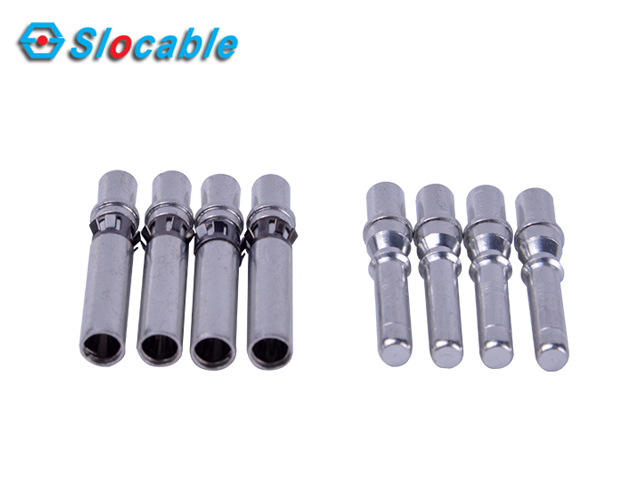

| Contact Material: | Copper, Tin plated |
| Waterproof Protection: | IP68 |
| Contact Resistance: | <0.5mΩ |
| Ambient Temperature: | -40℃~+85℃ |
| Flame Class : | UL94-V0 |
| Suitable Cable : | 2.5-6.0mm² (14-8AWG ) |

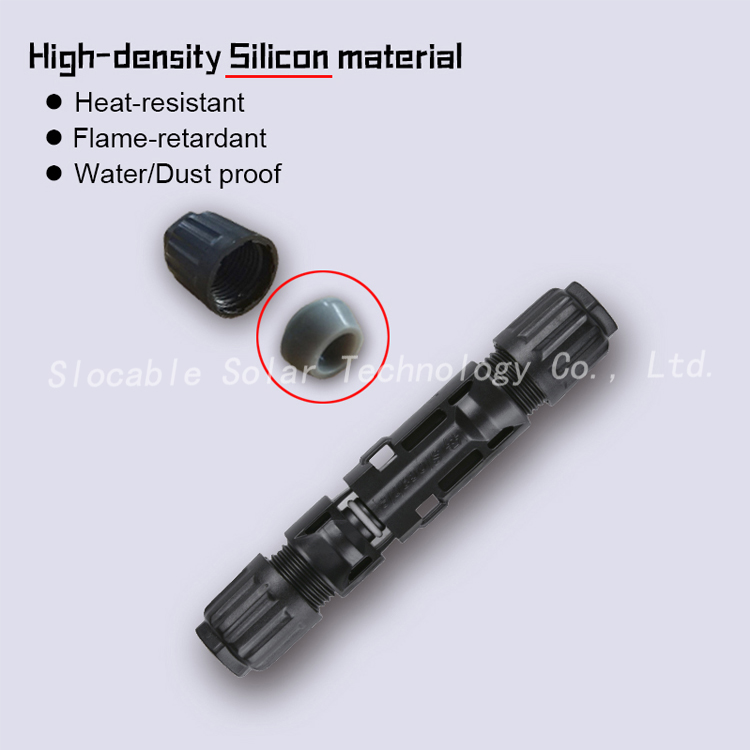

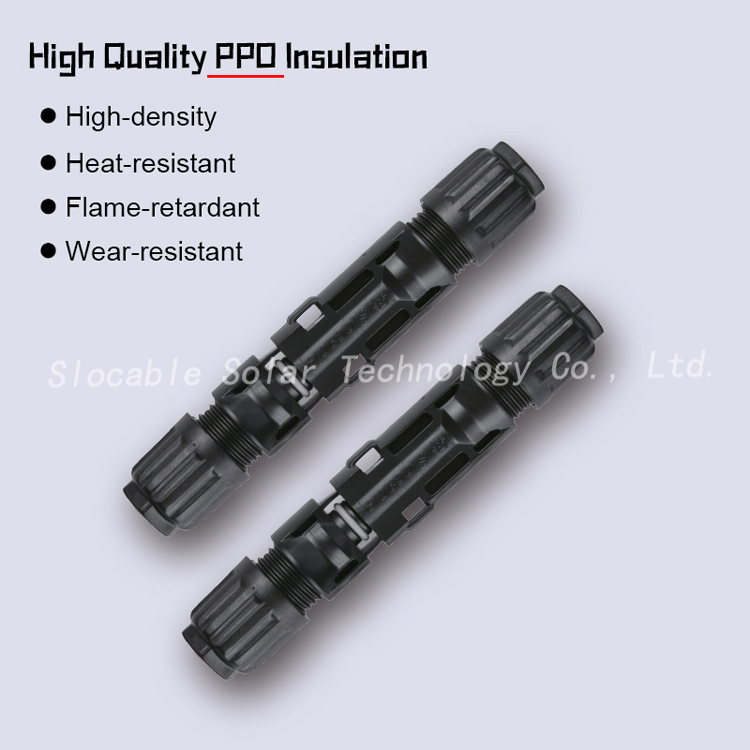

Advantages of MC4 Connector
Comparison of MC4 Connector
If any inquiry, please feel free to contact us. Many thanks!
-
