DC Isolator Switch for Solar System

Product Description

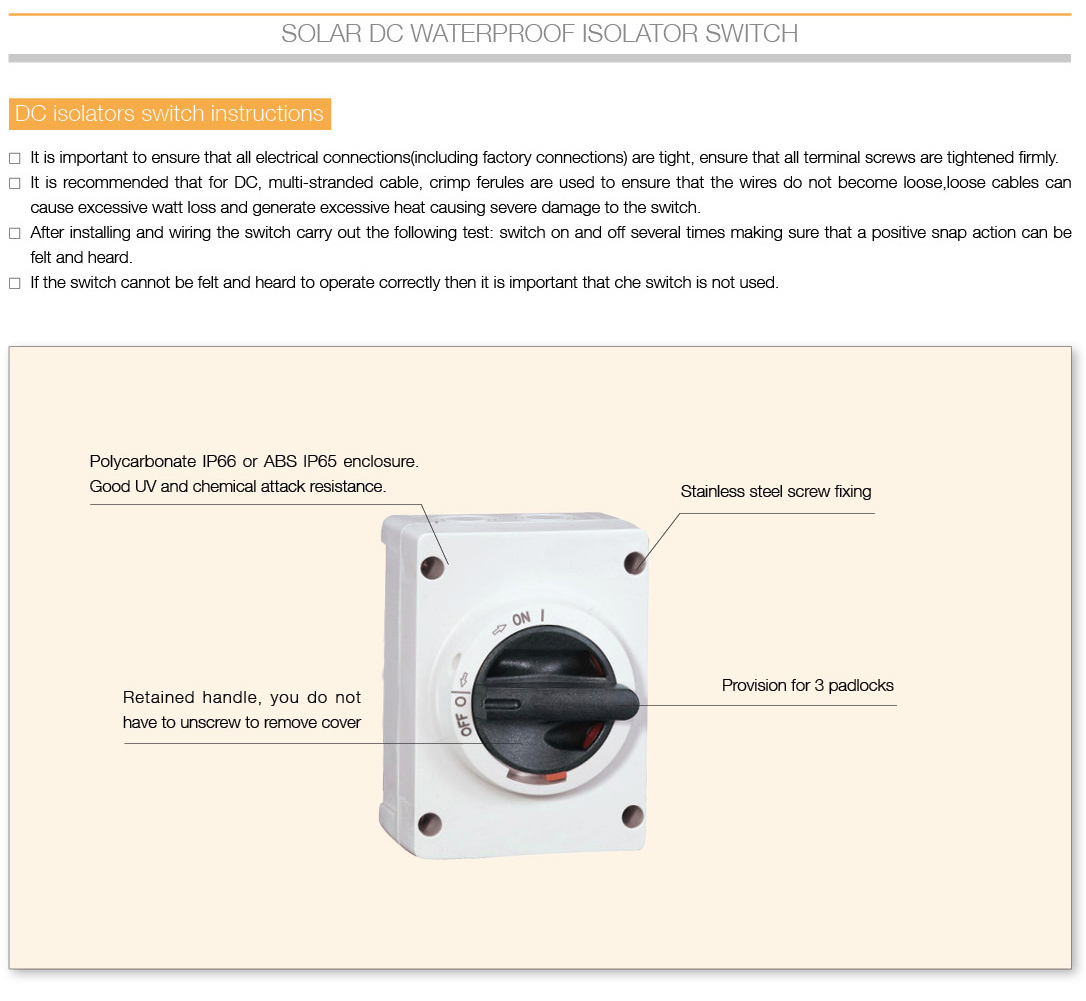

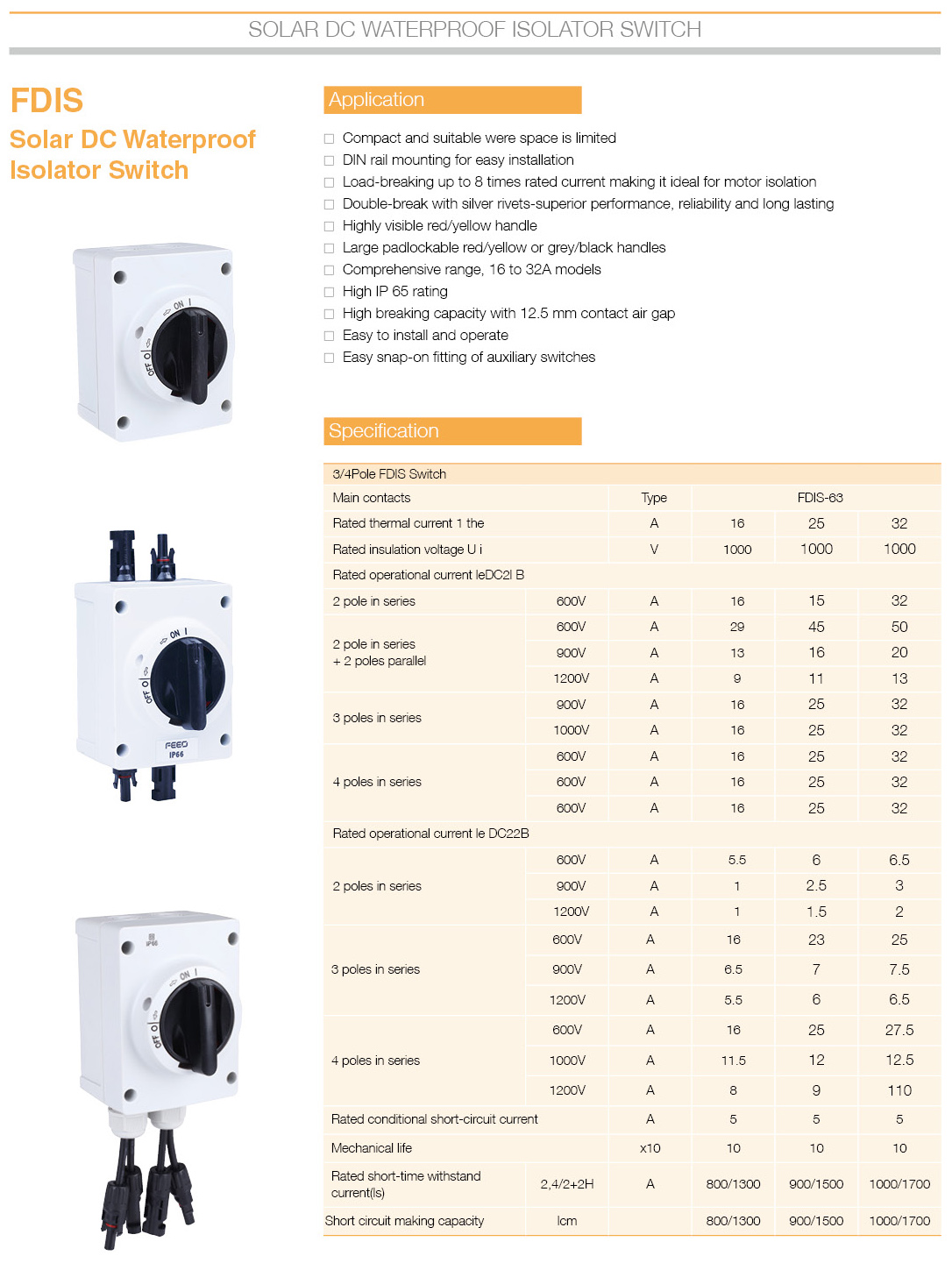

FDIS DC Waterproof Isolator Switch:
· Compact and suitable were space is limited
· DIN rail mounting for easy installation
· Load-breaking up to 8 times rated current making it ideal for motor isolation
· Double-break with silver rivets-superior performance, reliability and long lasting
· Highly visible red/yellow handle
· Large padlockable red/yellow or grey/black handles
· Comprehensive range, 16 to 32A models
· High IP 66 rating
· High breaking capacity with 12.5 mm contact air gap
· Easy to install and operate
· Easy snap-on fitting of auxiliary switches

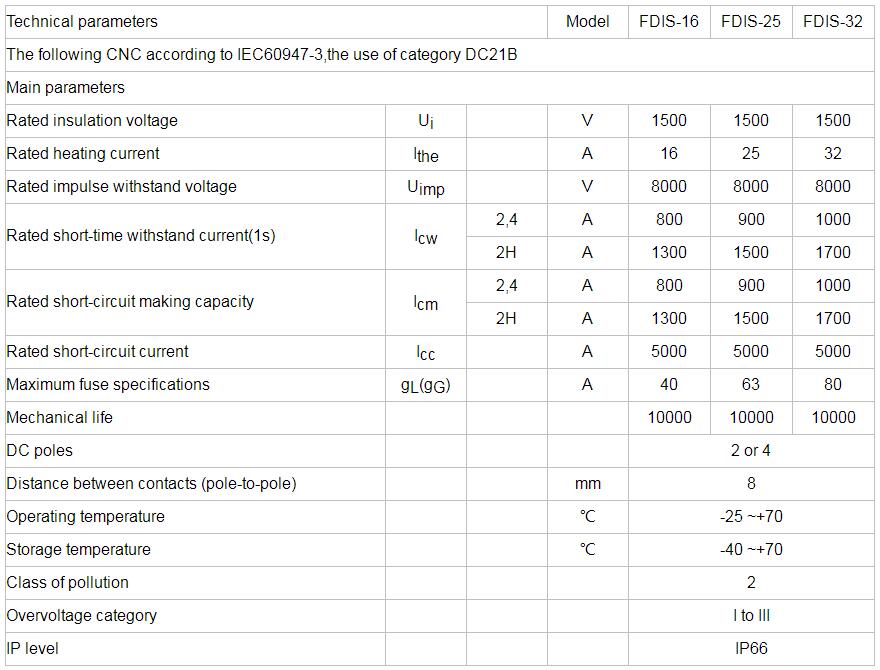

Technical Data
