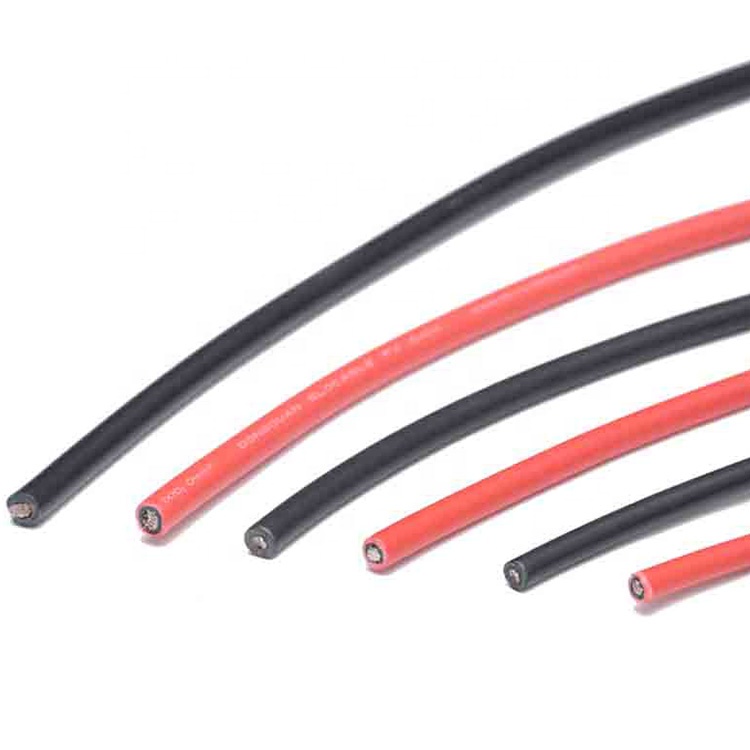

dc connector cable PV1-F
- Product Size: 1x2.5mm,1x4mm,1x6mm,1x10mm,1x16mm
- Product Material: Tinned Copper,XLPE Insulation
Solar DC Cable is specialized used in Solar PV system between the solar panel and Inverter or controller box. PVC electric wires can be installed in conduit, in cable trunking and in cable ducting. Or where there is deemed the little risk of mechanical damage these cables can be clipped direct, on cable tray, embedded or in free air.
Slocable Top Suppliers China dc connector cable PV1-F 1000v 1500v
Product Description
·Dual wall insulation.Electron beam cross-linked
·Excellent resistance to U.V, oil, greases, oxygen and ozone
·Excellent resistance to abrasion ·Halogen free, flame retardant, low toxicity
·Excellent flexibility and stripping performance
·High Voltage and Current carrying capacity
·TUV, CE, ISO approved
3) Jacket: XLPE (XLPO),Halogen-free, UV resistant.
2) Insulation: XLPE (XLPO),Halogen-free .
1) Conductor: 99.99% Stand Tinned Copper Wire
Technical Data of Solar Cable
| Rated Voltage: | 1000V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | XLPE (XLPO) |
| Contact Material: | 99.7% Copper, Tin plated |
| Character: | UV Resistance, Halogen-free |
| Ambient Temperature: | -40℃~+90℃ |
| Flame Class : | EN 50625 / UL 1571 |
| Color: | Black / Red / Blue |
Advantages
99.99% Copper | Dual Wall Insulation | UV & Flame Resistance
Low Resistance | Low Eccentricity Ratio | Excellent Flexibility
1. We have 12 years manufacturing experience.Exporting solar products all over the world.
2. High quality, you can use our products in confidence.
3. Although our price is not expensive, we will not cut corners. We insist to use the best and new raw material to make sure the quality.
4. The warranty we promise is 5years, and the working life is reaching 25years.
Solar PV Cable Specification
| Name : | Single Core Solar Cable |
| Standard : | PV1-F TUV , CE , ISO |
| Size : | 1×2.5mm2 / 1x4mm2 / 1x6mm2 / 1x10mm2 / 1x16mm2 |
| Conductor : | 99.99% Strand Tinned Copper Wire |
| Insulation : | XLPE (XLPO) |
| Jacket : | XLPE (XLPO) |
| Color : | Black / Red / Blue |
| Temperature Range : | -40℃ ~ 90℃ (Max. +120℃ for conductor) |
| Outer Diameter : | 5.4mm / 6.2mm / 7.1mm / 7.8mm / 10.2mm |
| Rated Current : | 30A / 50A / 70A / 90A / 132A |
| Rated Voltage : | AC 0.6 / 1.0 KV ; DC 1.0 / 1.8 KV |
Our business promises all users of first-class items and the most satisfying post-sale company. We warmly welcome our regular and new prospects to join us for Top Suppliers China dc connector cable PV1-F, The concept of our company is “Sincerity, Speed, Service, and Satisfaction”. We will follow this concept and win more and more customers’ satisfaction.
Our business promises all users of first-class items and the most satisfying post-sale company. We warmly welcome our regular and new prospects to join us for China Solar PV Cable, Photovoltaic Wire, Now, we professionally supply customers with our main merchandise And our business is not only the “buy” and “sell”, but also focus on more. We target to be your loyal supplier and long-term cooperator in China. Now, We hope to be the friends with you.
If any inquiry, please feel free to contact us.
-
