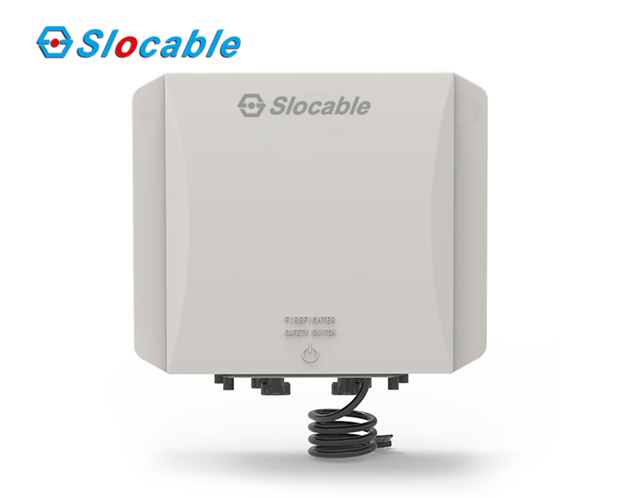

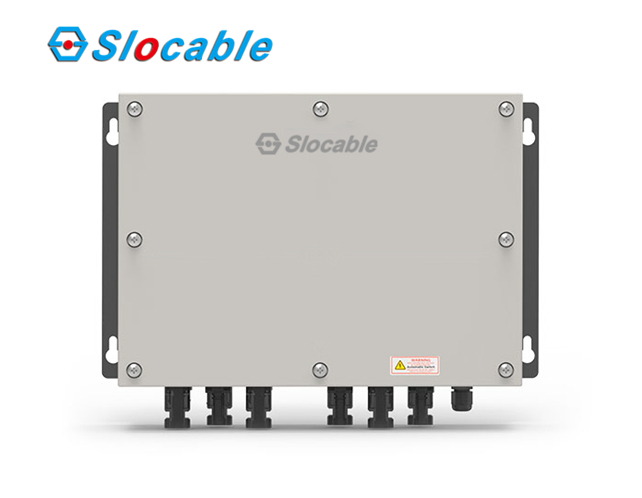

PV Firefighter Safety Switch/Rapid Shutdown Slocable

Current: Up to 40A
Voltage: Up to 1500V DC

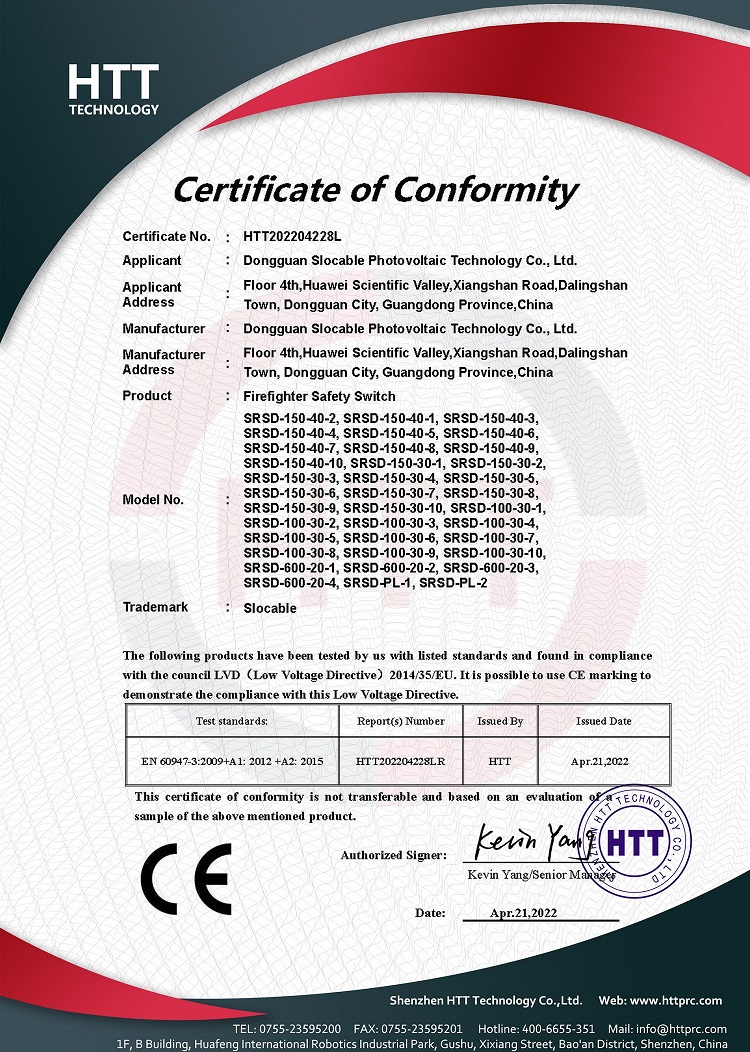

Certification: CE

In most photovoltaic systems, the DC isolator is integrated into the DC/AC power inverter. After switching off the DC isolator, the ables between the solar modules and the inverter running through the building are still subject to up to 1000V DC in the event of a fire, firefighters are exposed to a very serious source of potential danger.
The Slocable PV firefighter safety switch provides the solution. It directly disconnects the dc current in close proximity to the solar modules and creates a safer situation for firefighters.

Product Description

• 1～10 strings available
• Motor driven switch disconnection
• High grade PC , IP65 protection & unti UV
• Knock outs I Cable glands I MC4 connectors
• Built-in DC isolator with CE, IP65
• Shut down automatically exceeding 70°C
• Equipped with breathing valve to avoid conden-sation inside the enclosure
• Designed for residential solar installations

Technical Data

Operating Voltage	100V AC-240V AC
Nominal Voltage	230V AC
Nominal Current	30mA
Start up(loading)Current	Average 100mA
Switch on Action Current	Max 300mA
Feedback Contact	24V DC – 300mA Max
Operating temperature range	-20℃ – +50℃
Storage temperature range	-40℃ – +85℃
Protection Degree	Class II
DC Switch Disconnect according to	EN60947-1, DIN VDE 0100-712
Number of operations	2000
Number of operations under load	>1000
