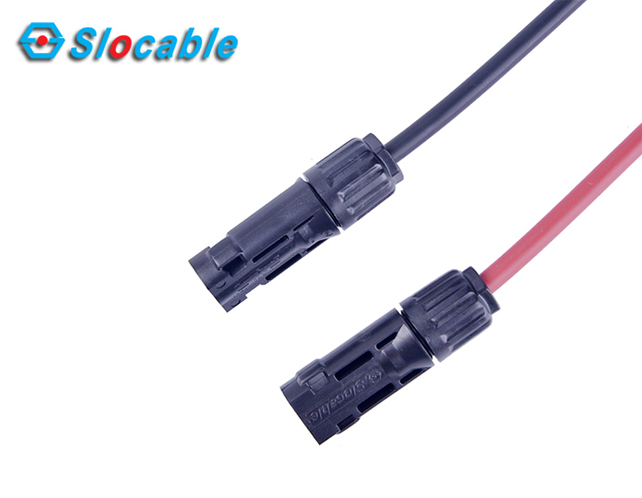

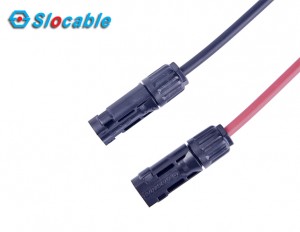

Female Mc4 Connector
- Product Size: For 2.5mm,4mm,6mm cable
- Product Material: Tinned Copper, PPO
MC4 Solar Connector is specialized used in Solar PV system between the solar panel and Inverter or controller box. They’re UV resistance and IP68 waterproof ,can be working outdoor for 25years.

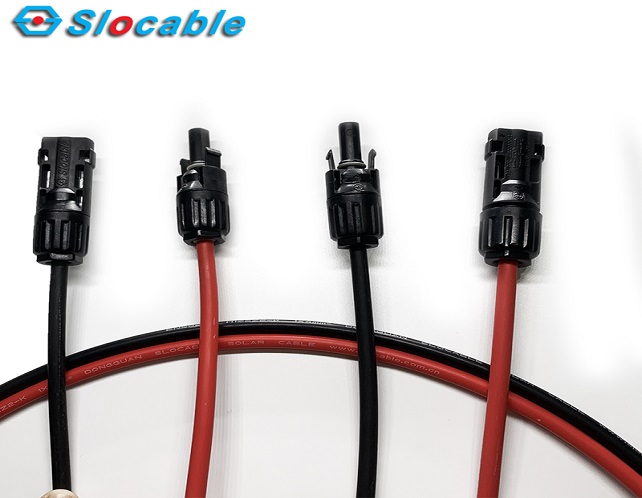

We provide mc4 female connector and mc4 male connector. We rely upon strategic thinking, constant modernization in all segments, technological advances and of course upon our employees that directly participate inside our success for Leading Manufacturer for China Male and Female Mc4 Connector, All price ranges depend upon the quantity of your respective buy; the much more you purchase, the far more economical the rate is. We also offer fantastic OEM assistance to many famous brands.
We rely upon strategic thinking, constant modernization in all segments, technological advances and of course upon our employees that directly participate inside our success for China Cable Connector, mc4 solar connector, We are seeking the chances to meet all the friends from both at home and abroad for the win-win cooperation. We sincerely hope to have long-term cooperation with all of you on the basis of mutual benefit and common development.
Leading Manufacturer for China Slocable female mc4 connector
Stäubli MC4 PV connector assembly instructions

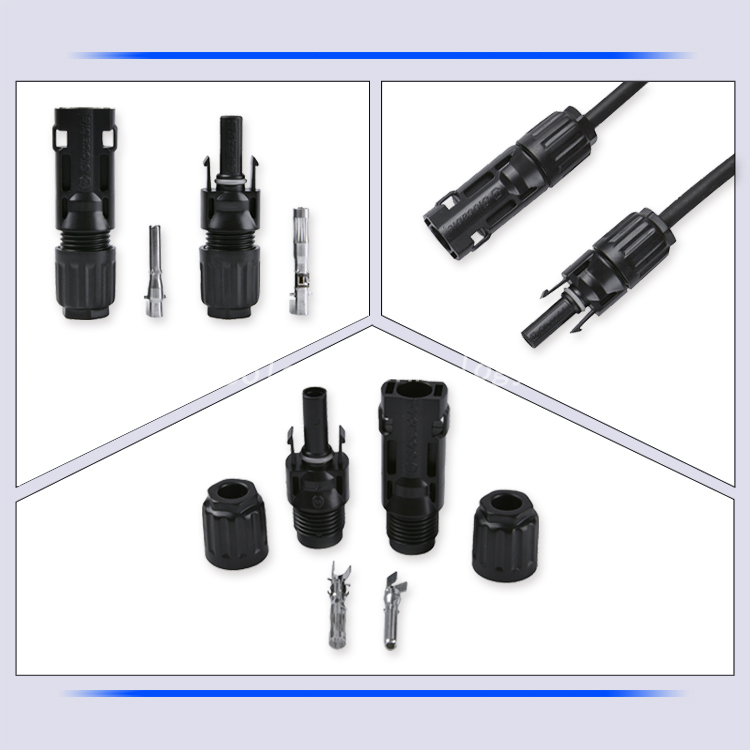

Description of MC4 Connector
· Compatible MC4
· Standard thickness 0.4 terminals
· Simple on-site processing
· Mating safety provided by keyed housings
· Multiple plugging and unplugging cycles
· Accommodates PV cables with different insulation diameters
· High current carrying capacity
Technical Data of MC4 Connector
| Rated Current: | 50A |
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | IEC62852 TUV , CE , ISO |
| Insulation Material: | PPO |
| Contact Material: | Copper, Tin plated |
| Waterproof Protection: | IP68 |
| Contact Resistance: | <0.5mΩ |
| Ambient Temperature: | -40℃~+85℃ |
| Flame Class : | UL94-V0 |
| Suitable Cable : | 2.5-6mm2 (14-10AWG) |

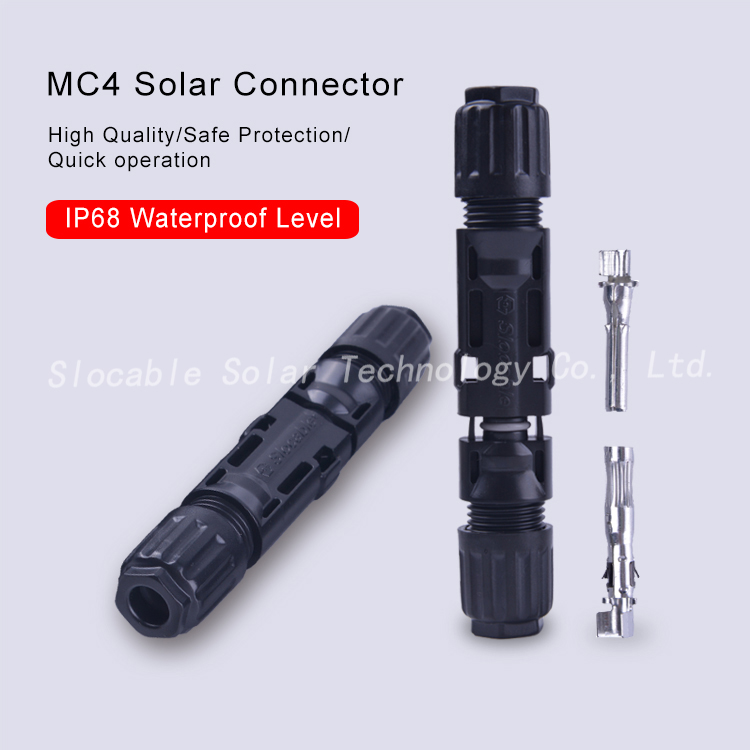

Advantages of MC4 Solar Connector
IP68 Waterproof | High Quality
Safe Protection | Quick Operation

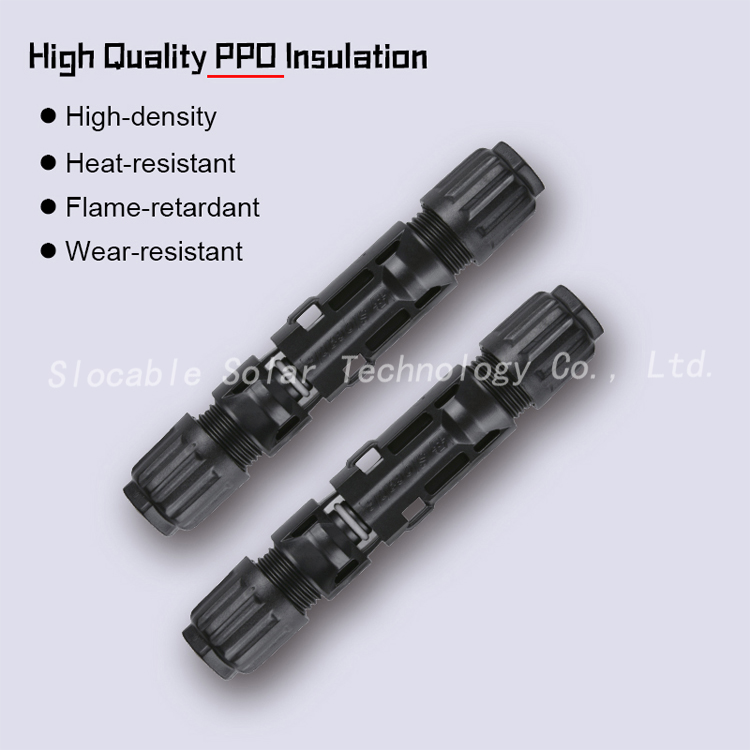

High Quality PPO Insulation | High Density
Heart Resistant | Flame Retardant | Wear Resistan

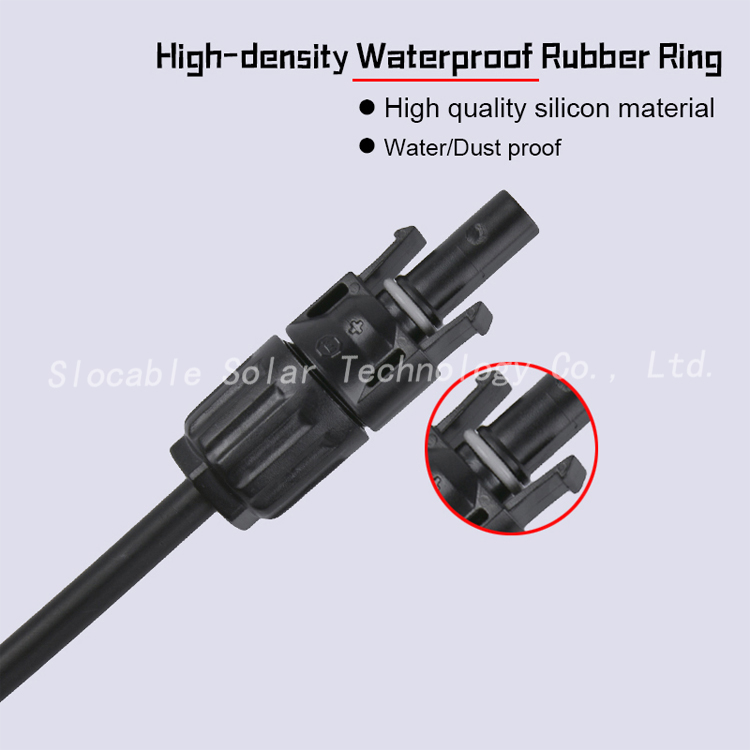

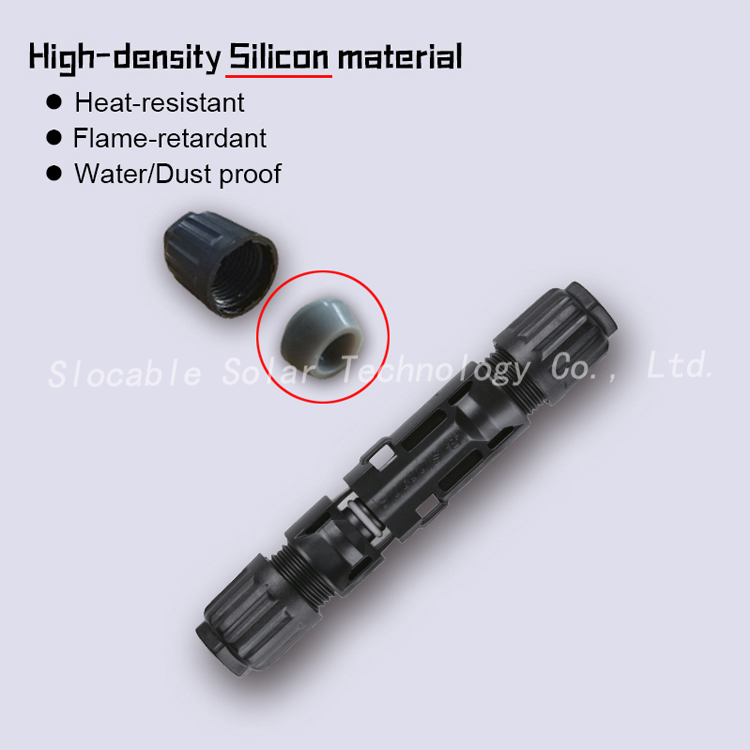

High Density Waterproof Rubber Ring | High Quality Silicon Material
Water/Dust Proof | Hear Resistant | Flame Retardant
·High Protection and Safety in Use
·Compatible for all kinds of MC4 connector,like Multic Contact,Amphenol,Sunclix
·Simply assembly and quick operation
·Safe lock design according to customer reques

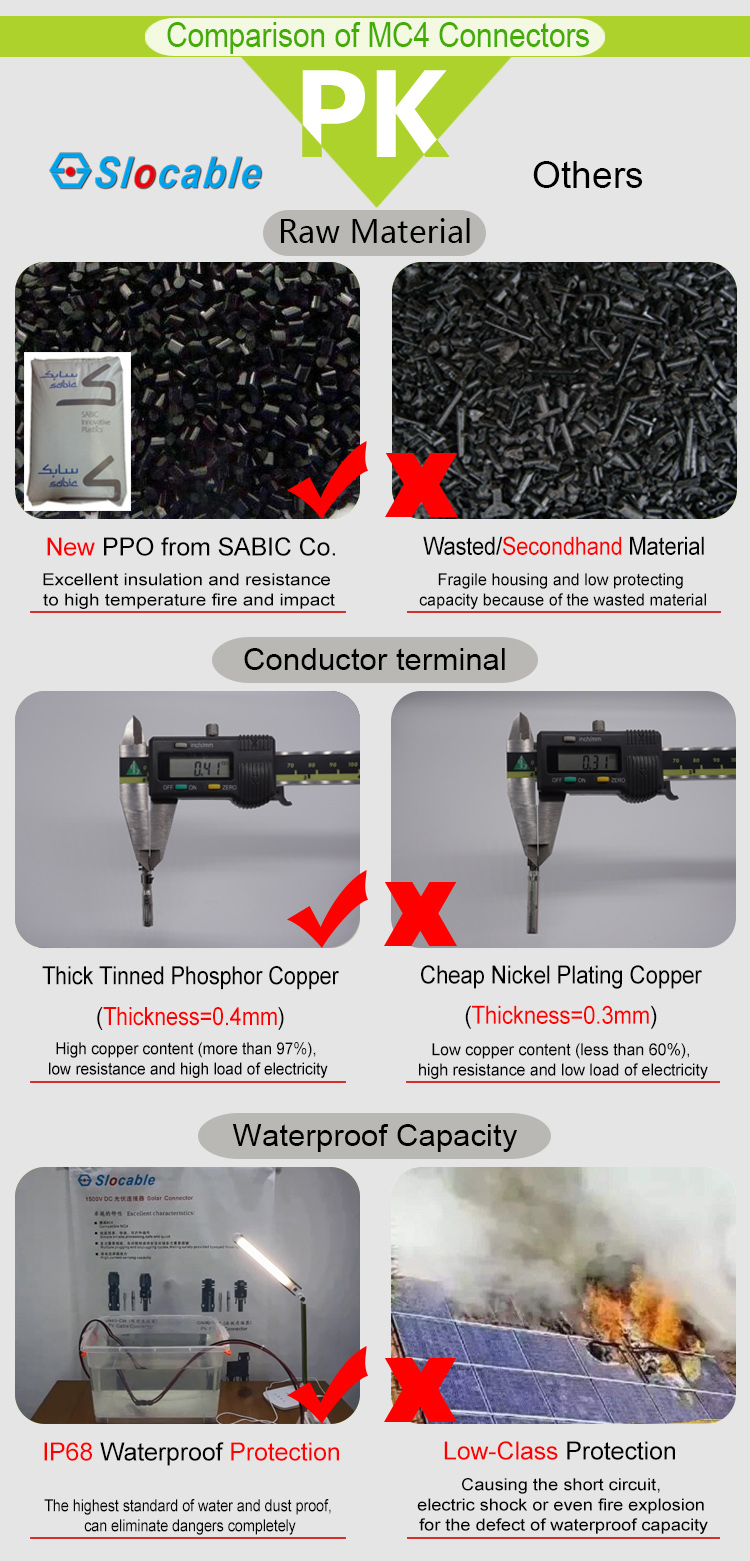

Comparison of MC4 Solar Connector
If any inquiry, please feel free to contact us. Many thanks!
-
