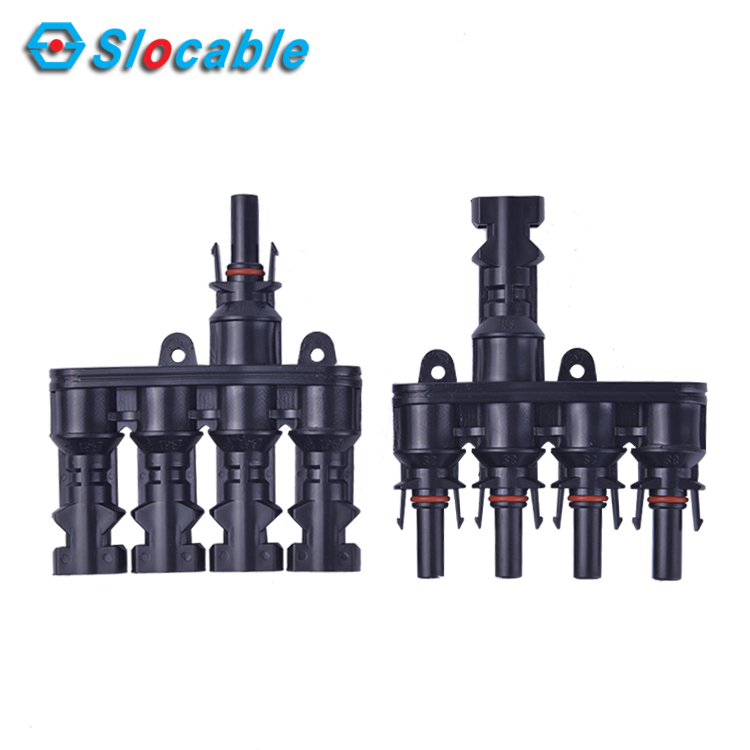

4to1 Branch MC4 Connector
- Product Size: For 2.5mm2,4mm2,6mm2 cable
- Product Material: Tinned Copper , PPO
MC4 Solar Connector is specialized used in Solar PV system between the solar panel and Inverter or controller box.They’re UV resistance and can be working outdoor for 25years.
Slocable New Type PV System Solar Energy Green Energy 4to1 Branch MC4 Connector
Product Description
· Compatible MC4
· Standard thickness 0.4 terminals
· Simple on-site processing
· Mating safety provided by keyed housings
· Multiple plugging and unplugging cycles
· Accommodates PV cables with different insulation diameters
· High current carrying capacity
Technical Data
| Rated Current: | 50A |
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | PPO |
| Contact Material: | Copper, Tin plated |
| Waterproof Protection: | IP68 |
| Contact Resistance: | <0.5mΩ |
| Ambient Temperature: | -40℃~+85℃ |
| Flame Class : | UL94-V0 |
| Suitable Cable : | 2.5-6mm2 (14-10AWG) |

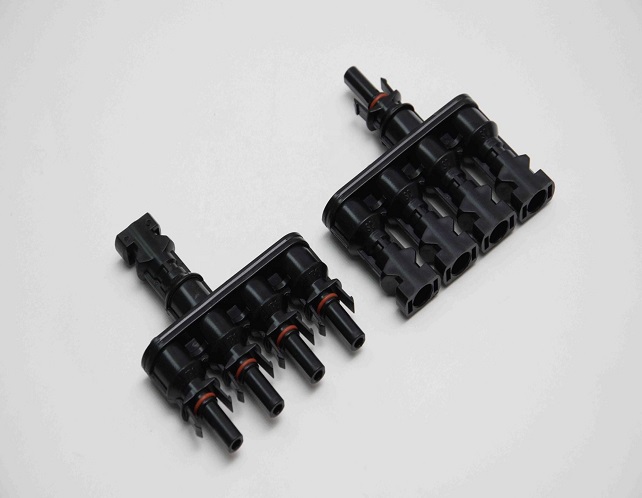

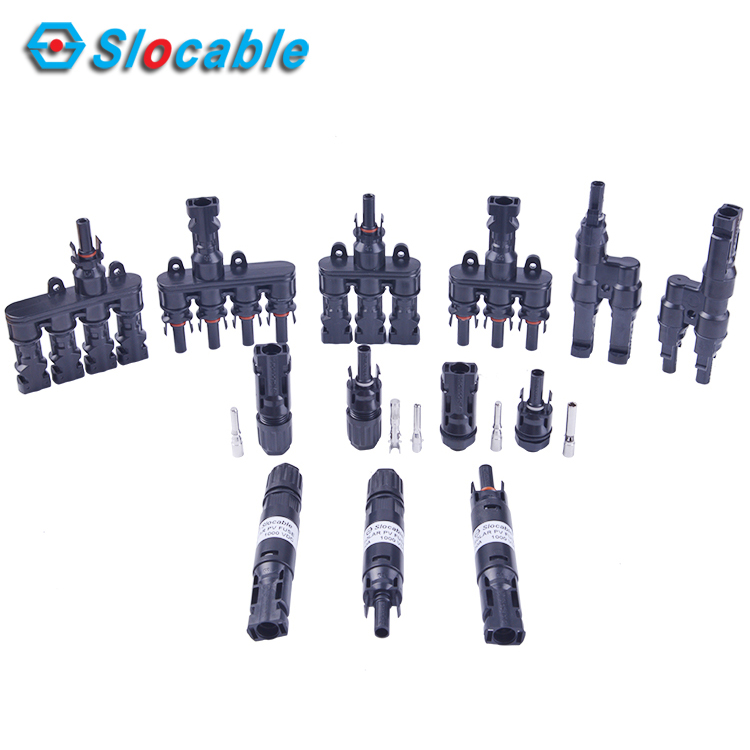

Product Photos
Quality Comparison
If any inquiry, please feel free to contact us. Many thanks!
-
