IP68 Solar Panel DC Connector
- Product Size: For 2.5mm,4mm,6mm cable
- Product Material: Tinned Copper PPO
Solar Panel DC Connector is specialized used in Solar PV system between the solar panel and Inverter or controller box. Reliable performance in bad outdoor conditions as it’s aging resistance and anti-ultraviolet features; With IP68 waterproof rating to ensure connectors’ proper functioning in an outdoor environment.
Slocable OEM China IP68 waterproof solar panel connectors
Description of MC4 Panel Connector
· Compatible MC4
· Standard thickness 0.4 terminals
· Simple on-site processing
· Mating safety provided by keyed housings
· Multiple plugging and unplugging cycles
· Accommodates PV cables with different insulation diameters
· High current carrying capacity
Technical Data of Panel MC4 Connector
| Rated Current: | 50A |
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | PPO |
| Contact Material: | Copper, Tin plated |
| Waterproof Protection: | IP68 |
| Contact Resistance: | <0.5mΩ |
| Ambient Temperature: | -40℃~+85℃ |
| Flame Class : | UL94-V0 |
| Suitable Cable : | 2.5-6mm2 (14-10AWG) |

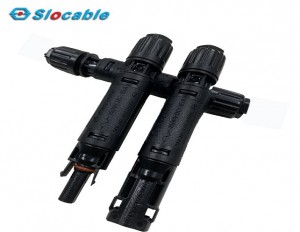

Pictures of Panel MC4 Connector
Comparison of MC4 Connector
We take “customer-friendly, quality-oriented, integrative, innovative” as objectives. “Truth and honesty” is our administration ideal for OEM/ODM China IP68 solar panel dc connector, Our group members are goal to provides merchandise with significant performance cost ratio to our consumers, as well as a target for all of us is usually to satisfy our consumers from all around the environment.
We take “customer-friendly, quality-oriented, integrative, innovative” as objectives. “Truth and honesty” is our administration ideal for China Mc4 Connector, solar connector, After years’ creating and development, with the advantages of trained qualified talents and rich marketing experience, outstanding achievements were gradually made. We get good reputation from the customers due to our good items quality and fine after-sale service. We sincerely wish to create a more prosperous and flourishing future together with all the friends home and abroad!
If any inquiry, please feel free to contact us. Many thanks!
