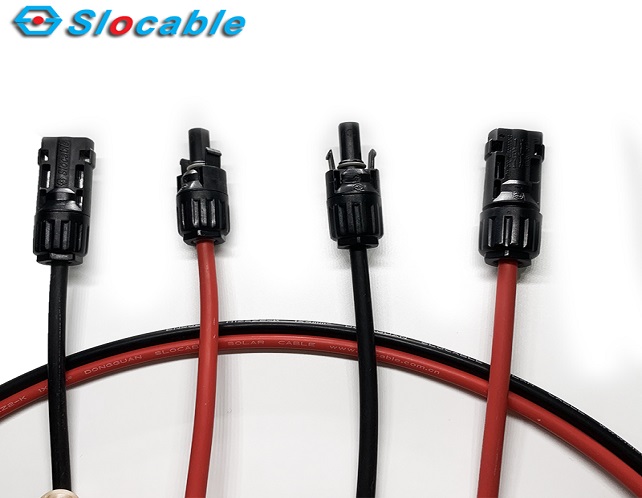

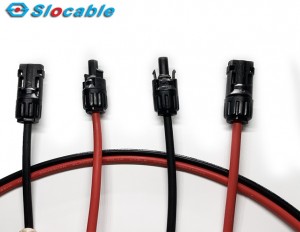

Multi Contact MC4 Connectors
- Product Size: For 2.5mm,4mm,6mm cable
- Product Material: Tinned Copper, PPO

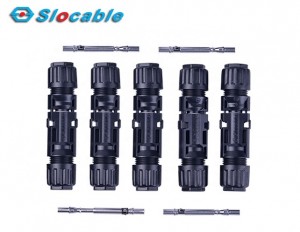

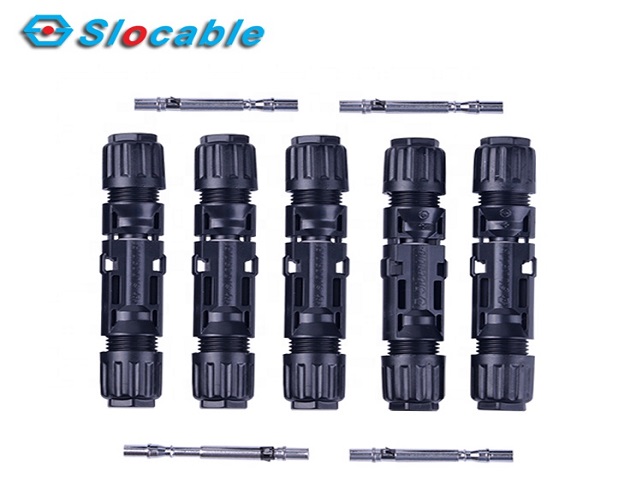

This Multi-Contact MC4 connector comes with the housing and the metal crimp contacts. These connectors require an MC4 crimping tool in order to meet UL standards and pass inspection. We recommend purchasing two of the MC4 disconnect tools for tightening these connectors. They are not necessary, but it makes assembly a lot easier and does not risk damaging the connector with pliers.
Product Description
Description of MC4 Connector
· Compatible MC4
· Standard thickness 0.4 terminals
· Simple on-site processing
· Mating safety provided by keyed housings
· Multiple plugging and unplugging cycles
· Accommodates PV cables with different insulation diameters
· High current carrying capacity
mc4 connector datasheet
| Rated Current: | 50A |
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | IEC62852 TUV , CE , ISO |
| Insulation Material: | PPO |
| Contact Material: | Copper, Tin plated |
| Waterproof Protection: | IP68 |
| Contact Resistance: | <0.5mΩ |
| Ambient Temperature: | -40℃~+85℃ |
| Flame Class : | UL94-V0 |
| Suitable Cable : | 2.5-6mm2 (14-10AWG) |
Advantages of MC4 Solar Connector
IP68 Waterproof | High Quality
Safe Protection | Quick Operation
High Quality PPO Insulation | High Density
Heart Resistant | Flame Retardant | Wear Resistan
High Density Waterproof Rubber Ring | High Quality Silicon Material
Water/Dust Proof | Hear Resistant | Flame Retardant

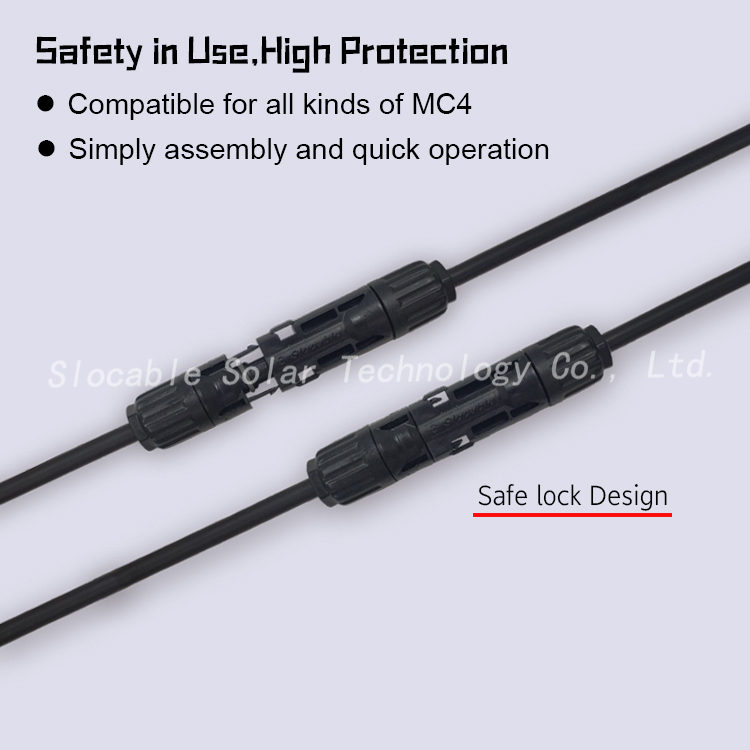

·High Protection and Safety in Use
·Compatible with all kinds of MC4 connector, like Multic Contact, Amphenol, Sunclix
·Simply assembly and quick operation
·Safe lock design according to customer request
Comparison of MC4 Solar Connector
With our outstanding administration, powerful technical capability and strict top quality handle procedure, we go on to provide our purchasers with reliable good quality, reasonable selling prices and excellent services. We goal at becoming certainly one of your most responsible partners and earning your gratification for factory Outlets for China multi contact mc4 Connectors 1500V, We sincerely expect exchange and cooperation along with you. Let us move forward hand in hand and accomplish a win-win situation.
We are the mc4 connector manufacturer, we go on to provide our purchasers with reliable good quality, reasonable selling prices and excellent services. We goal at becoming certainly one of your most responsible partners and earning your gratification for China DC Connector Mc4, Solar PV Connector Mc4, We accomplish this by exporting our wigs directly from our own factory for you. The goal of our company is to get customers who enjoy coming back to their business. We sincerely hope to cooperate with you in the near future. If there’s any opportunity, welcome to visit our factory!!!
