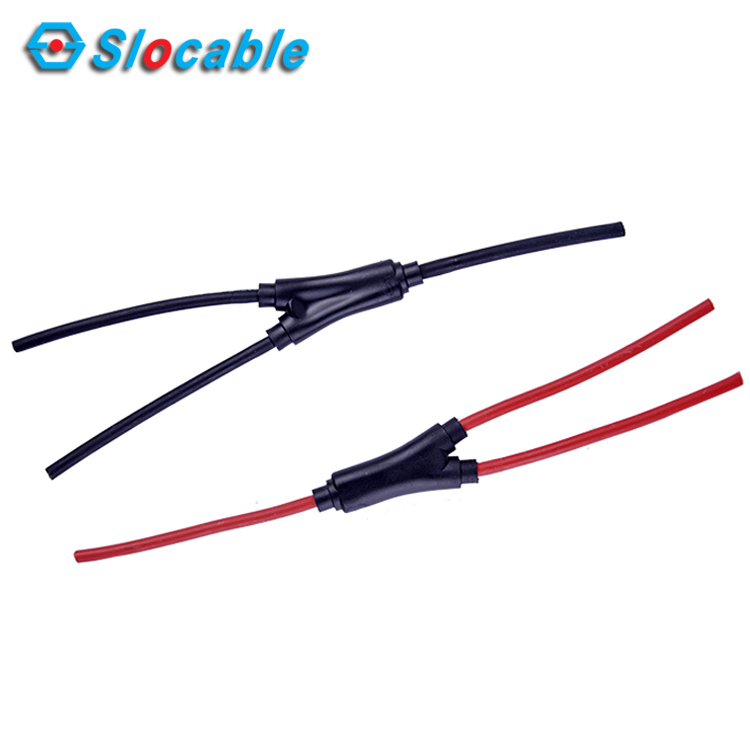

PV Cable Assemblies – Y Type Extension Cable with MC4 Connector
- Product Size: 2.5mm, 4mm, 6mm, 10mm
- Product Material: Solar Cable, MC4
PV Y Branch Cable is specialized used in Solar PV system between the solar panel and Inverter or controller box.They’re UV resistance and can be working outdoor for 25years.
PV Cable Assemblies – Y Type Extension Cable with MC4 Connector
Description of PV Cables and MC4 Connectors

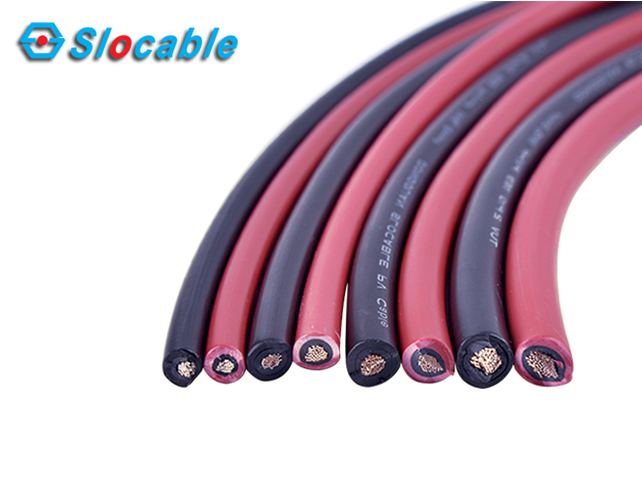

PV Cables / Wires
Technical Data
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | XLPE (XLPO) |
| Contact Material: | 99.7% Copper, Tin plated |
| Character: | UV Resistance, Halogen-free |
| Ambient Temperature: | -40℃~+90℃ |
| Flame Class : | EN 50625 / UL 1571 |
| Color: | Black / Red / Blue |

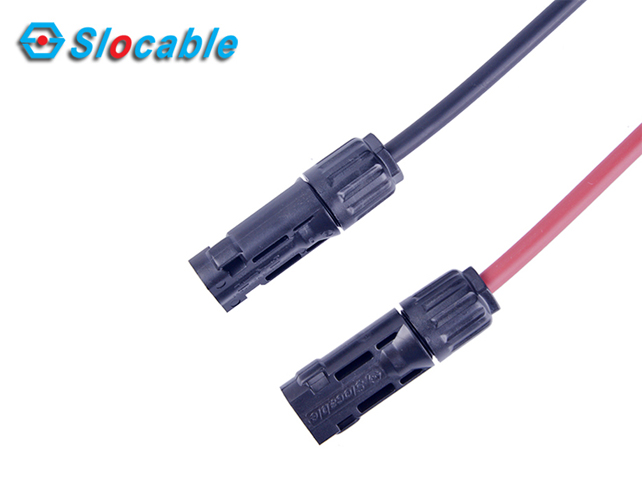

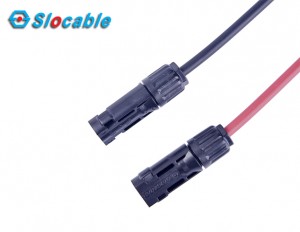

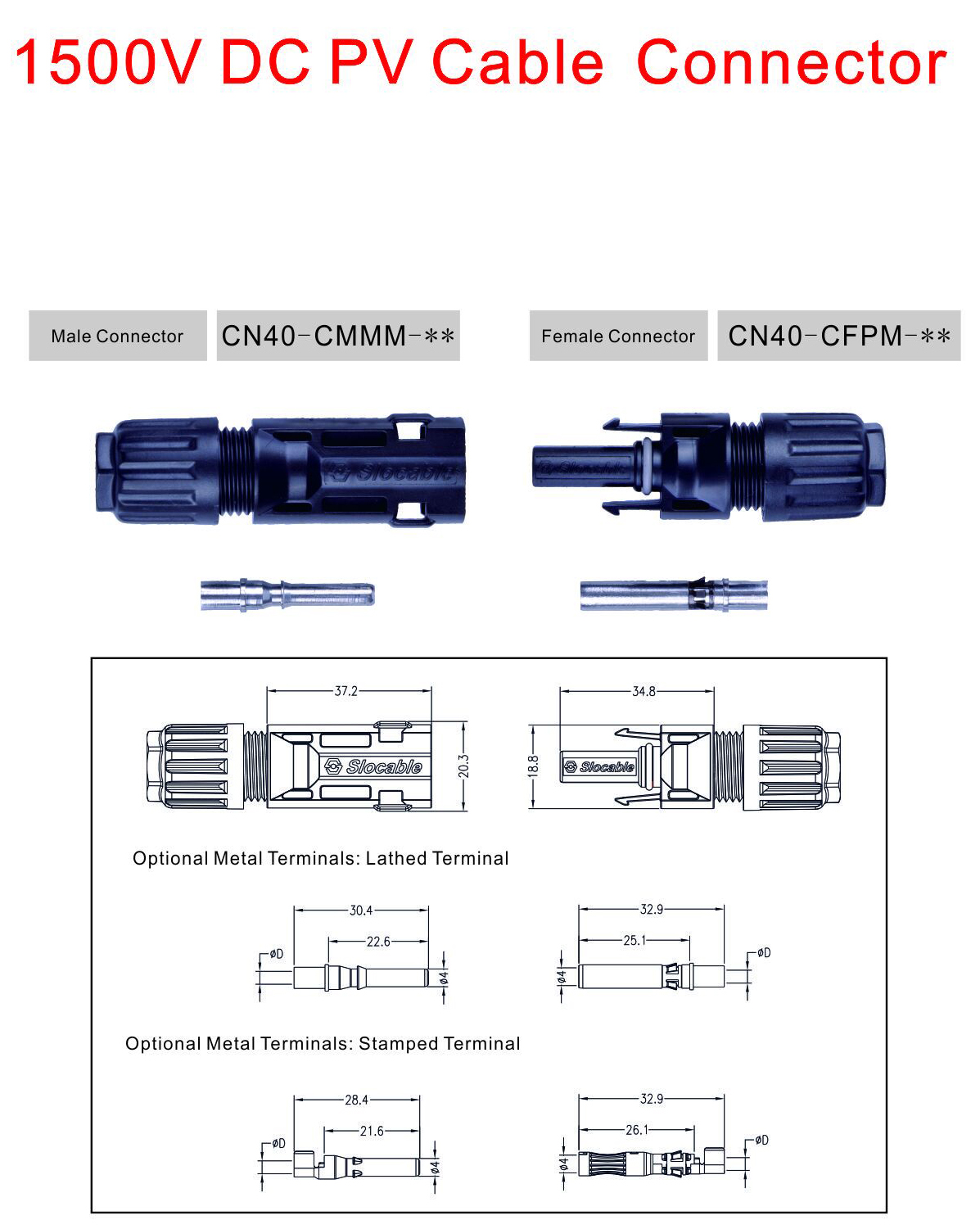

MC4 Connectors
Technical Data
| Rated Current: | 50A |
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | PPO |
| Contact Material: | Copper, Tin plated |
| Waterproof Protection: | IP68 |
| Contact Resistance: | <0.5mΩ |
| Ambient Temperature: | -40℃~+85℃ |
| Flame Class : | UL94-V0 |
| Suitable Cable : | 2.5-6mm2 (14-10AWG) |

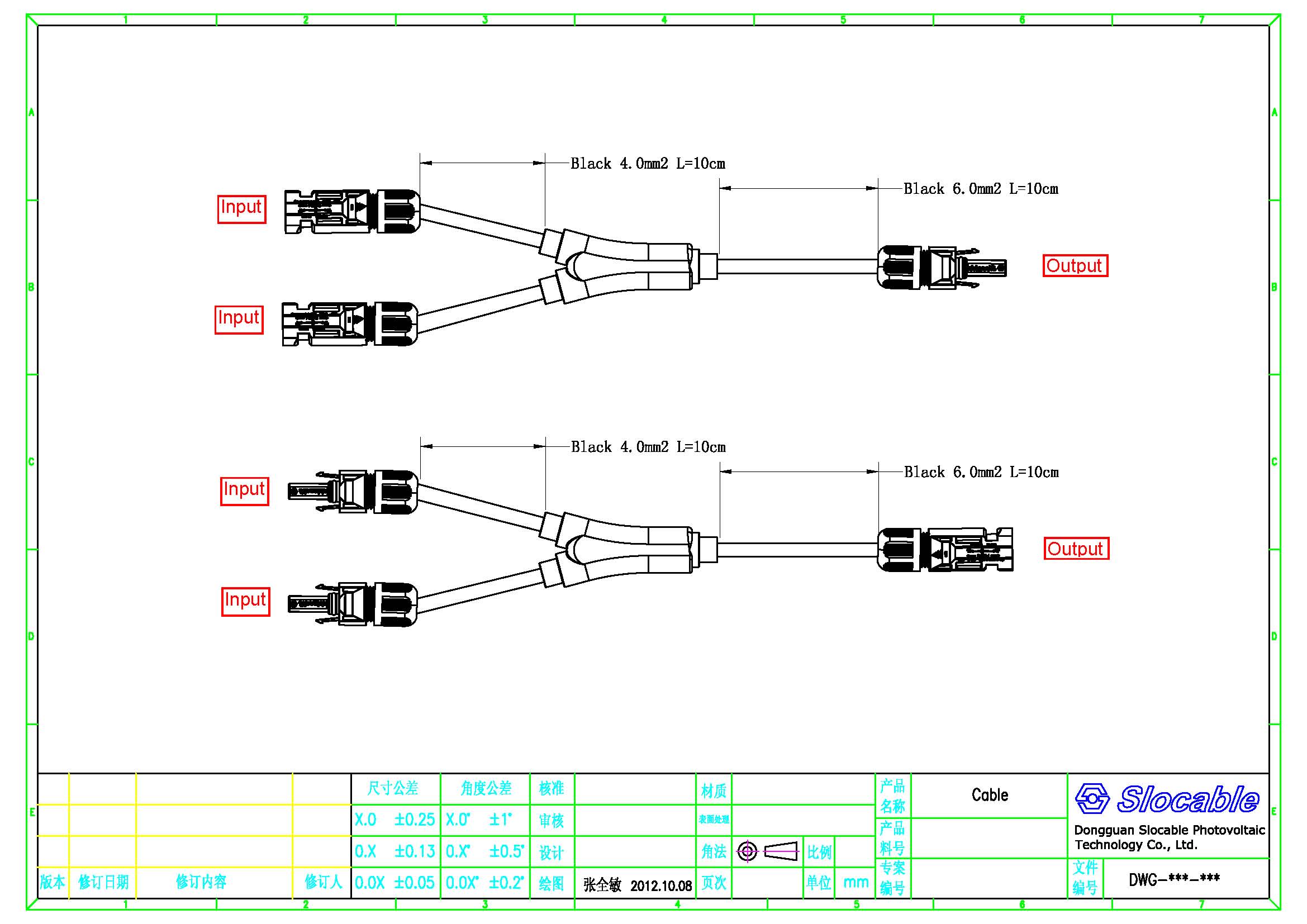

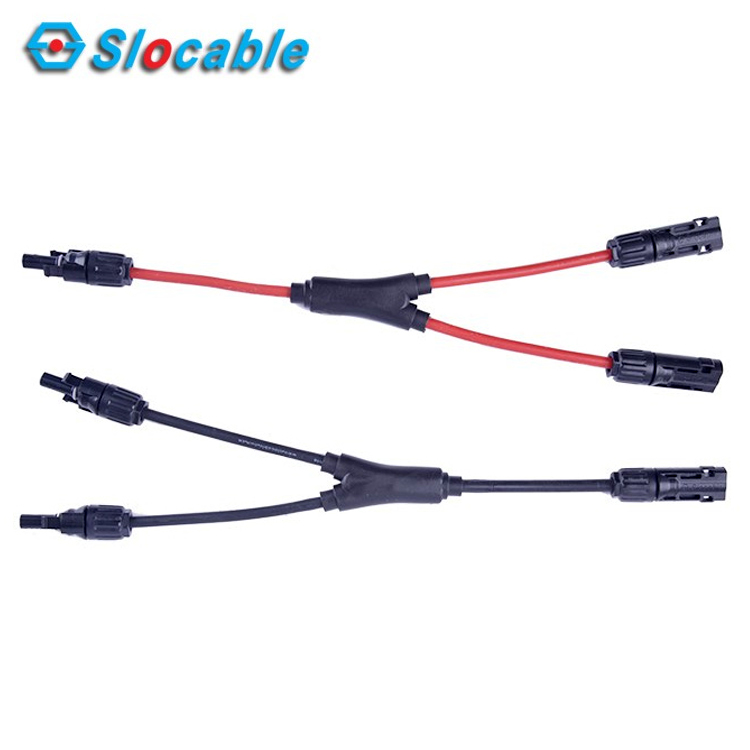

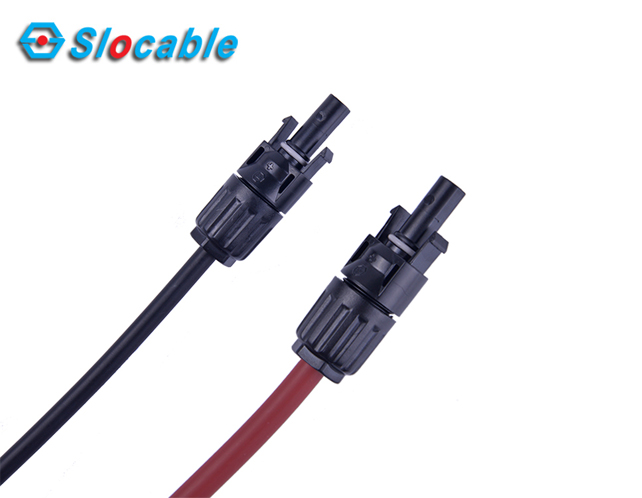

Pictures of Solar Panel Extension Cable:
(Size and Length of Cables: customized)
If any inquiry, please feel free to contact us. Many thanks!
-
