PV Panel Connectors OEM/ODM

Product Size: For 2.5mm,4mm,6mm cable
Product Material: Tinned Copper PPO

These connectors fit most solar panels with MC4 connectors. Please note that these connectors are not compatible with other types of MC connectors such as MC3. These connectors fit any cable with 2.5mm, 4.0mm and 6.0mm cross-section. The connectors are fully waterproof which means that they can be used outdoors in all weather conditions.

Slocable pv panel connectors OEM/ODM Manufacturer

solar panel connectors types

Connectors are of various types, the major ones being MC3, MC4, PV and Tyco Solarlok. Similarly, they come in many shapes such as T-Joint, U-Joint, X-Joint or Y-Joint. The most common type of solar connector is the MC4 connector.

Description of Panel MC4 Connector

· Compatible MC4

· Standard thickness 0.4 terminals

· Simple on-site processing

· Mating safety provided by keyed housings

· Multiple plugging and unplugging cycles

· Accommodates PV cables with different insulation diameters

· High current carrying capacity

Ip68 Solar Connector
Technical Data of Panel MC4 Connector

Rated Current:	50A
Rated Voltage:	1000V/1500V DC
Certificate:	TUV , CE , ISO
Insulation Material:	PPO
Contact Material:	Copper, Tin plated
Waterproof Protection:	IP68
Contact Resistance:	<0.5mΩ
Ambient Temperature:	-40℃~+85℃
Flame Class :	UL94-V0
Suitable Cable :	2.5-6mm2 (14-10AWG)

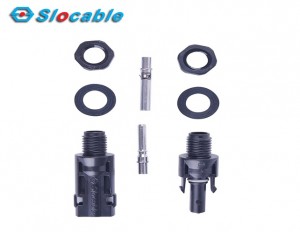

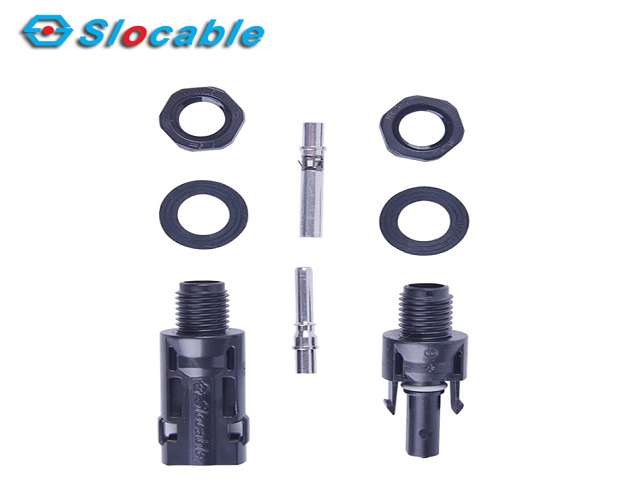

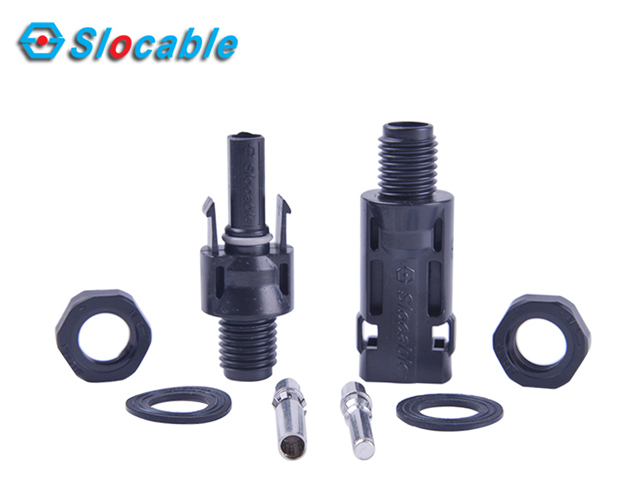

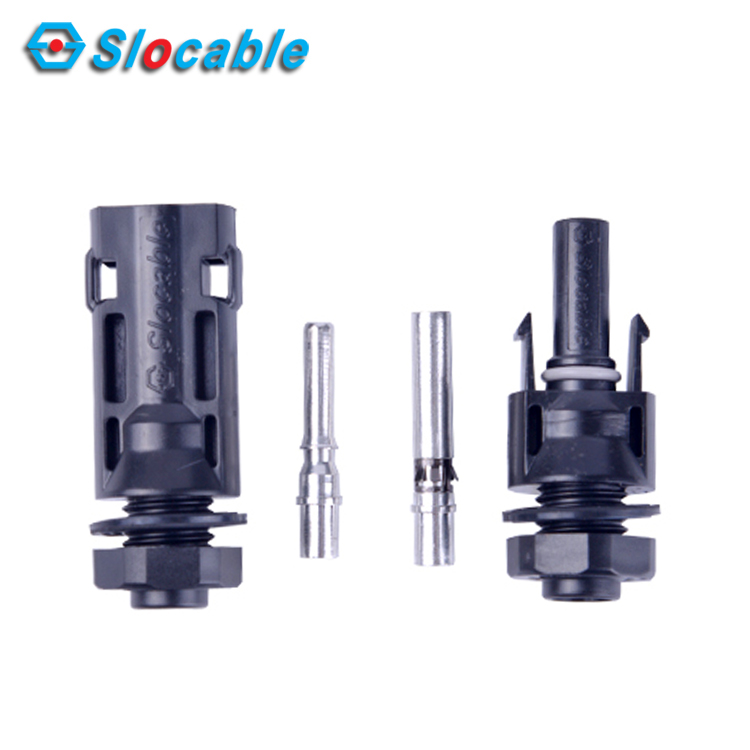

Pictures of Panel MC4 Connector

pv panel connectors

Comparison of MC4 Connector
