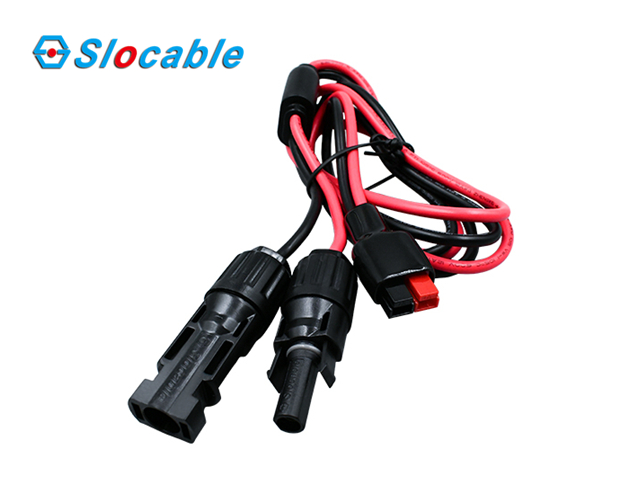

45Amp Solar MC4 to Anderson Powerpole Connector Adapter Cable
- Rated Current: 45A
- Waterproof Level: IP68
- Application: Automobile, Solar Battery Supply
Solar MC4 to Anderson Powerpole Connector Adapter Cable is the best choice for charging portable solar power stations and home RVs, it adapts your solar panel MC4 connectors to an Anderson Powerpole connector.
Technical Data
| Insulation Material: | PC(Polycarbonate) | Contact material: | Copper, tin plated |
| Rated current: | 45A(6AWG-16AWG) | Support card number: | 2 in 1 |
| Rated Voltage: | 600V DC | Card reader type: | Fast plug |
| Test voltage: | 2.2kV(50Hz,1min) | Ambient temperature range: | -20℃~+105℃ |
| Contact resistance: | <200mΩ | Flame class: | UL94-V0 |
| Pin number: | 2 pin | Connecting system: | Crimping connection |
| Certificate: | TUV, CE, ROHS | Suitable cable cross section: | 12AWG |

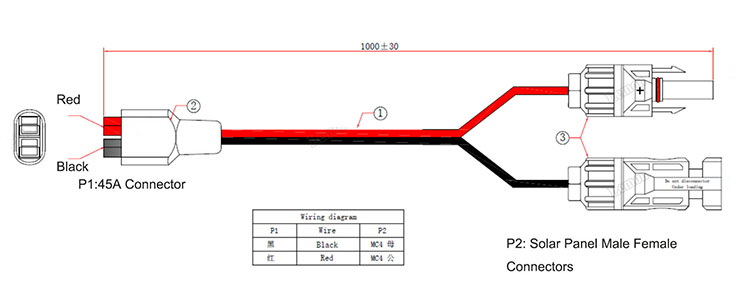

Detail Image
Features of MC4 to Anderson Powerpole Connector
1. Planar contact technology, the contact resistance under strong current is minimized, and the phenomenon of electric spark generated in the process of plug and plug is minimized, and hot plug is supported.
2. Wiping action generated during disconnection can clean the contact surface.
3. No male and female housing, simplified assembly requirements, to reduce inventory.
4. Color housing, according to the color to determine the industry standard recommended voltage.
5. Anti-stolid design, different colors of interface, to avoid two rubber shell with different voltage coding color with plug, to eliminate the possibility of power and socket misplug.
6. Super resistance to hydrocarbon and solvent corrosion and impact resistance.

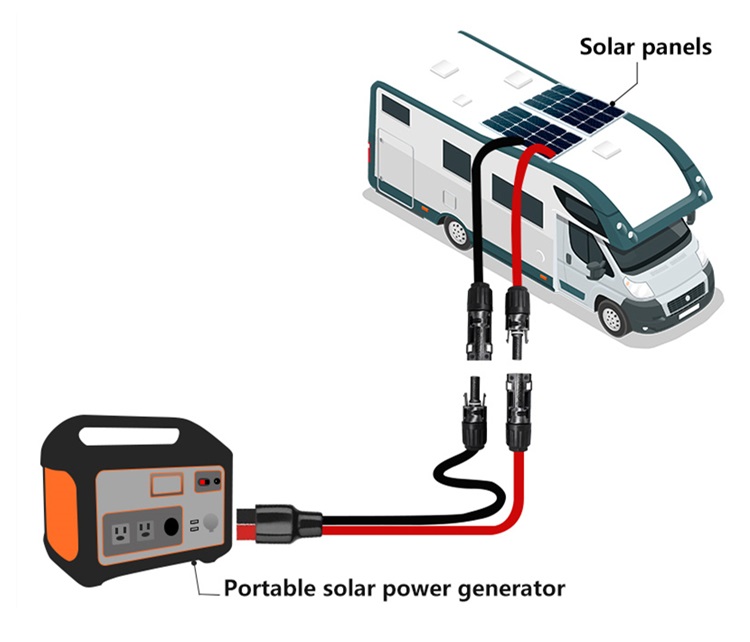

Application
