PV Y Branch Cable is specialized used in Solar PV system between the solar panel and Inverter or controller box.They’re UV resistance and can be working outdoor for 25years.
We will usually satisfy our respected shoppers with our superior good quality, fantastic selling price and good company due to we’re a lot more expert and far more hard-working and do it in cost-effective way for Wholesale Discount China Power Cable with Mc4 Plug to Dac for Solar Power Charging DIY Kit, We imagine we are going to become a leader in developing and producing high-quality products and solutions in both Chinese and international markets. We hope to cooperate with more friends for mutual advantages.
We will usually satisfy our respected shoppers with our superior good quality, fantastic selling price and good company due to we’re a lot more expert and far more hard-working and do it in cost-effective way for China Power Cable, Power Plug, We’ve got constantly insisted on the evolution of solutions, spent good funds and human resource in technological upgrading, and facilitate production improvement, meeting the wants of prospects from all countries and regions.
PV Cable Assemblies – Y Type Extension Cable with MC4 Connector

Description of PV Cables and MC4 Connectors
PV Cables / Wires


Technical Data
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | XLPE (XLPO) |
| Contact Material: | 99.7% Copper, Tin plated |
| Character: | UV Resistance, Halogen-free |
| Ambient Temperature: | -40℃~+90℃ |
| Flame Class : | EN 50625 / UL 1571 |
| Color: | Black / Red / Blue |
MC4 Connectors

Technical Data
| Rated Current: | 50A |
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | PPO |
| Contact Material: | Copper, Tin plated |
| Waterproof Protection: | IP68 |
| Contact Resistance: | <5mΩ |
| Ambient Temperature: | -40℃~+85℃ |
| Flame Class : | UL94-V0 |
| Suitable Cable : | 2.5-6mm2 (14-10AWG) |

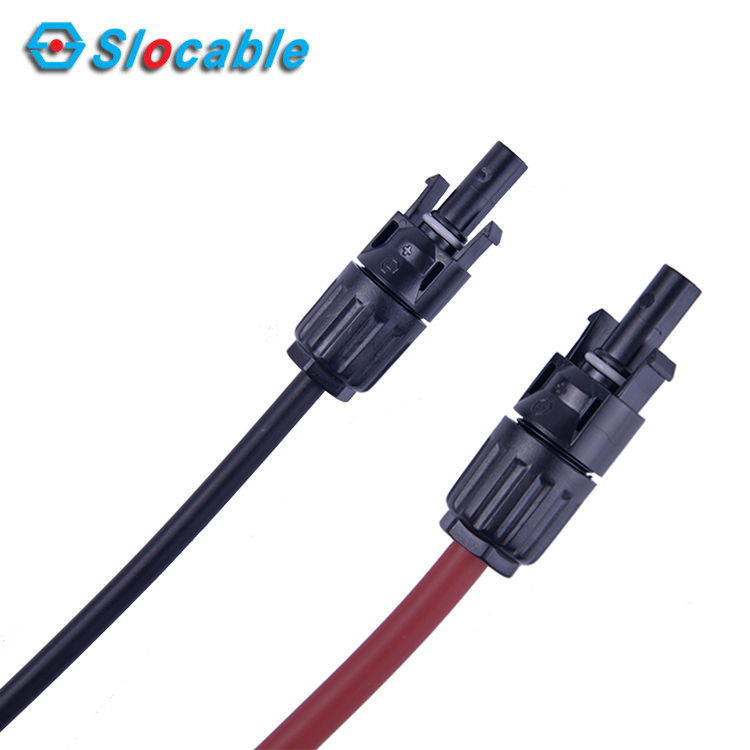

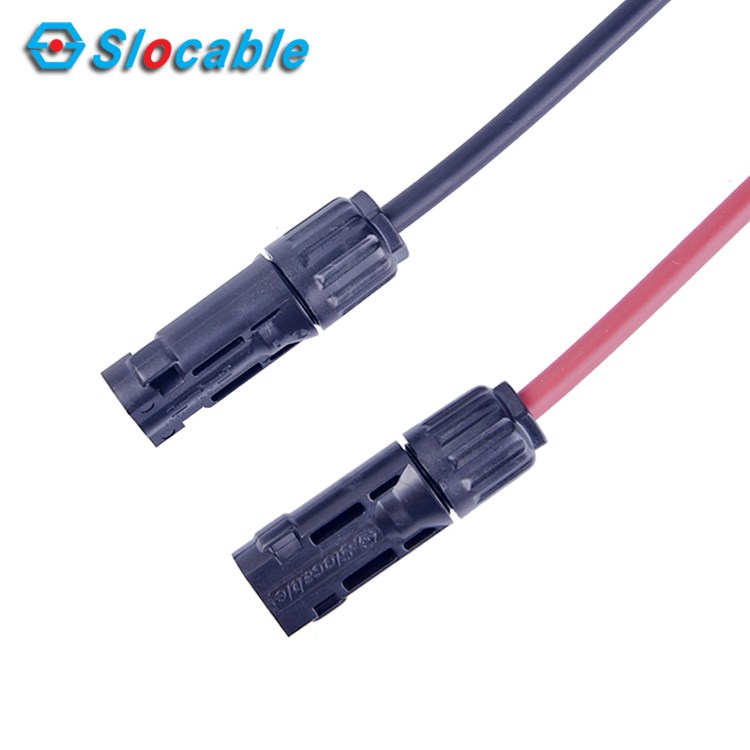

Pictures of Solar Panel Extension Cable:
(Size and Length of Cables: customized)




If any inquiry, please feel free to contact us. Many thanks!
