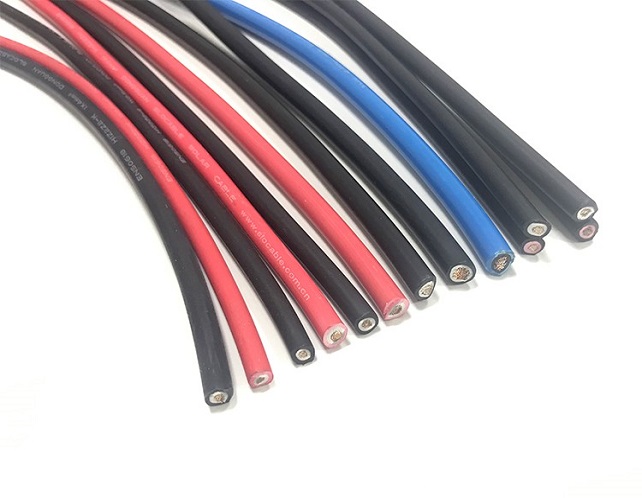

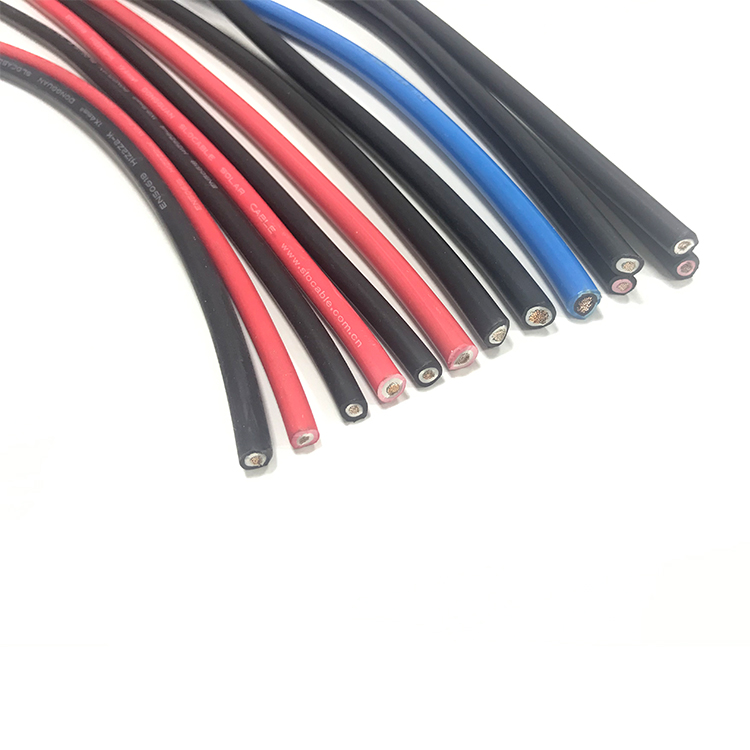

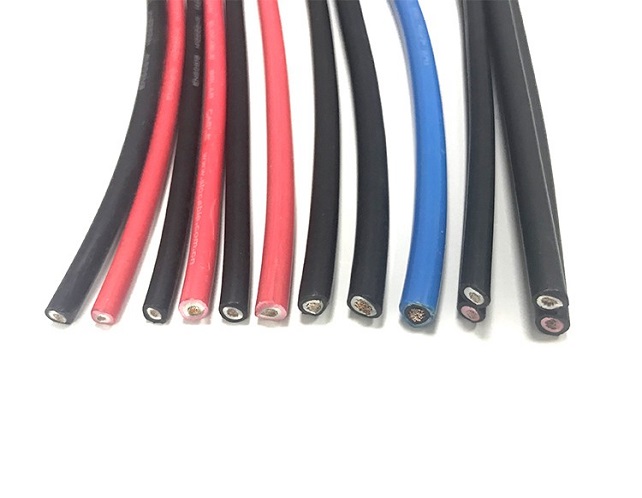

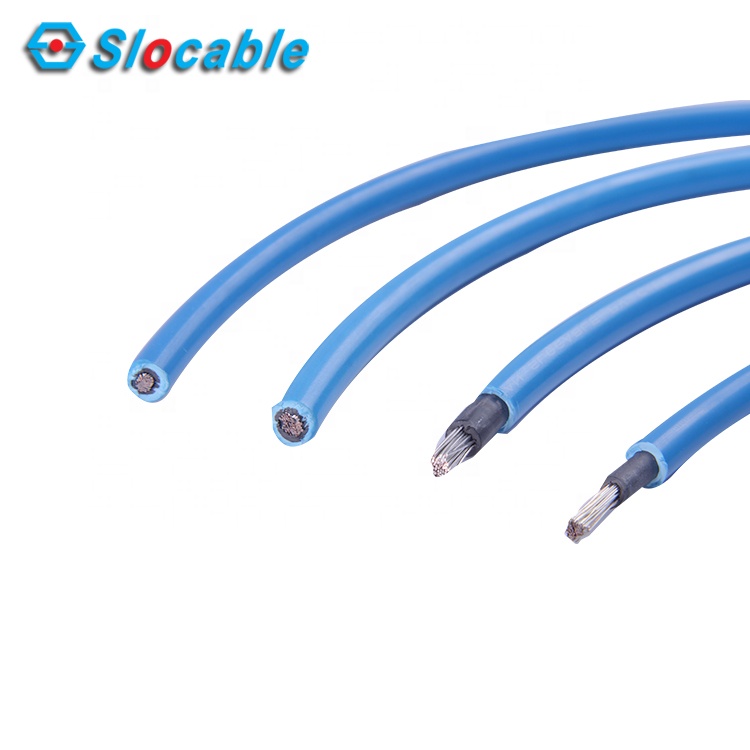

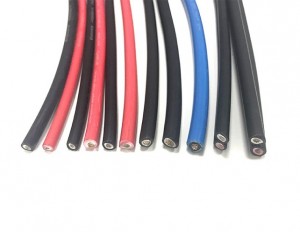

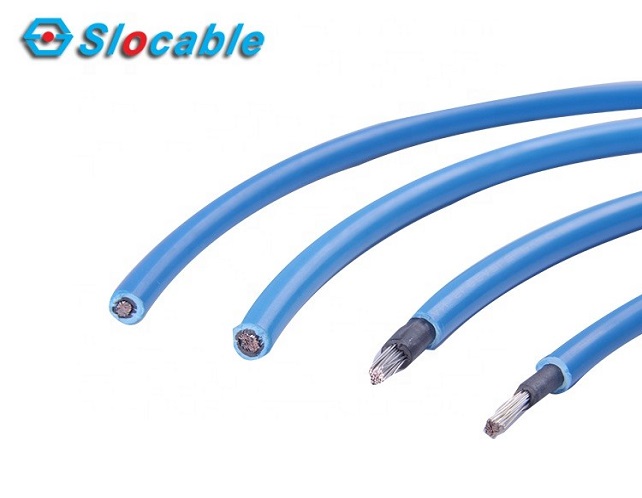

Customized 6mm Solar Panel Cable
- Product Size: 1x2.5mm, 1x4mm, 1x6mm, 1x10mm, 1x16mm
- Product Material: Tinned Copper, XLPE Insulation
Slocable 6mm solar panel cable is suitable for connection of photovoltaic panels or plates or between panels to the inverter DC to AC. Flexible cables are suitable for mobile and fixed installations, both indoors and outdoors. High-Security Cables (AS) resistant to ozone and UV, fire retardant, low smoke and halogen-free.
Wholesale ODM China Slocable Customized 6mm solar panel cable
DC Solar Cable 6 square mm wire
Product Description
·Dual wall insulation.
·Electron beam cross-linked
·Excellent resistance to U.V, oil, greases, oxygen and ozone
·Excellent resistance to abrasion
·Halogen free, flame retardant, low toxicity
·Excellent flexibility and stripping performance
·High Voltage and Current carrying capacity
·TUV, CE, ISO approved

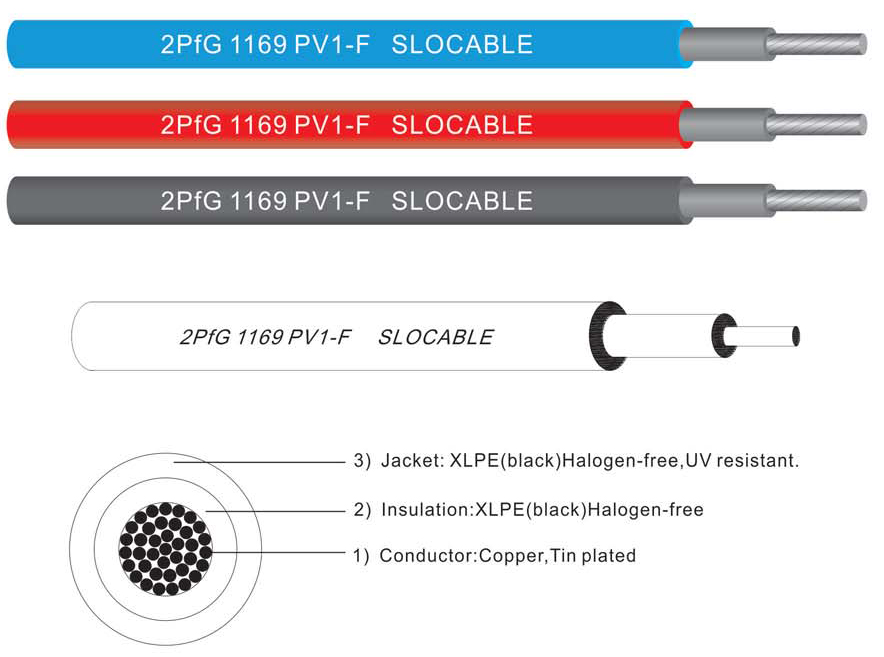

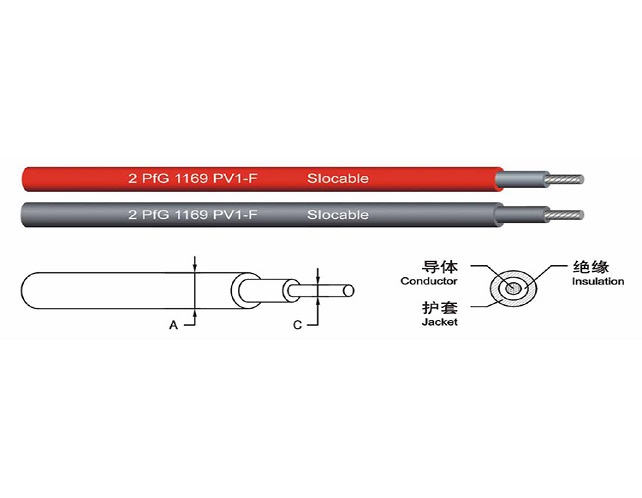

3) Jacket: XLPE (XLPO),Halogen-free, UV resistant.
2) Insulation: XLPE (XLPO),Halogen-free .
1) Conductor: 99.99% Stand Tinned Copper Wire
Technical Data of Solar Cable
| Rated Voltage: | 1000V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | XLPE (XLPO) |
| Contact Material: | 99.7% Copper, Tin plated |
| Character: | UV Resistance, Halogen-free |
| Ambient Temperature: | -40℃~+90℃ |
| Flame Class : | EN 50625 / UL 1571 |
| Color: | Black / Red / Blue |
Advantages
99.99% Copper | Dual Wall Insulation | UV & Flame Resistance
Low Resistance | Low Eccentricity Ratio | Excellent Flexibility
1. We have 12 years of manufacturing experience. Exporting solar products all over the world.
2. High quality, you can use our products in confidence.
3. Although our price is not expensive, we will not cut corners. We insist to use the best and new raw material to make sure the quality.
4. The warranty we promise is 5years, and the working life is reaching 25years.

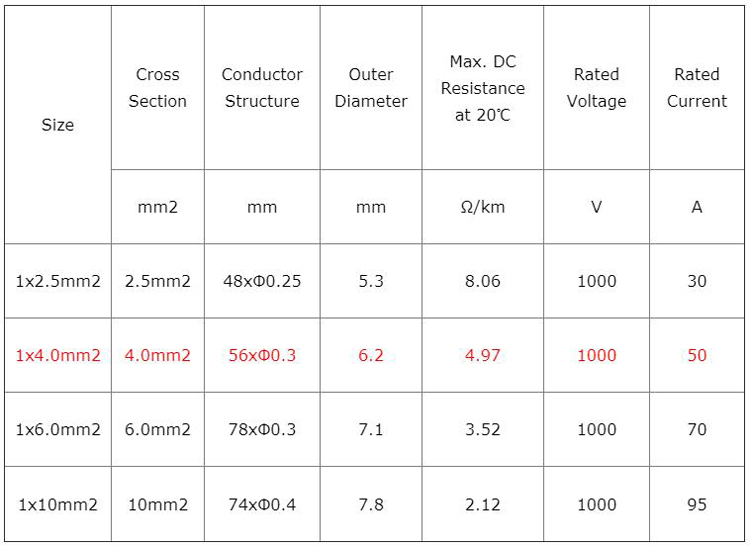

Solar PV Cable Specification
| Name : | Single Core Solar Cable |
| Standard : | PV1-F TUV , CE , ISO |
| Size : | 1×2.5mm2 / 1x4mm2 / 1x6mm2 / 1x10mm2 / 1x16mm2 |
| Conductor : | 99.99% Strand Tinned Copper Wire |
| Insulation : | XLPE (XLPO) |
| Jacket : | XLPE (XLPO) |
| Color : | Black / Red / Blue |
| Temperature Range : | -40℃ ~ 90℃ (Max. +120℃ for conductor) |
| Outer Diameter : | 5.4mm / 6.2mm / 7.1mm / 7.8mm / 10.2mm |
| Rated Current : | 30A / 50A / 70A / 90A / 132A |
| Rated Voltage : | AC 0.6 / 1.0 KV ; DC 1.0 / 1.8 KV |
The extremely rich projects management experiences and one particular to a person support model make the superior importance of small business communication and our easy understanding of your expectations for Wholesale ODM China Slocable Customized 6mm solar panel cable, To significantly increase our services high-quality, our business imports a large number of foreign advanced devices. Welcome clients from home and overseas to phone and inquire!
The extremely rich projects management experiences and one particular to a person support model make the superior importance of small business communication and our easy understanding of your expectations for china solar cable, dc solar cable, We’ll continue to devote ourselves to market & product development and build a well-knit service to our customer to create a more prosperous future. Please contact us today to find out how we can work together.
We supply 1000v and 1500v solar dc cable, such as 4mm solar cable and 6mm solar panel cable(solar pv cable).
If any inquiry, please feel free to contact us. Many thanks!
-
