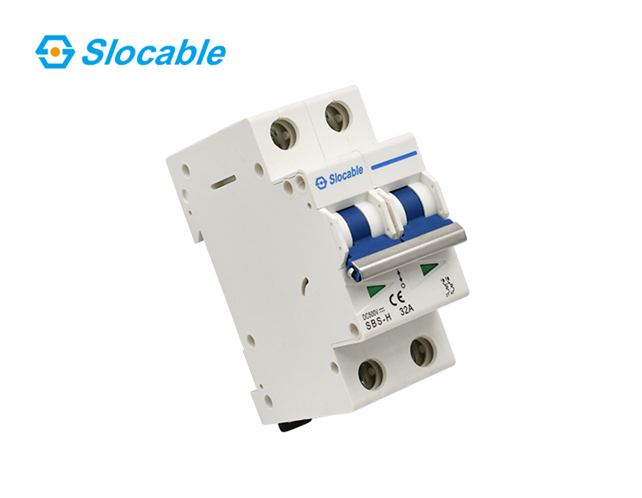

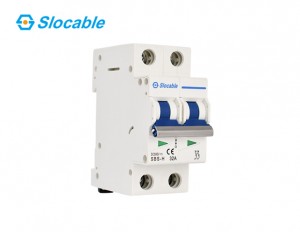

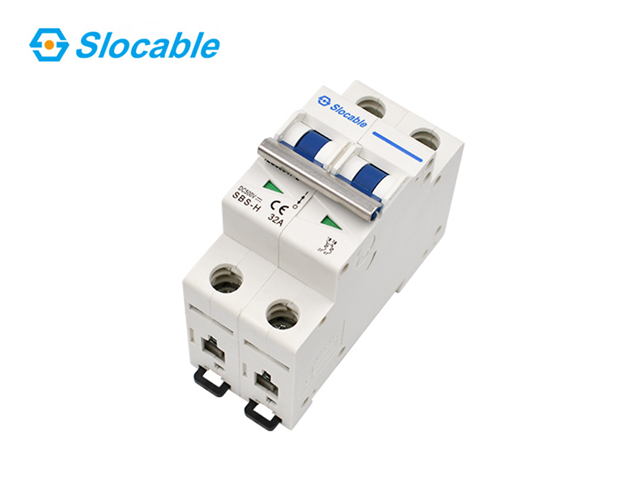

Slocable 2 Pole PV DC Solar Circuit Breaker for Solar System

Poles Number: 2P
Rated Voltage: 500V DC
Rated Current: Up to 63A of dc circuit breaker
Certificate: TUV, CE, CB, SAA, IEC, EN60947-2

PV DC Solar Circuit Breakers for Solar SLOBS-H, with capacities of load isolation and overload/short circuit protection, is designed for PV, energy storage and other DC applications, mainly placed between batteries and hybrid inverters. Max voltage up to 1000VDC, current up to 63A. The main designing criteria of these circuit breakers is to provide scientific arc extinguishing and flash barrier technology to fulfill quick and safe current interruption. Tested according to EN 60947-2, AS/NZS IEC 60947.2:2015.

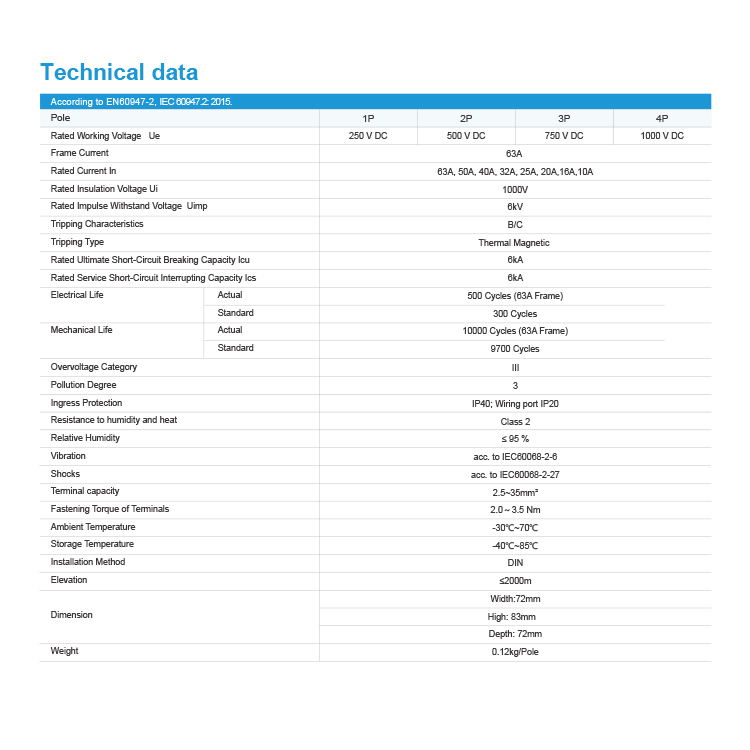

Product Features

Protection Functions: overload, short circuit
Rated short circuit breaking capacity Icu up to 6 kA
Non-polarity, Easy wiring
Rated Current In up to 63A
Rated Voltage Ue up to 1000V
Designed for PV, energy storage and other DC applications
TUV, CE, CB, SAA, EN 60947-2, AS/NZS IEC 60947.2: 2015

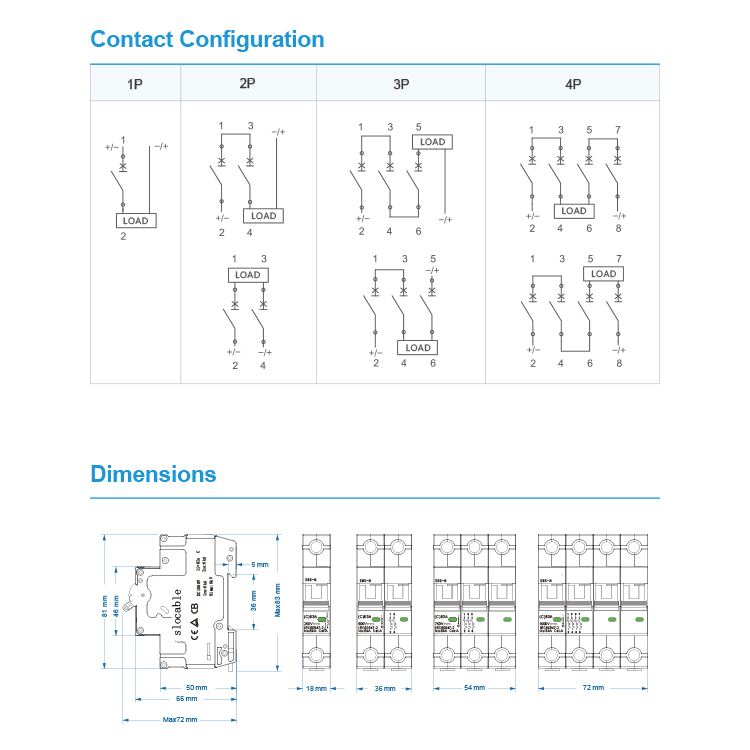

Pole: 1P, 2P, 3P, 4P

Solar DC circuit breakers are designed for general DC circuits, such as ungrounded battery-powered circuits, transportation applications and solar photovoltaic systems, standard and necessary to protect your equipment from DC overloads and short circuits. The DC circuit breaker can be reset manually after tripping.
