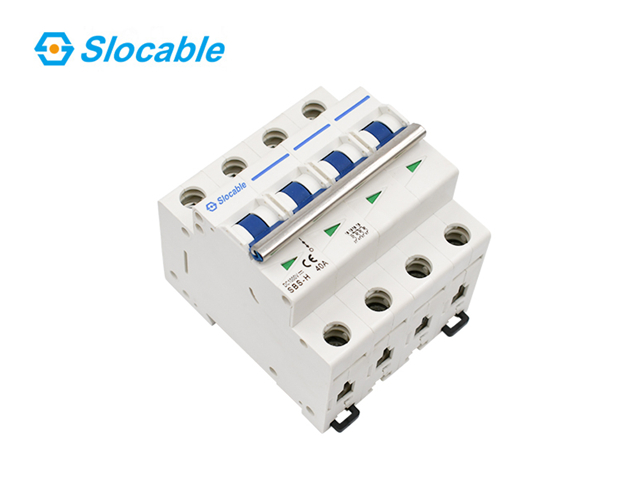

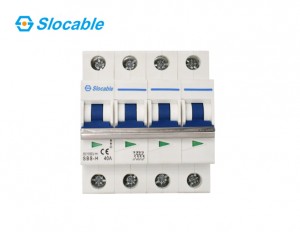

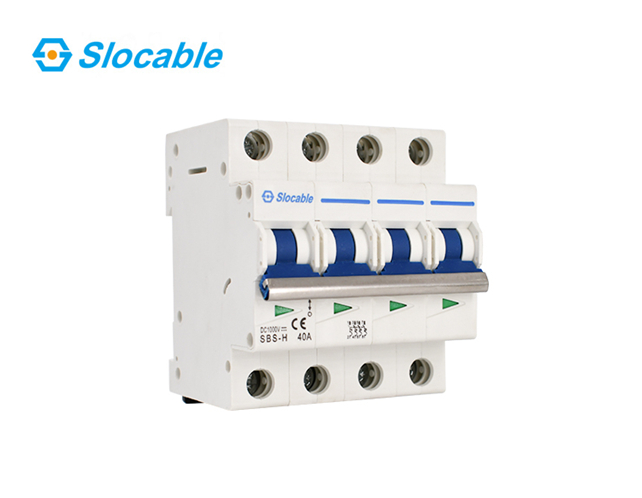

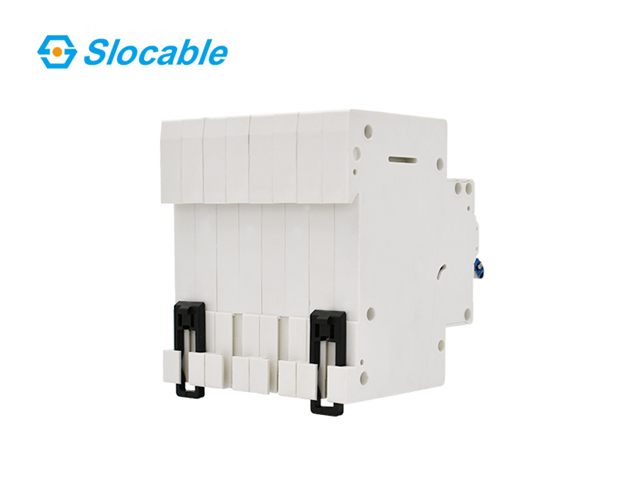

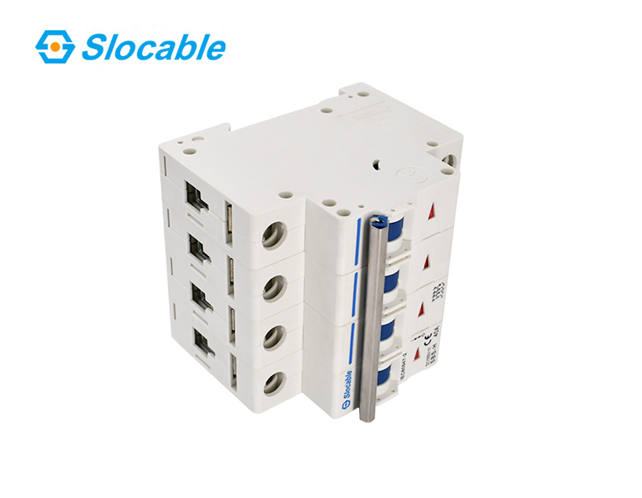

Slocable 4 Pole 63A 1000V Electric Solar DC Current Circuit Breaker
- Product Size: 4P
- Rated Voltage: 1000V
- Breaking capacity: 6KA of dc circuit breaker
This product is a 4P MCB (mini circuit breaker) with 4 protected poles, 63A current, 1000V voltage, automatically shut off the power when a circuit is threatened of becoming overloaded. Application in solar DC circuits, battery energy storage systems and UPS. The purpose of circuit protection is to protect the wiring between power sources and devices from an overload.
MCB Description
Protection Functions: overload, short circuit
Rated short circuit breaking capacity Icu up to 6 kA
Non-polarity, Easy wiring
Rated Current In up to 63A
Rated Voltage Ue up to 1000V
Designed for PV, energy storage and other DC applications
TUV, CE, CB, SAA, EN 60947-2, AS/NZS IEC 60947.2: 2015
Pole: 1P, 2P, 3P, 4P

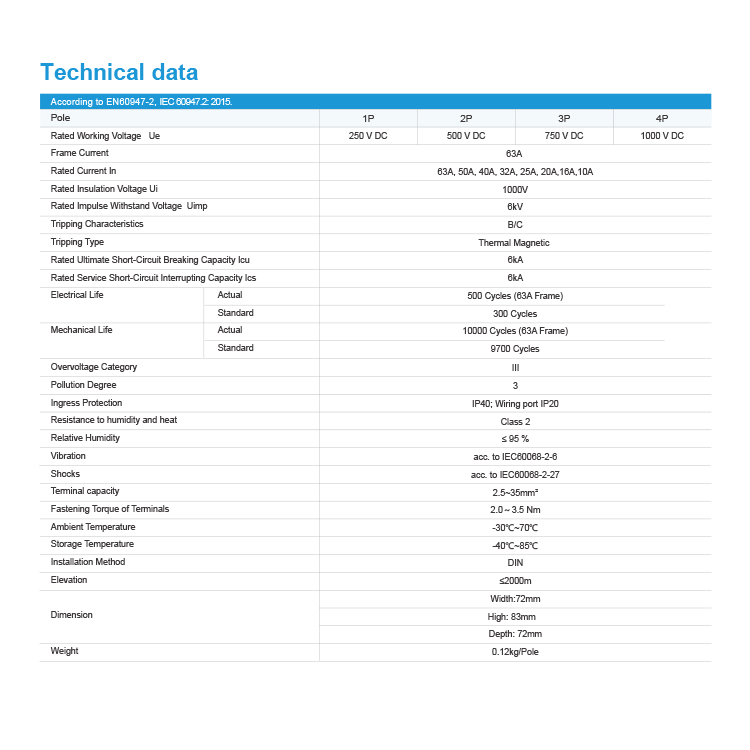

Technical Data
