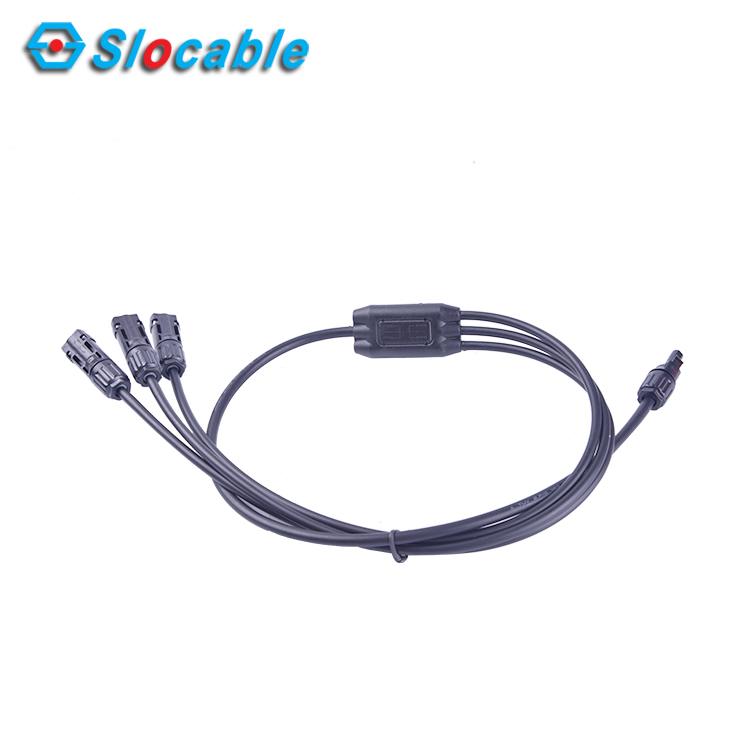

PV Cable Assemblies — 3to1 X Type Extension Cable with MC4 Connector
- Product Size: 2.5mm, 4mm, 6mm2
- Product Material: Solar Cable, MC4
3to1 X Type Branch Cable is specialized used in Solar PV system between the solar panel and Inverter or controller box.They’re UV resistance and can be working outdoor for 25years.

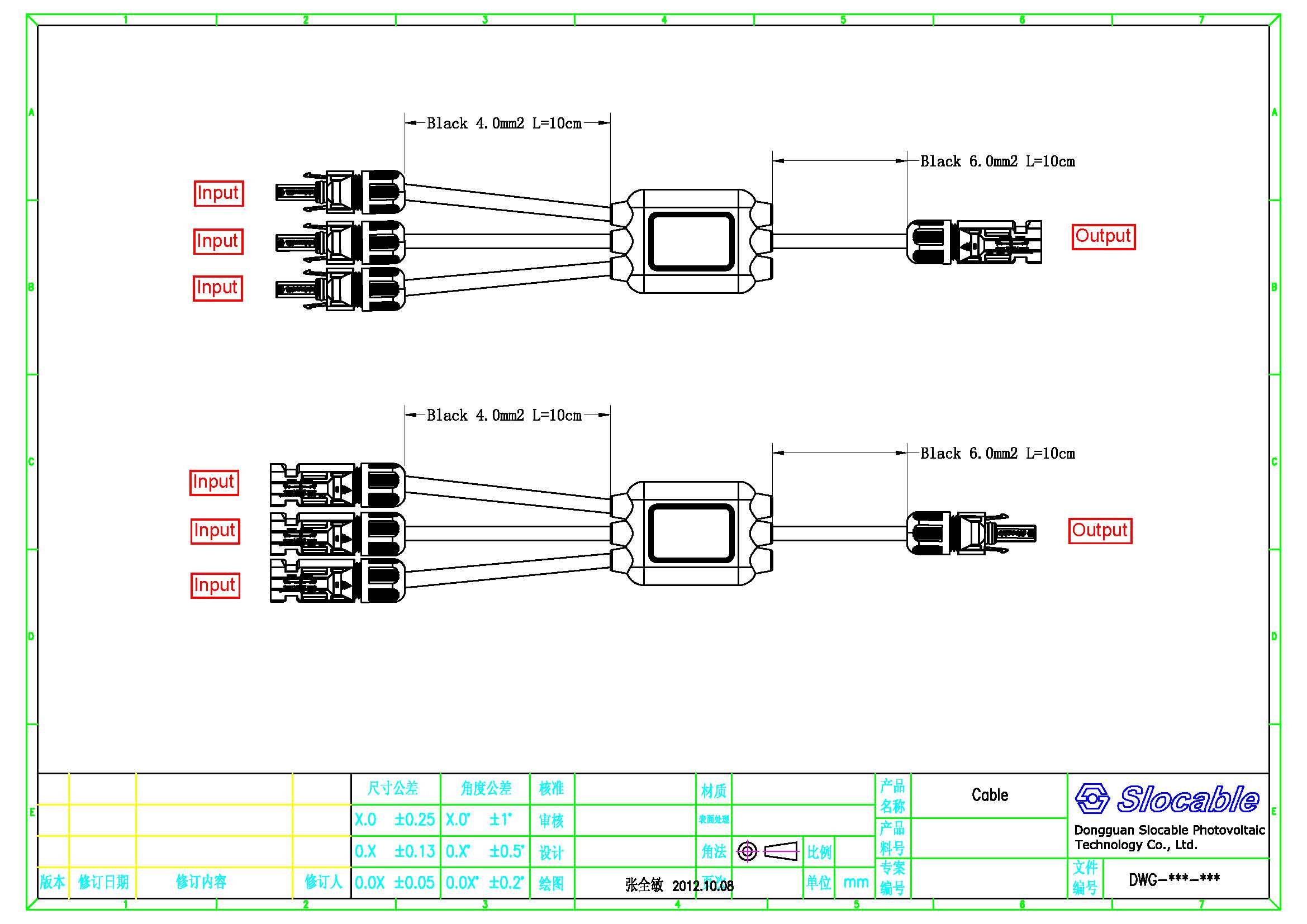

PV Cable Assemblies – 3to1 X Type Extension Cable with MC4 Connector
Description of PV Cables and MC4 Connectors

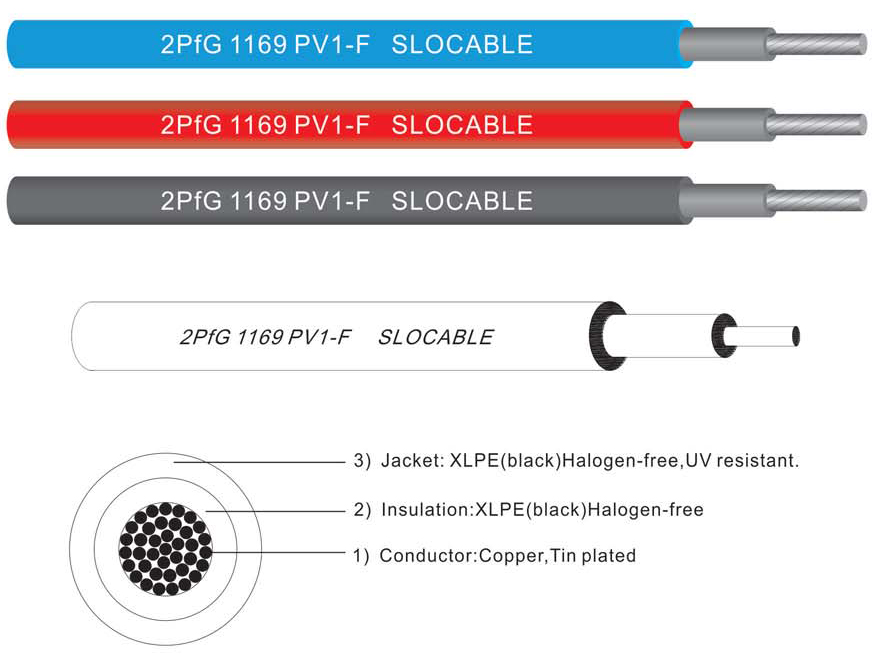

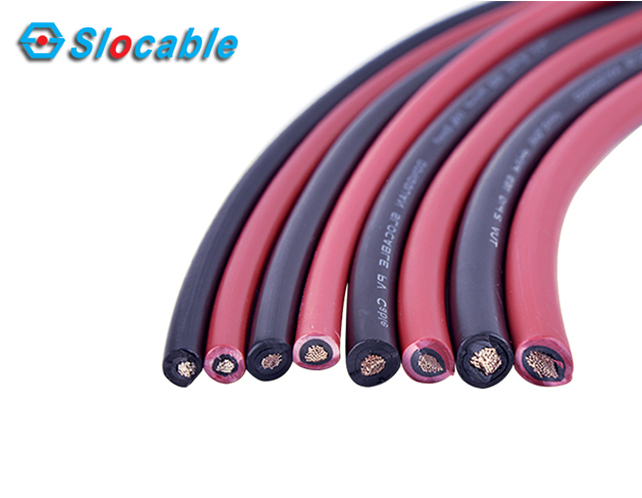

PV Cables / Wires
Technical Data
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | XLPE (XLPO) |
| Contact Material: | 99.7% Copper, Tin plated |
| Character: | UV Resistance, Halogen-free |
| Ambient Temperature: | -40℃~+90℃ |
| Flame Class : | EN 50625 / UL 1571 |
| Color: | Black / Red / Blue |

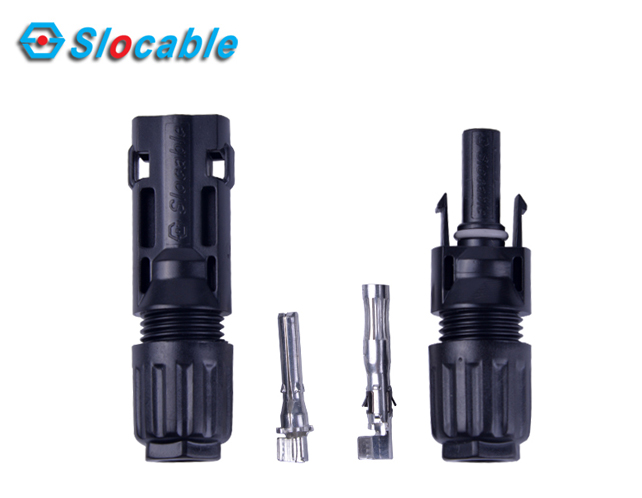

MC4 Connectors
Technical Data
| Rated Current: | 50A |
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | PPO |
| Contact Material: | Copper, Tin plated |
| Waterproof Protection: | IP68 |
| Contact Resistance: | <5mΩ |
| Ambient Temperature: | -40℃~+85℃ |
| Flame Class : | UL94-V0 |
| Suitable Cable : | 2.5-6mm2 (14-10AWG) |

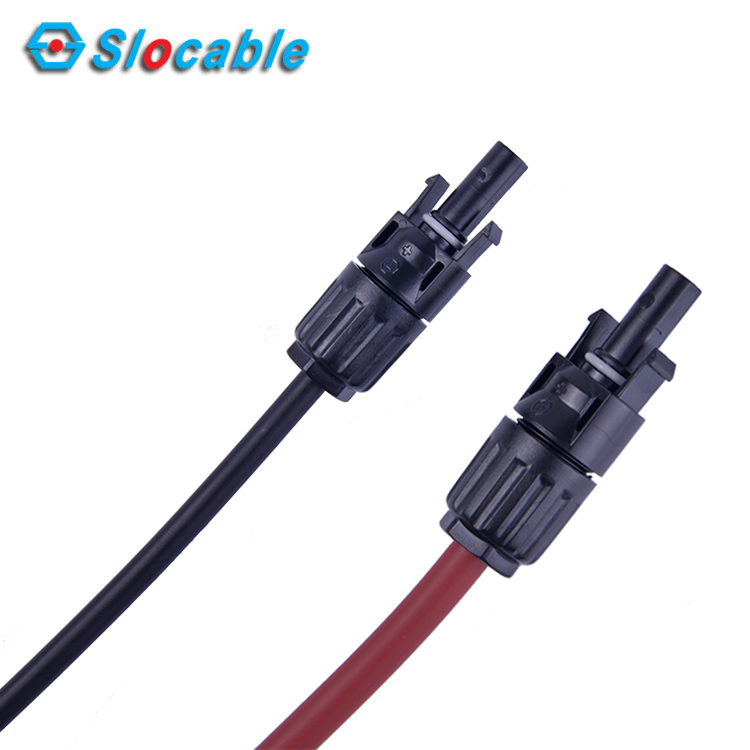

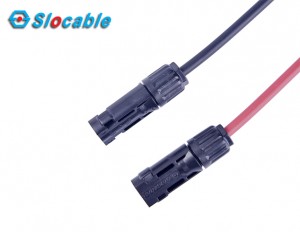

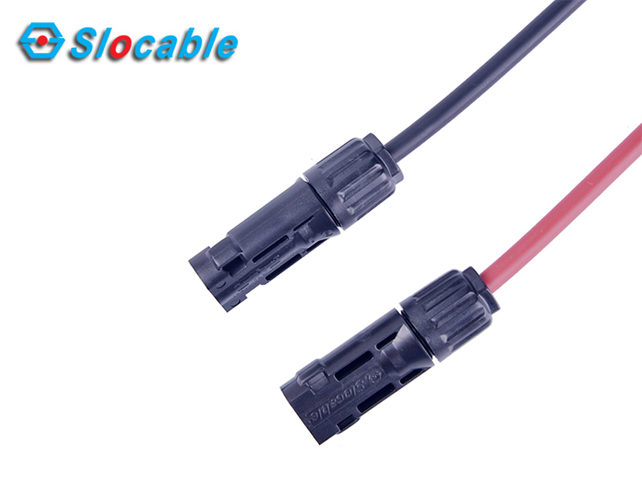

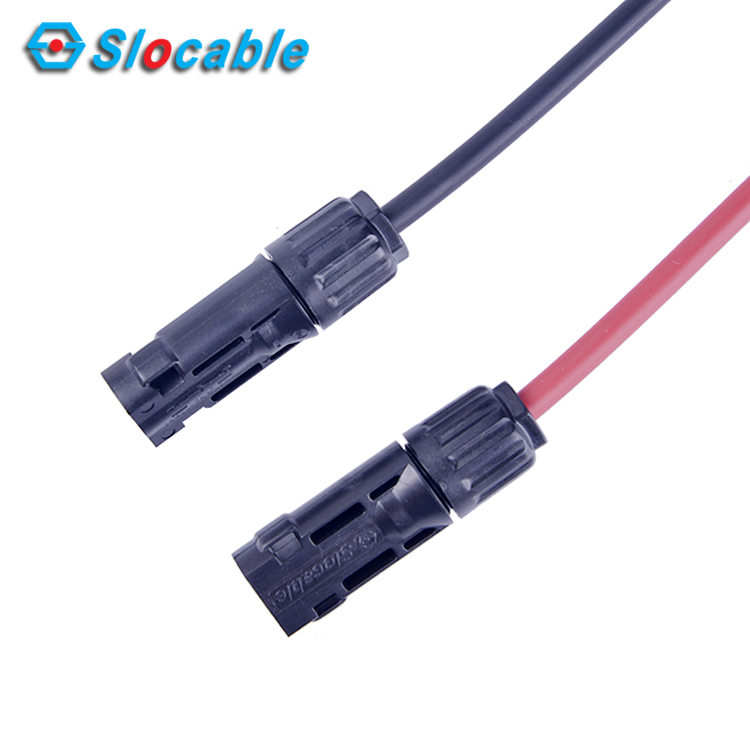

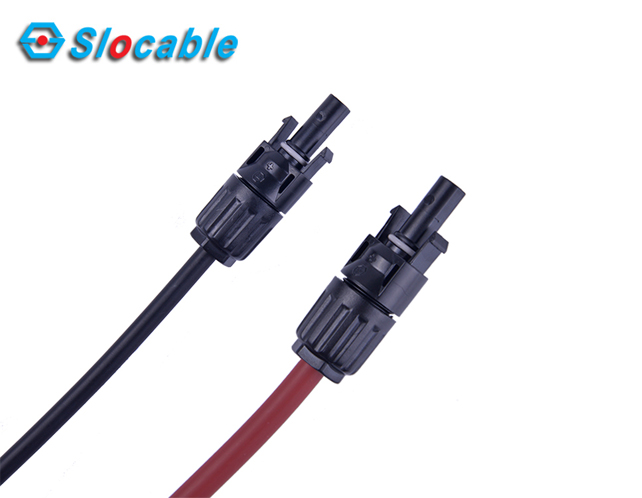

Pictures of Solar Panel Extension Cable:
(Size and Length of Cables: customized)
