Portable Solar Panel Connectors
- Product Size: For 2.5mm,4mm,6mm cable
- Product Material: Tinned Copper PPO
MC4 Solar Connector is specialized used in Solar PV system between the solar panel and Inverter or controller box. They’re UV resistant and can be working outdoor for 25years.
Slocable Big Discount China portable solar panel connectors
Description of Panel MC4 Connector
· Compatible MC4
· Standard thickness 0.4 terminals
· Simple on-site processing
· Mating safety provided by keyed housings
· Multiple plugging and unplugging cycles
· Accommodates PV cables with different insulation diameters
· High current carrying capacity
Technical Data of Panel MC4 Connector
| Rated Current: | 50A |
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | PPO |
| Contact Material: | Copper, Tin plated |
| Waterproof Protection: | IP68 |
| Contact Resistance: | <0.5mΩ |
| Ambient Temperature: | -40℃~+85℃ |
| Flame Class : | UL94-V0 |
| Suitable Cable : | 2.5-6mm2 (14-10AWG) |

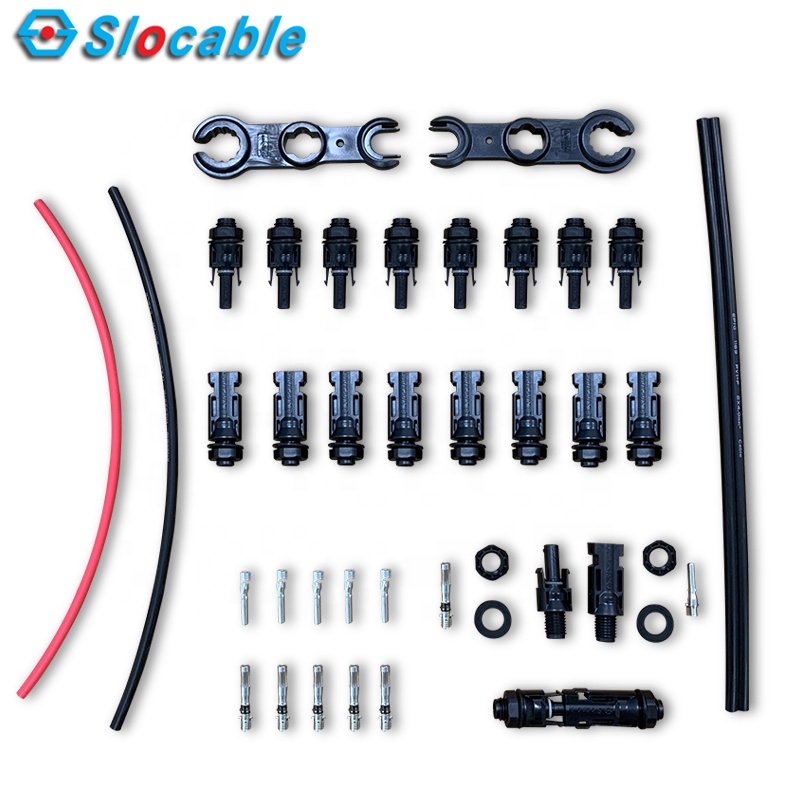

Pictures of Panel MC4 Connector
Comparison of MC4 Connector
We goal to understand excellent disfigurement from the manufacturing and supply the top support to domestic and abroad clients wholeheartedly for Big Discount China Portable Solar Panel Connectors, We welcome customers all over the world to contact us for future business relationships. Our products are the best. Once Selected, Perfect Forever!
We goal to understand excellent disfigurement from the manufacturing and supply the top support to domestic and abroad clients wholeheartedly for China Solar Power, Folding Solar Panel, We have been seeking the chances to meet all the friends from both at home and abroad for the win-win cooperation. We sincerely hope to have long-term cooperation with all of you on the basis of mutual benefit and common development.
If any inquiry, please feel free to contact us. Many thanks!
-
