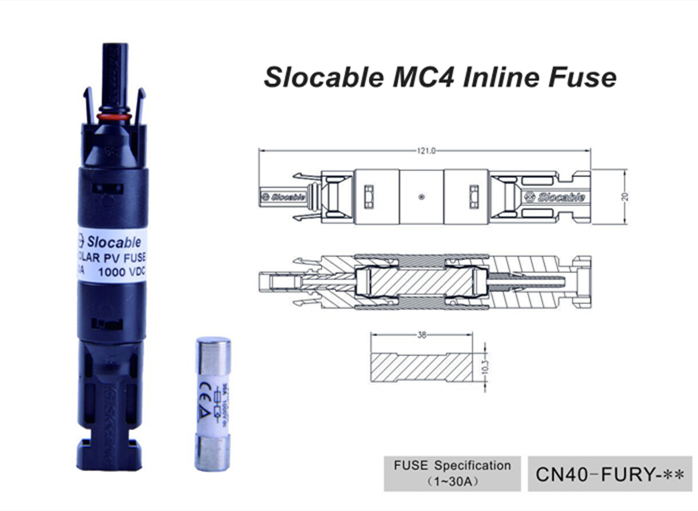

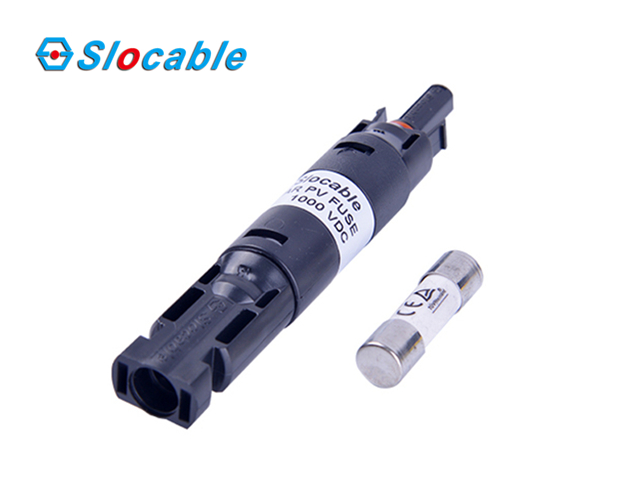

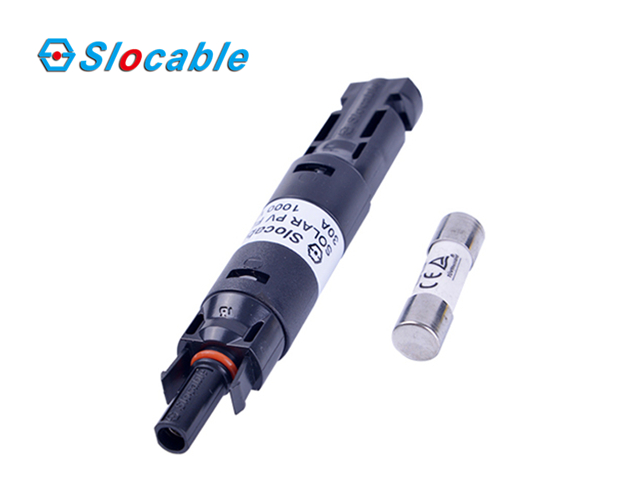

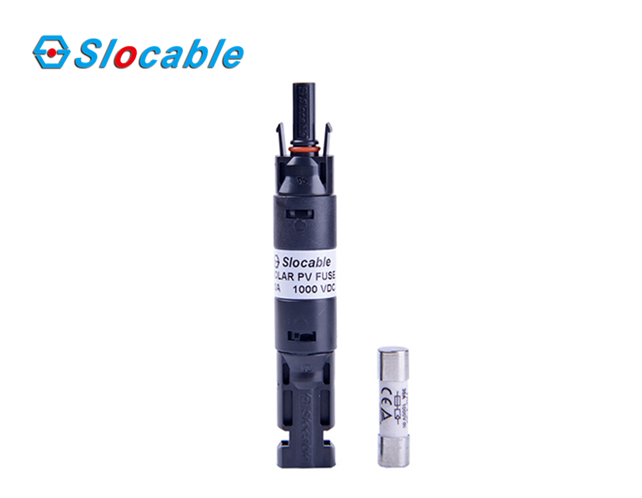

Slocable MC4 Inline Fuse Connector is specialized used in Solar PV system between the solar panel and Inverter or controller box. They’re UV resistant and can be working outdoor for 25years. These MC4 type in-line fuses are ideal for use with solar panels with a standard MC4 type wire lead. These are constructed with a crimped connection which guarantees a long-lasting, stable connection in comparison to conventional clip-in clamps.

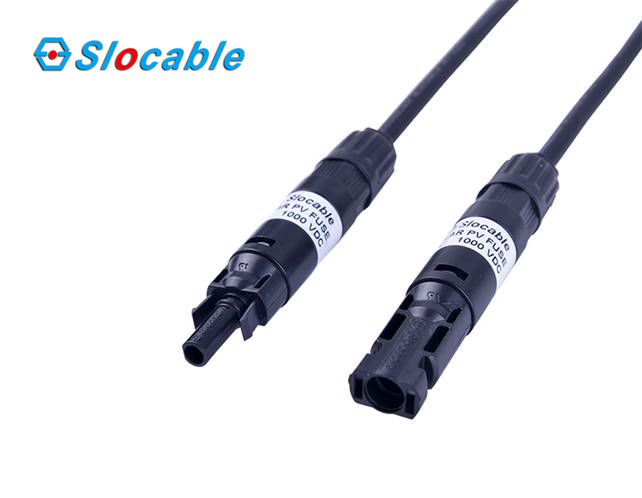

This MC4 in-line fuse features a Male and Female Connector lead on each end, making it compatible for use with an adaptor kit and solar panel leads. This MC4 connector with fuse is designed to provide complete single circuit protection to your PV array. Fuses prevent large currents from damaging the solar panels, purchasing this product provides additional protection for your solar system. Slocable provide 10A/15A/20A/30A MC4 fuse for choice.
· Compatible with MC4, fuse and solar cables with different specifications.
· Simple plug and play, widely used for PV DC application.
· High current carrying capacity, fuse can be replaced.
· Mating safety provided by keyed housings, IP68 waterproof standard.
· Auto-lock equipment of male and female points render connections easy and reliable.
Rated Current | 10A/15A/20A/30A (According to the fuse) |
Rated Voltage | 1000V/1500V DC |
Certification | TUV , CE , ISO |
Insulation Material | PPO |
Contact Material | Copper, Tin plated |
Waterproof Protection | IP68 |
Contact Resistance | <0.5mΩ |
Ambient Temperature | -40℃~+85℃ |
Flame Class | UL94-V0 |
Safety Class | II |
Test Voltage | 6000V (50Hz,1 min) |
Suitable Connector | MC4 Connector |
Suitable Cable | 2.5-6mm2 (14-10AWG) |

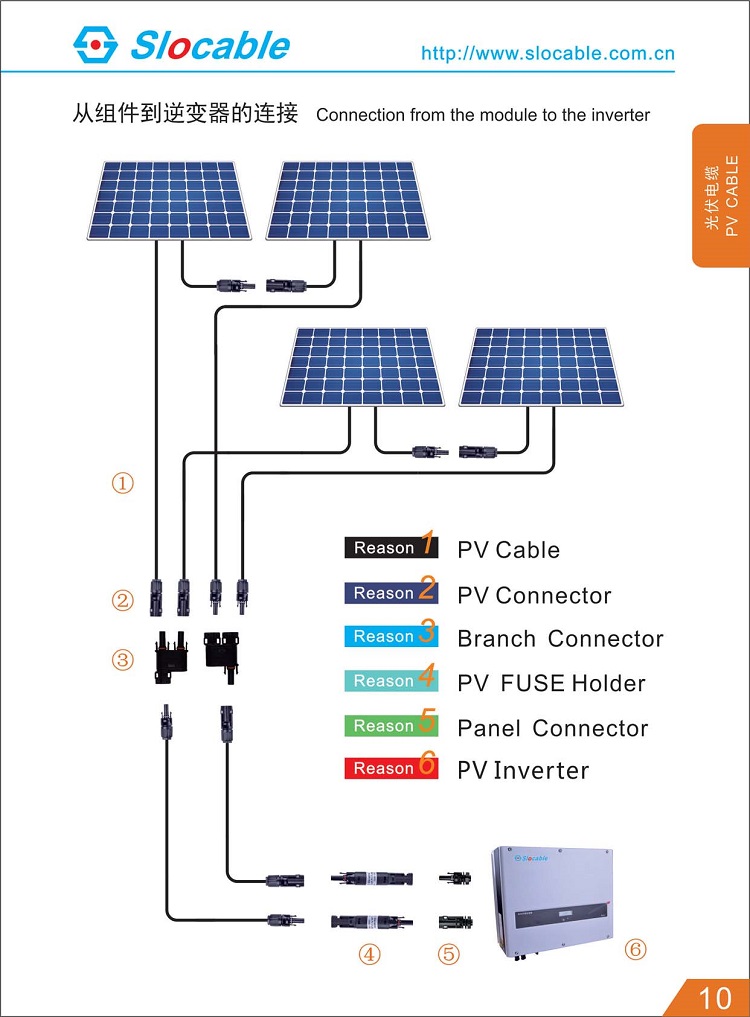

How to properly fuse a solar pv system
