MC4 pv branch connectors
- Product Size: For 2.5mm, 4mm, 6mm2 cable
- Product Material: Tinned Copper, PPO
MC4 Solar Connector is specialized used in Solar PV system between the solar panel and Inverter or controller box.They’re UV resistance and can be working outdoor for 25years.
It adheres to the tenet “Honest, industrious, enterprising, innovative” to acquire new solutions continuously. It regards prospects, success as personal success. Let us build a prosperous future hand in hand for China wholesale MC4 pv branch connectors for Solar Panels Cable, As a result of far more than 8 years of small business, we have accumulated rich experience and advanced technologies in the generation of our solutions.
It adheres to the tenet “Honest, industrious, enterprising, innovative” to acquire new solutions continuously. It regards prospects, success as personal success. Let us build a prosperous future hand in hand for China Mc4 Connector, solar connector, We have the best solutions and qualified sales and technical team. With the development of our company, we are able to deliver customers best products, good technical support, perfect after-sales service.
Slocable China wholesale MC4 pv branch connectors for Solar Panels Cable
Product Description
· Compatible MC4
· Standard thickness 0.4 terminals
· Simple on-site processing
· Mating safety provided by keyed housings
· Multiple plugging and unplugging cycles
· Accommodates PV cables with different insulation diameters
· High current carrying capacity
Technical Data
| Rated Current: | 50A |
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | PPO |
| Contact Material: | Copper, Tin plated |
| Waterproof Protection: | IP68 |
| Contact Resistance: | <0.5mΩ |
| Ambient Temperature: | -40℃~+85℃ |
| Flame Class : | UL94-V0 |
| Suitable Cable : | 2.5-6mm2 (14-10AWG) |

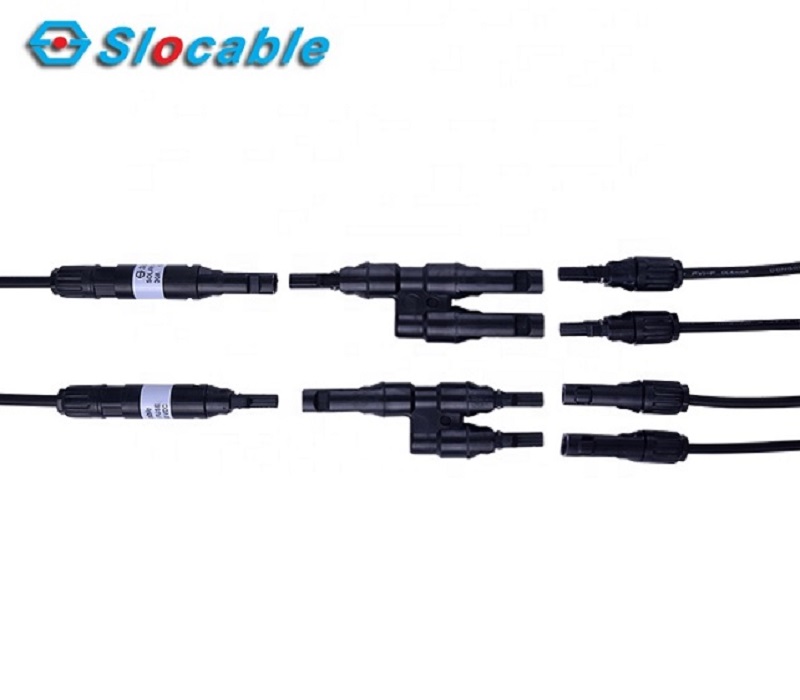

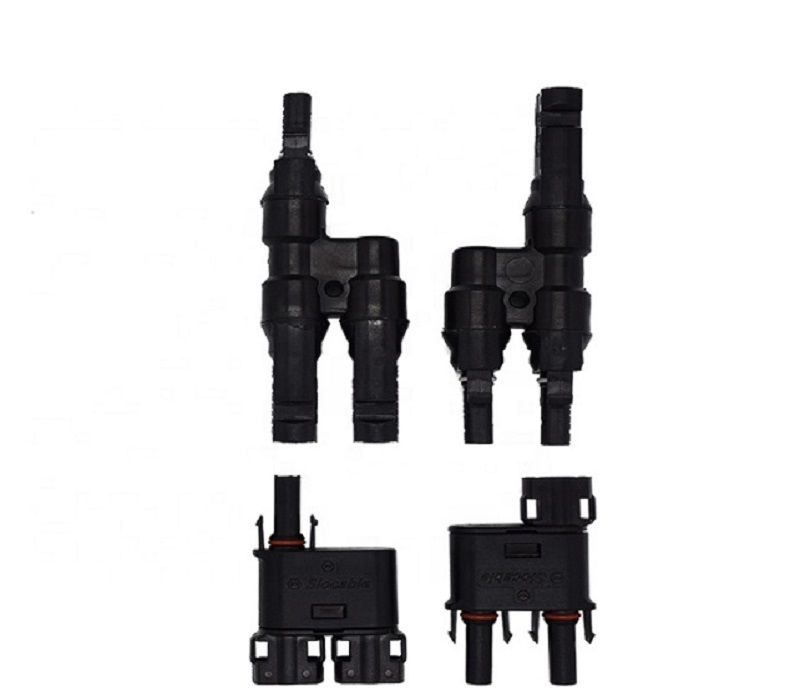

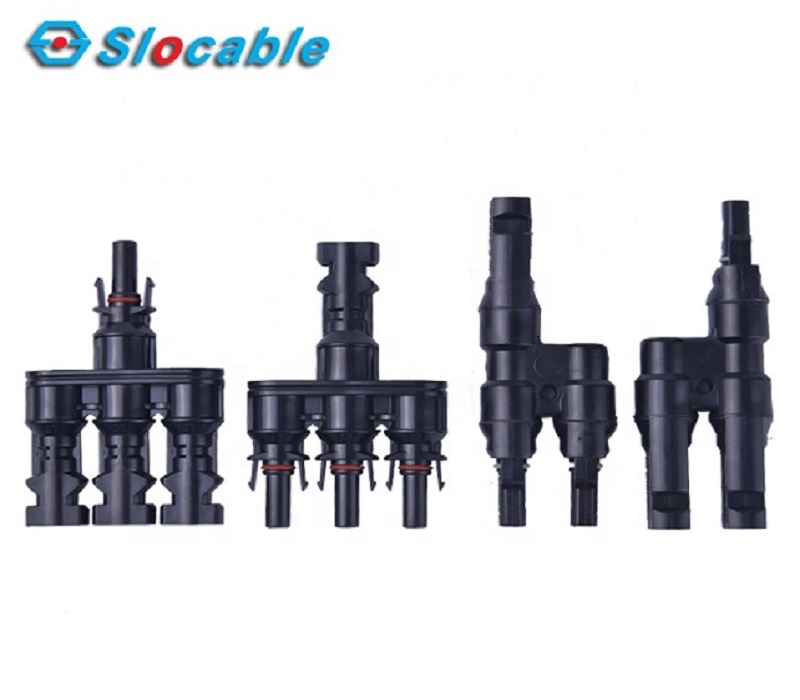

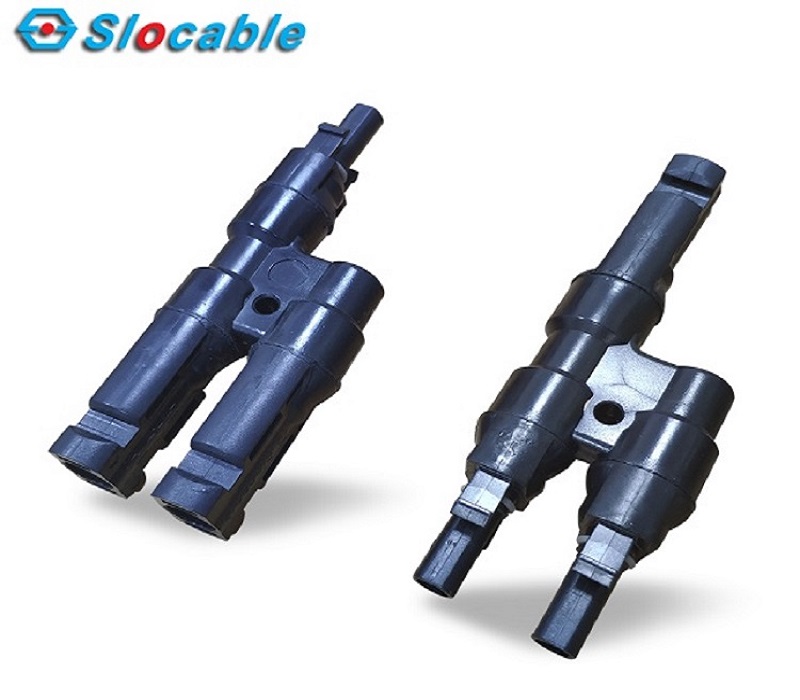

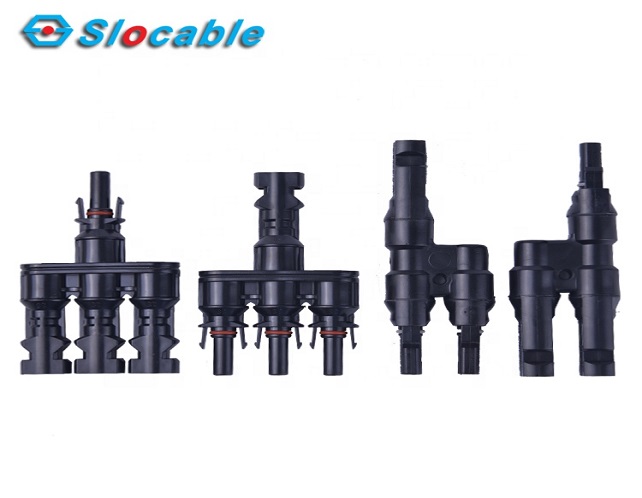

Product Photos
Quality Comparison
If any inquiry, please feel free to contact us. Many thanks!
-
