Solar Panel Fuse (MC4/TUV certification)

Product Size: 10x38mm , 1-30A
Product Material: Tinned Copper , PPO

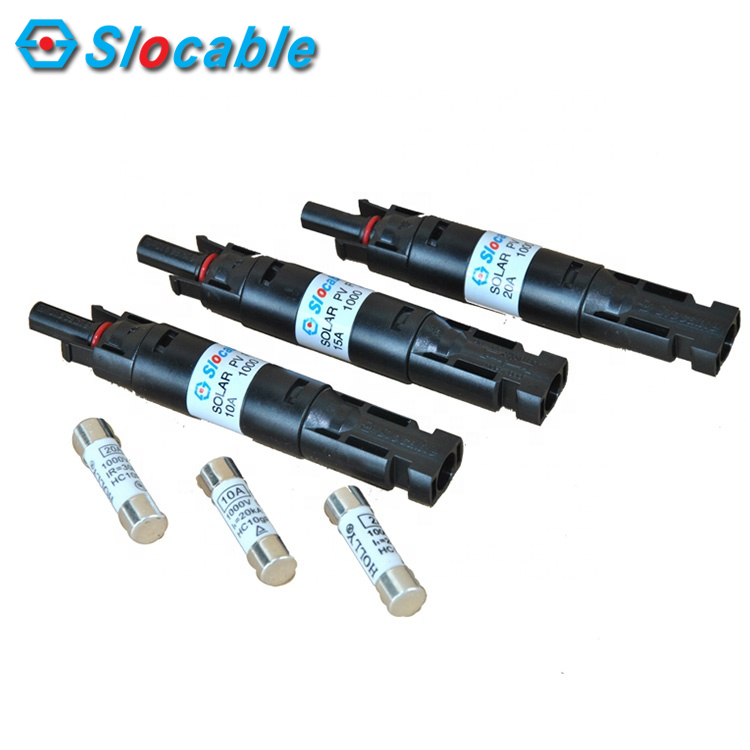

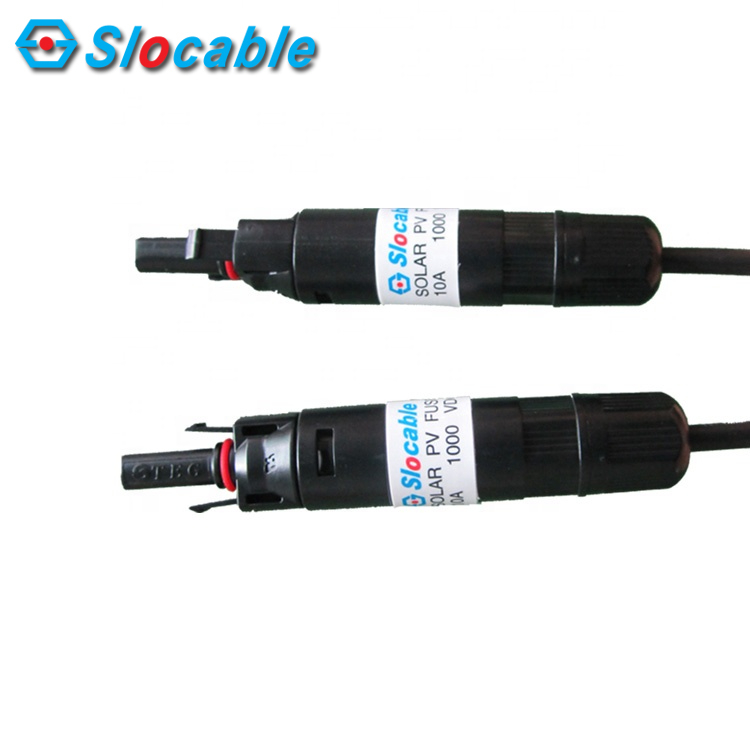

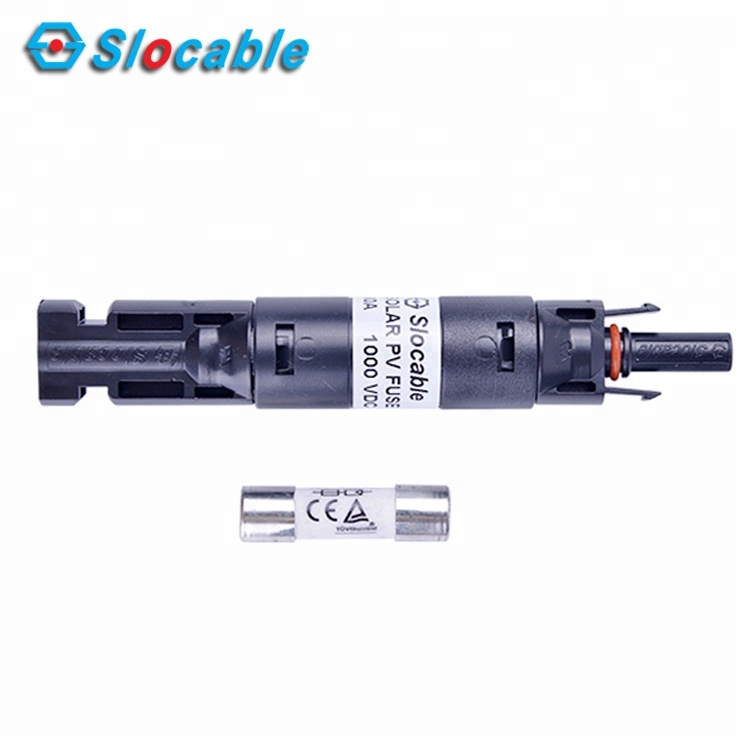

This in-line PV fuse by Slocable. You need to place one of these on the positive wire on each string (row of panels in series) of solar panels.
These are the easiest fuses to install, taking less than 5 seconds. Simply snaps in place. Similarly if you ever need to change fuses the whole job takes less than a minute to open it and change.
Eliminate the need for combiner boxes in PV installations. Save time and money on installation and maintenance.

Assume full accountability to meet all requirements of our purchasers; realize continual advancements by selling the advancement of our customers; grow to be the final permanent cooperative partner of consumers and maximize the interests of clientele for China wholesale PV Solar Panel Fuse (MC4/TUV certification), We’ve been trying to get for intensive cooperation with truthful customers, accomplishing a new induce of glory with customers and strategic partners.
Assume full accountability to meet all requirements of our purchasers; realize continual advancements by selling the advancement of our customers; grow to be the final permanent cooperative partner of consumers and maximize the interests of clientele for China Fuse Holder, dc fuse holder, With the advanced workshop, professional design team and strict quality control system, based on mid-to high-end marked as our marketing positioning, our solutions are fast selling onto European and American markets with our own brands.

China Slocable wholesale PV solar panel fuse (MC4/TUV certification)

MC4 Inline Fuses Renogy, Solar Odyssey (Slocable)

Product Description

· Compatible MC4

· Simple on-site processing

· Accomodates different specifications of the FUSE and Cables

· Fuse can be replaced

· Mating safety provided by keyed housings

· Mutiple plugging and unplugging cycles

· High current carrying capacity

Electrical systems that convert the sun’s energy into electricity are very reliable as long as they are protected properly. Any solar installation is vulnerable to fault currents or lightning strikes. Today, fuses and surge arrestors are the most effective ways of protecting the wiring and all the electrical equipment in a photovoltaic system.

Technical Data

Rated Current:	1~30A (According to the fuse)
Rated Voltage:	1000V/1500V DC
Certificate:	TUV , CE , ISO
Insulation Material:	PPO
Contact Material:	Copper, Tin plated
Waterproof Protection:	IP68
Contact Resistance:	<0.5mΩ
Ambient Temperature:	-40℃~+85℃
Flame Class :	UL94-V0
Suitable Cable :	2.5-6mm2 (14-10AWG)
