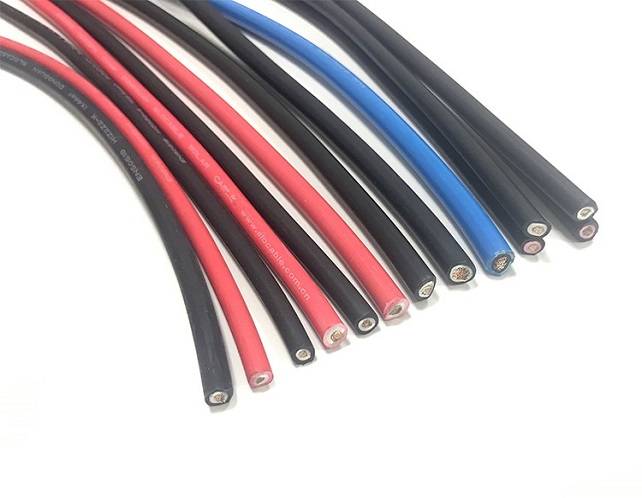

DC Cable for Solar PV-Solar Cable Manufacturer
- Product Size: 1x2.5mm,1x4mm,1x6mm,1x10mm,1x16mm
- Product Material: Tinned Copper,XLPE Insulation
Solar DC Cable is specialized used in Solar PV system between the solar panel and Inverter or controller box. PVC electric wires can be installed in conduit, in cable trunking and in cable ducting. Or where there is deemed the little risk of mechanical damage these cables can be clipped direct, on cable tray, embedded or in free air.
dc cable for solar pv Slocable-solar cable manufacturer
Product Description
·Dual wall insulation.Electron beam cross-linked
·Excellent resistance to U.V, oil, greases, oxygen and ozone
·Excellent resistance to abrasion ·Halogen free, flame retardant, low toxicity
·Excellent flexibility and stripping performance
·High Voltage and Current carrying capacity
·TUV, CE, ISO approved
3) Jacket: XLPE (XLPO),Halogen-free, UV resistant.
2) Insulation: XLPE (XLPO),Halogen-free .
1) Conductor: 99.99% Stand Tinned Copper Wire
solar cable specification
Technical Data of Solar Cable
| Rated Voltage: | 1000V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | XLPE (XLPO) |
| Contact Material: | 99.7% Copper, Tin plated |
| Character: | UV Resistance, Halogen-free |
| Ambient Temperature: | -40℃~+90℃ |
| Flame Class : | EN 50625 / UL 1571 |
| Color: | Black / Red / Blue |
dc cables for solar panels
Advantages
99.99% Copper | Dual Wall Insulation | UV & Flame Resistance
Low Resistance | Low Eccentricity Ratio | Excellent Flexibility
1. We have 12 years manufacturing experience.Exporting solar products all over the world.
2. High quality, you can use our products in confidence.
3. Although our price is not expensive, we will not cut corners. We insist to use the best and new raw material to make sure the quality.
4. The warranty we promise is 5years, and the working life is reaching 25years.
Solar PV Cable Specification
| Name : | Single Core Solar Cable |
| Standard : | PV1-F TUV , CE , ISO |
| Size : | 1×2.5mm2 / 1x4mm2 / 1x6mm2 / 1x10mm2 / 1x16mm2 |
| Conductor : | 99.99% Strand Tinned Copper Wire |
| Insulation : | XLPE (XLPO) |
| Jacket : | XLPE (XLPO) |
| Color : | Black / Red / Blue |
| Temperature Range : | -40℃ ~ 90℃ (Max. +120℃ for conductor) |
| Outer Diameter : | 5.4mm / 6.2mm / 7.1mm / 7.8mm / 10.2mm |
| Rated Current : | 30A / 50A / 70A / 90A / 132A |
| Rated Voltage : | AC 0.6 / 1.0 KV ; DC 1.0 / 1.8 KV |
We supply the ideal support to domestic and overseas buyers wholeheartedly for dc cable for solar pv Slocable-solar cable manufacturer, “Making the Products and solutions of Large Quality” may be the everlasting aim of our organization. We make unremitting efforts to recognize the intention of “We Will Always Keep in Pace with all the Time”.
We supply the ideal support to domestic and overseas buyers wholeheartedly for China Copper Wire, solar cable, We supply OEM services and replacement parts to meet the varying needs of our customers. We give competitive prices for quality products and solutions and we are going to make certain your shipment is handled quickly by our logistics department. We sincerely hope to have the opportunity to meet with you and see how we can help you further your own business.
If any inquiry, please feel free to contact us.
-
