Slocable Solar Diode Connector
- Product Size: 15A
- Product Material: Tinned Copper , PPO
This Slocable high quality solar diode connector is designed to protect solar panels from current backflow.
Product Description

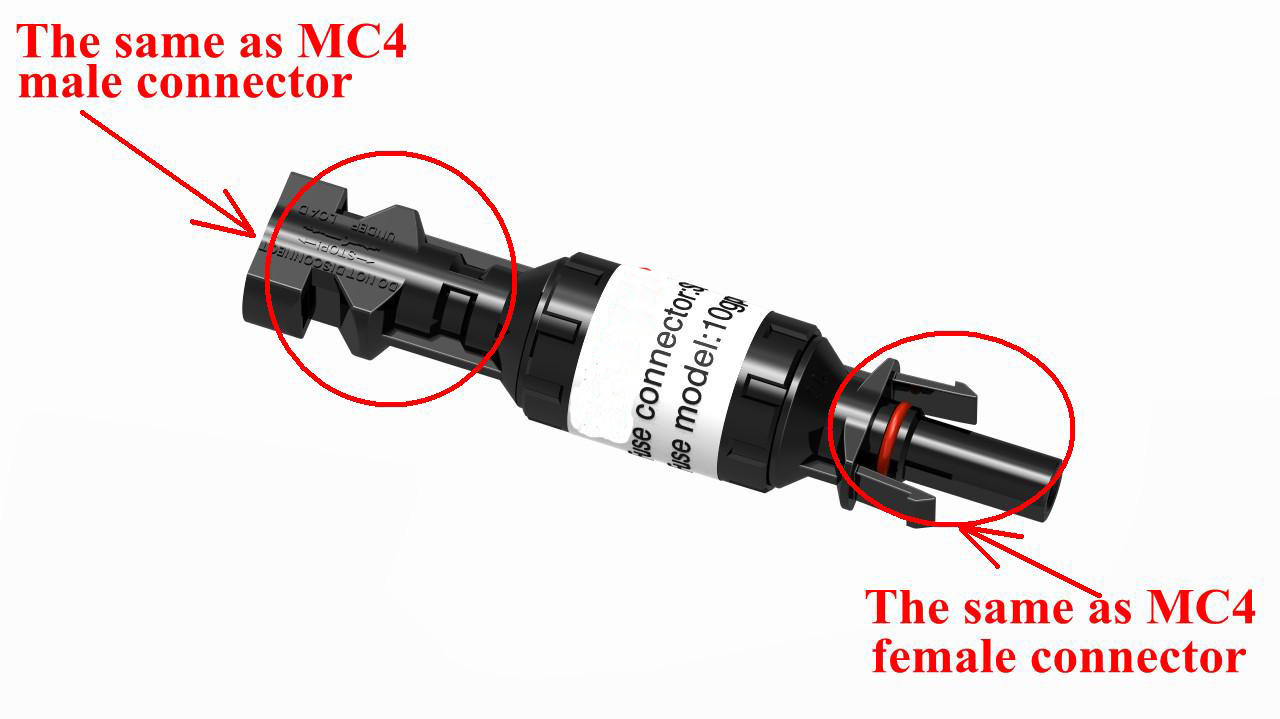

· Compatible MC4
· Simple on-site processing
· Accomodates different specifications of the FUSE and Cables
· Mating safety provided by keyed housings
· Mutiple plugging and unplugging cycles
· High current carrying capacity

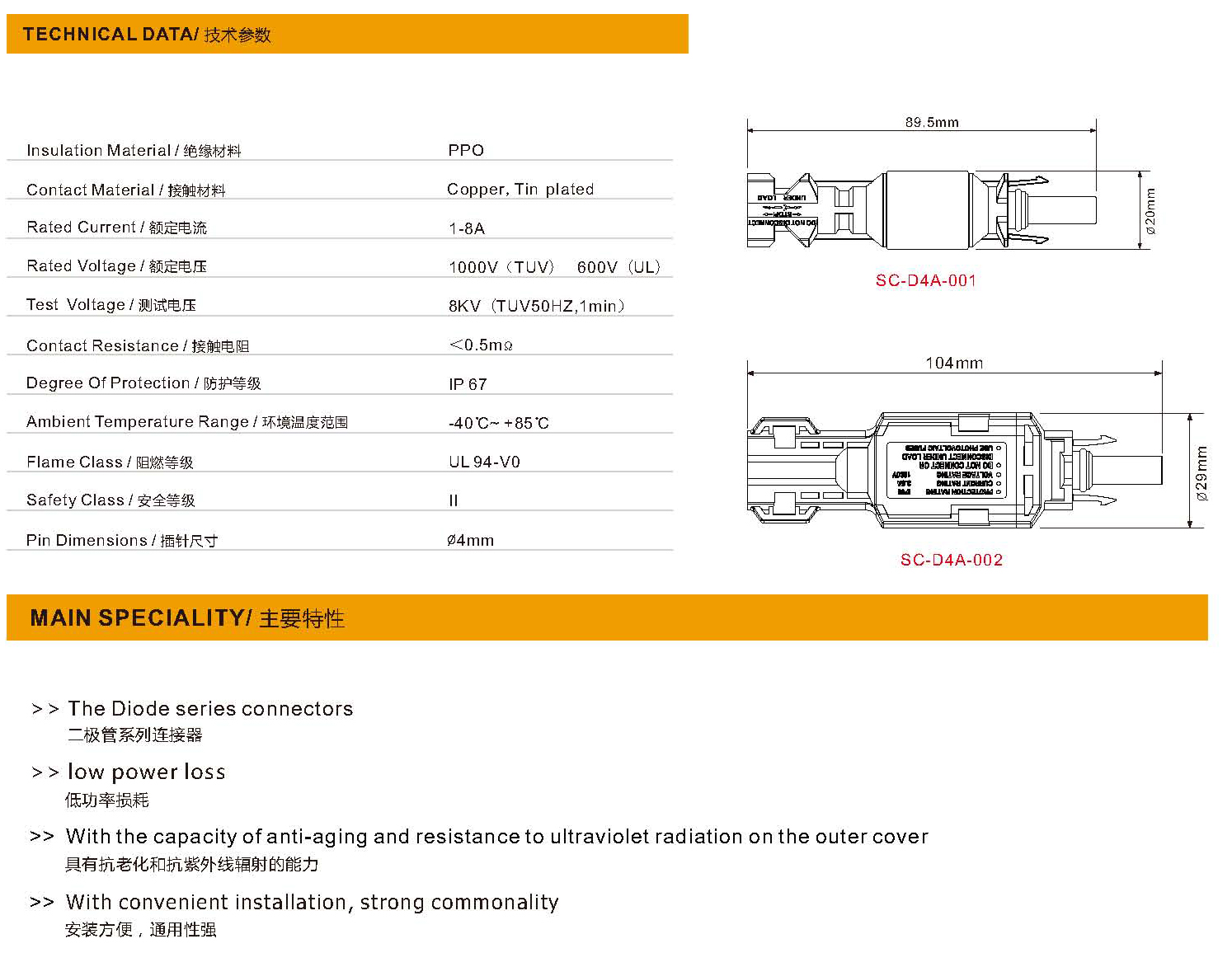

Technical Data
| Rated Current: | 15A |
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | PPO |
| Contact Material: | Copper, Tin plated |
| Waterproof Protection: | IP68 |
| Contact Resistance: | <0.5mΩ |
| Ambient Temperature: | -40℃~+85℃ |
| Flame Class : | UL94-V0 |
| Suitable Cable : | 2.5-6mm2 (14-10AWG) |
