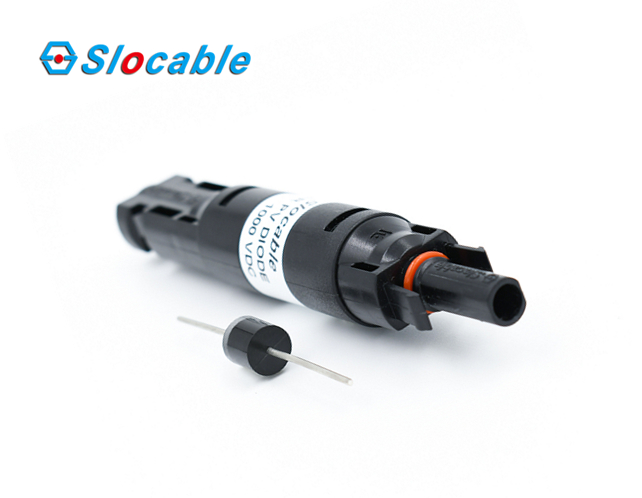

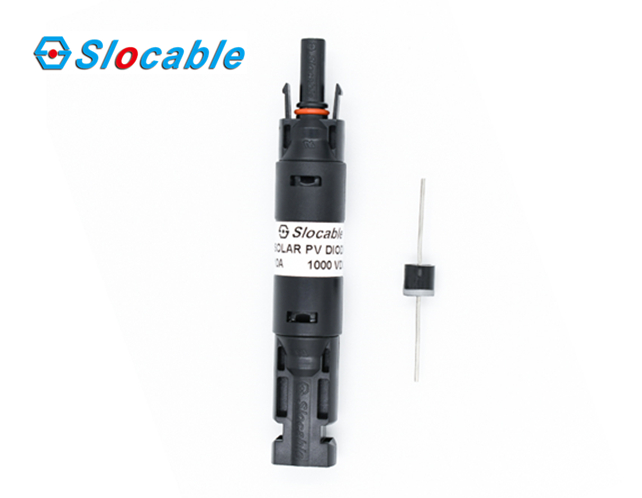

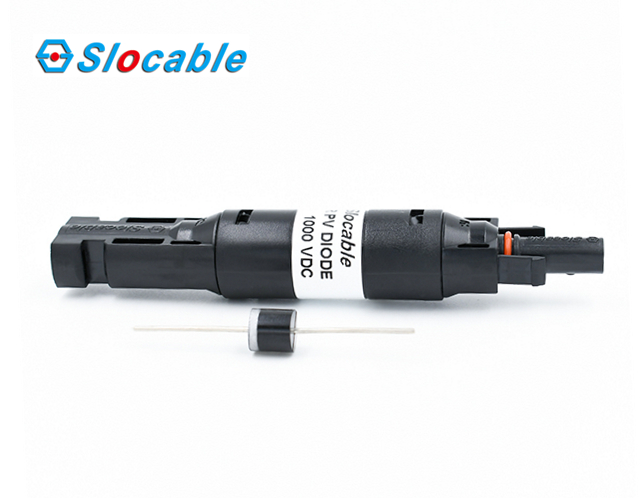

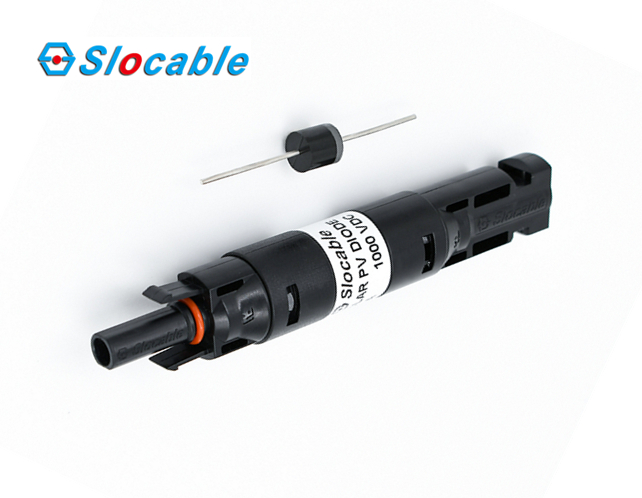

OEM China Slocable Factory Solar PV IP68 Diode Connector

Rated Voltage: 1000/1500V DC
Rated Current: 10A-15A ( Diode)
Test Voltage: 8KV(50Hz,1Min)

Slocable MC4 solar PV diode connectors are used prevent against reverse diode modules and solar photovoltaic systems to protect current reverse from solar panels and inverters. This diode connector is compatible with solar panel connectors for 2.5 mm2, 4mm2 and 6mm2 solar cables in solar connection projects. Fast and reliable connection of solar cables to photovoltaic systems (solar panels, converters).

Application

1) Dedicated for anti-reverse photovoltaic DC cabinet
2) Photovoltaic inverter
3) New energy vehicles(Electric car)
4) Anti-reverse charging pile

This Solar PV diode connector contains a 10AMP capacity advanced blocking diode designed to protect each solar panel from current backflow, compatible with MC4 style plugs, used to protect solar panels to maintain their expected lifespan.

Specification of Solar PV Diode Connector

Insulation Material	PPO
Flame Class	UL94-V0
Safety Level	Class II
Ambient Temperature Range	- 40～+85 ℃
Contact Material	copper, tin plated
Contact Resistance	less than 0.5 m ohm
Degree of Protection	IP68 Waterproof
Pin Dimension	4.0 MM
Compatible Solar Cable	2.5/4.0 /6.0 mm² (14/12/10 AWG)
