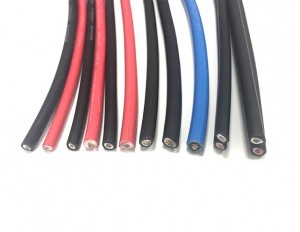

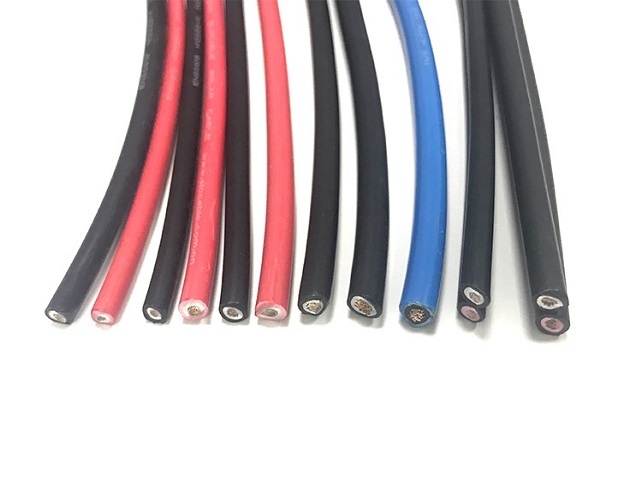

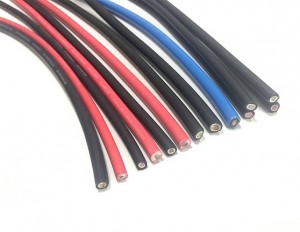

OEM Supply 10 sq mm solar cable
- Product Size: 1x2.5mm, 1x4mm, 1x6mm, 1x10mm, 1x16mm
- Product Material: Tinned Copper, XLPE Insulation
Our PVC Insulated wire is a low voltage single-core, PVC insulated copper conductor with an additional PVC oversheath for physical protection. Designed for use in light industrial and domestic wiring. These 10 sq mm dc cable are particularly suited for installation as meter tails and are intended for fixed installation in dry or damp premises.
We constantly carry out our spirit of ”Innovation bringing advancement, Highly-quality guaranteeing subsistence, Administration selling advantage, Credit rating attracting buyers for OEM Supply China Mc4 Solar 4 sq mm dc cable Slocable, Accurate process devices, Advanced Injection Molding Equipment, Equipment assembly line, labs and software advancement are our distinguishing feature.
We constantly carry out our spirit of ”Innovation bringing advancement, Highly-quality guaranteeing subsistence, Administration selling advantage, Credit rating attracting buyers for Buy Mc4 Solar Power Cable, China Mc4 Solar Power Cable, All styles appear on our website are for customizing. We meet up to individual requirements with all solutions of your very own styles. Our concept is to help to present the confidence of each buyer with the offering of our most sincere service, and the right product.
OEM Supply China Mc4 Solar 10 sq mm dc cable Slocable
Product Description
·Dual wall insulation.
·Electron beam cross-linked
·Excellent resistance to U.V, oil, greases, oxygen and ozone
·Excellent resistance to abrasion
·Halogen free, flame retardant, low toxicity
·Excellent flexibility and stripping performance
·High Voltage and Current carrying capacity
·TUV, CE, ISO approved
3) Jacket: XLPE (XLPO),Halogen-free, UV resistant.
2) Insulation: XLPE (XLPO),Halogen-free .
1) Conductor: 99.99% Stand Tinned Copper Wire
Technical Data of Solar Cable
| Rated Voltage: | 1000V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | XLPE (XLPO) |
| Contact Material: | 99.7% Copper, Tin plated |
| Character: | UV Resistance, Halogen-free |
| Ambient Temperature: | -40℃~+90℃ |
| Flame Class : | EN 50625 / UL 1571 |
| Color: | Black / Red / Blue |
Advantages
99.99% Copper | Dual Wall Insulation | UV & Flame Resistance
Low Resistance | Low Eccentricity Ratio | Excellent Flexibility
1. We have 12 years of manufacturing experience. Exporting solar products all over the world.
2. High quality, you can use our products in confidence.
3. Although our price is not expensive, we will not cut corners. We insist to use the best and new raw material to make sure the quality.
4. The warranty we promise is 5years, and the working life is reaching 25years.
Solar PV Cable Specification
| Name : | Single Core Solar Cable |
| Standard : | PV1-F TUV , CE , ISO |
| Size : | 1×2.5mm2 / 1x4mm2 / 1x6mm2 / 1x10mm2 / 1x16mm2 |
| Conductor : | 99.99% Strand Tinned Copper Wire |
| Insulation : | XLPE (XLPO) |
| Jacket : | XLPE (XLPO) |
| Color : | Black / Red / Blue |
| Temperature Range : | -40℃ ~ 90℃ (Max. +120℃ for conductor) |
| Outer Diameter : | 5.4mm / 6.2mm / 7.1mm / 7.8mm / 10.2mm |
| Rated Current : | 30A / 50A / 70A / 90A / 132A |
| Rated Voltage : | AC 0.6 / 1.0 KV ; DC 1.0 / 1.8 KV |
We supply 1500v dc cable, such as 4 sq mm solar dc cable, 6 sq mm solar dc cable and 10 sq mm solar cable.
If any inquiry, please feel free to contact us. Many thanks!
-
