Solar Panel Male Female Connectors
- Product Size: For 2.5mm,4mm,6mm cable
- Product Material: Tinned Copper PPO
This solar panel male female connectors are used for connecting solar panels. MC4 connectors ensure solar panel wire does not disconnect accidentally when the cables are pulled. 2 panel MC4 T-type connector connects 2 solar panels from 10 watts to 400 watts. IP 68 rating makes it waterproof and dustproof for outdoor use.
Slocable China solar panel male female connectors with TUV/Ce Certifications
Description of Panel MC4 Connector
· Compatible MC4
· Standard thickness 0.4 terminals
· Simple on-site processing
· Mating safety provided by keyed housings
· Multiple plugging and unplugging cycles
· Accommodates PV cables with different insulation diameters
· High current carrying capacity
Technical Data of Panel MC4 Connector
| Rated Current: | 50A |
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | PPO |
| Contact Material: | Copper, Tin plated |
| Waterproof Protection: | IP68 |
| Contact Resistance: | <0.5mΩ |
| Ambient Temperature: | -40℃~+85℃ |
| Flame Class : | UL94-V0 |
| Suitable Cable : | 2.5-6mm2 (14-10AWG) |

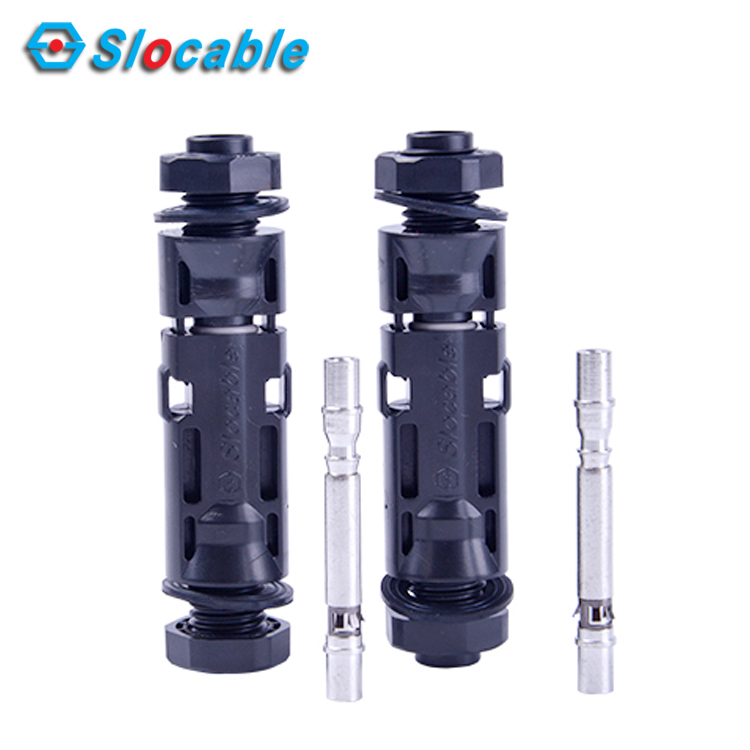

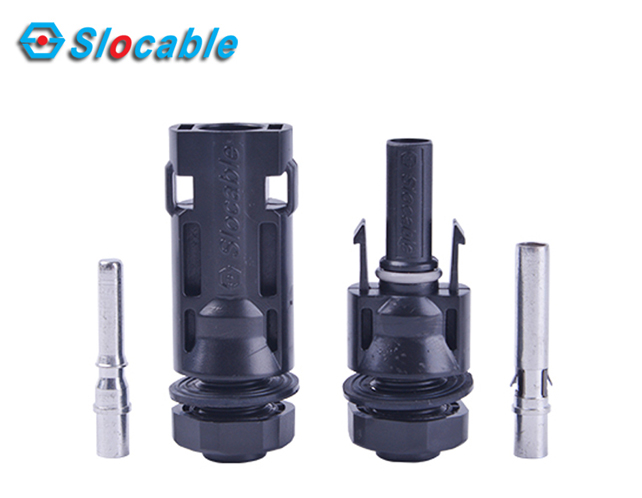

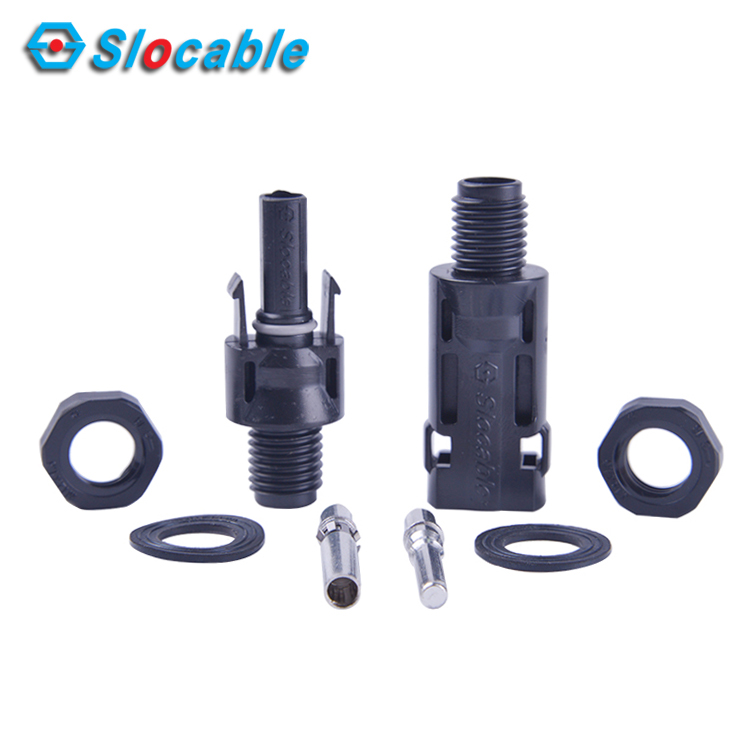

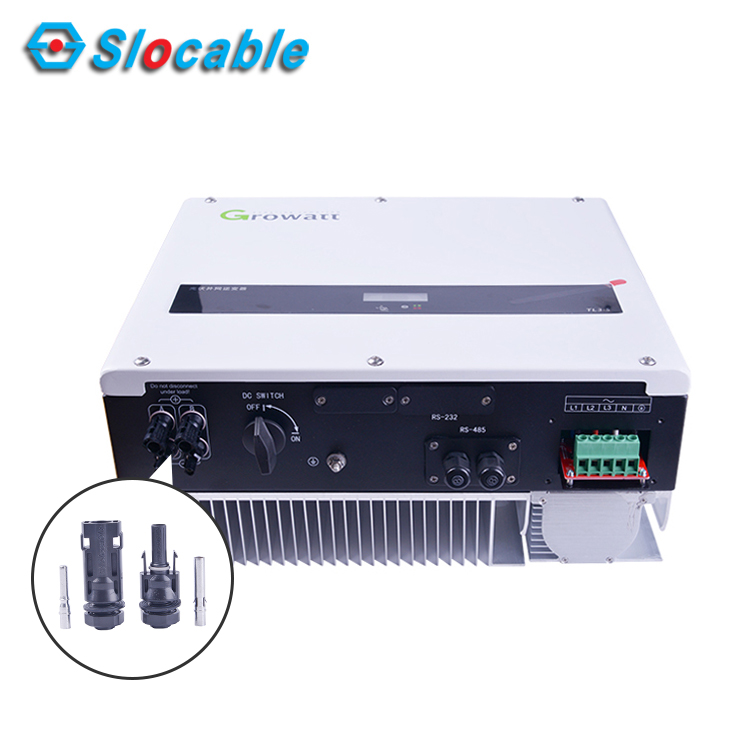

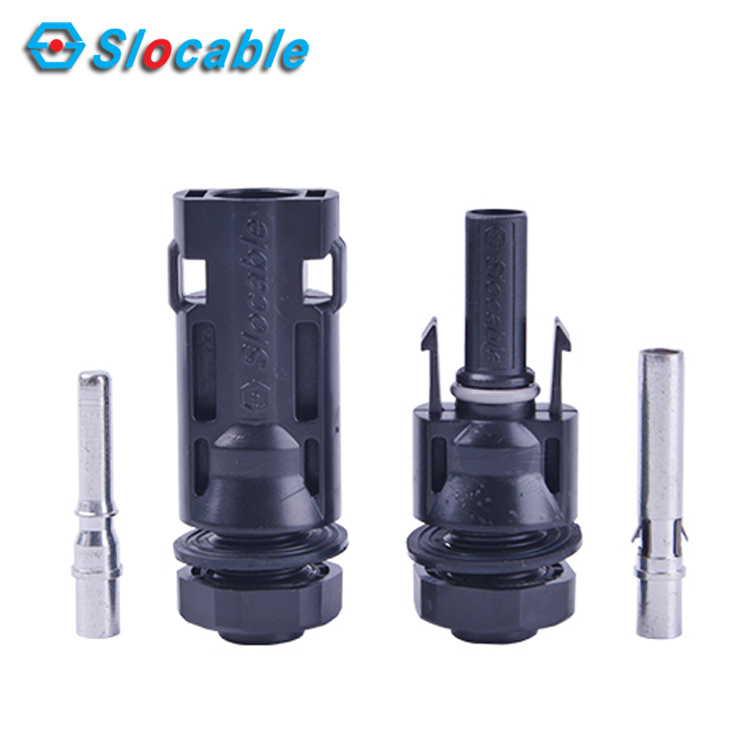

Pictures of Panel MC4 Connector
Comparison of MC4 Connector
Reliable top quality and great credit score standing are our principles, which will help us in a top-ranking position. Adhering to the tenet of “quality first, consumer supreme” for High reputation China TUV/Ce Certifications solar panel male female connectors, With the advancement of society and economy, our enterprise will continue to keep a tenet of “Focus on trust, high quality the first”, moreover, we expect to produce a wonderful future with each customer.
Reliable top quality and great credit score standing are our principles, which will help us in a top-ranking position. Adhering to the tenet of “quality first, consumer supreme” for Cable Connector, China Electrical Connectors, Adhering to the principle of “Enterprising and Truth-Seeking, Preciseness and Unity”, with technology as the core, our company continues to innovate, dedicated to providing you with the highest cost-effective products and meticulous after-sales service. We firmly believe that: we are outstanding as we are specialized.
If any inquiry, please feel free to contact us. Many thanks!
