OEM China DC Circuit Breaker Wholesaler Manufacturer Slocable

Weight: 0.12kg/Pole

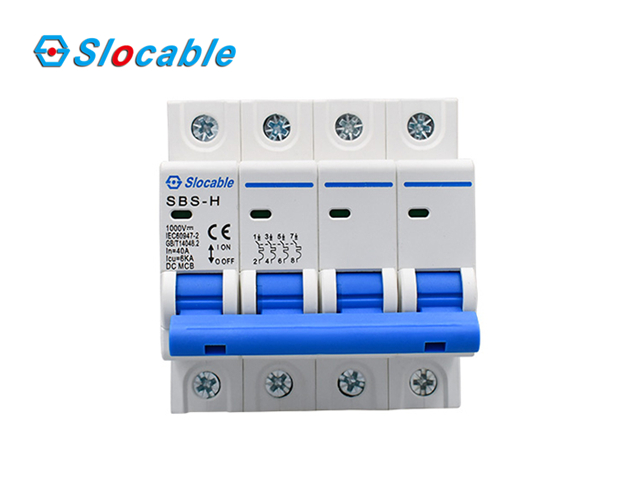

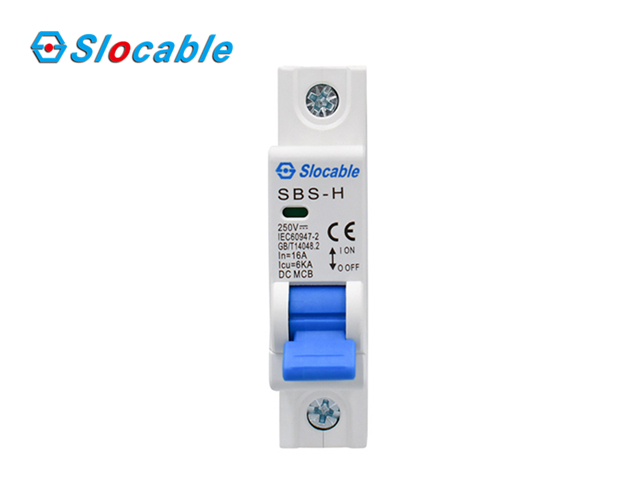

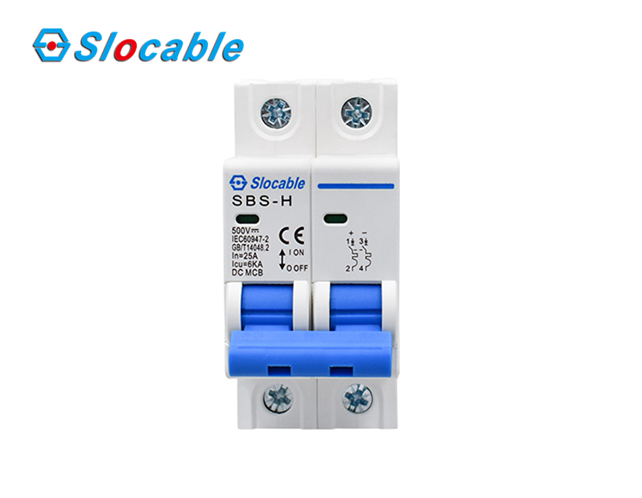

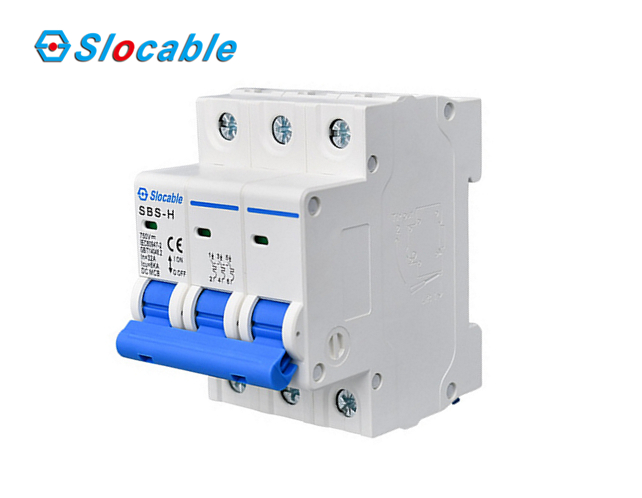

Model Number: SBS-H dc circuit breaker
Poles Number: 1P, 2P, 3P, 4P(optional)
Rated Voltage: 250V/500V/750V/1000V
Rated current: Up to 63A of dc circuit breaker

Slocable DC Mini Circuit Breakers designed for direct current (DC) control circuit applications, provides overcurrent and short circuit protection for higher voltage DC circuits. Slocable is a leading solar DC accessories manufacturer in China.

DC Circuit Breaker Description

DC Mini Circuit Breakers SBS -H, with capacities of load isolation and overload/short circuit protection, are designed for PV, energy storage and other DC applications, mainly placed between batteries and hybrid inverters. Max voltage up to 1000VDC, current up to 63A. The main designing criteria of this circuit breakers is to provide scientific arc extinguishing and flash barrier technology to fulfill quick and safe current interruption.Tested according to EN 60947-2, IEC 60947.2: 2015.

Protection Functions: overload, short circuit
Rated short circuit breaking capacity Icu up to 6 kA
Non-polarity, Easy wiring
Rated Current In up to 63A
Rated Voltage Ue up to 1000V
Designed for PV, energy storage and other DC applications
