Power Application and Adapter Type MC4 2to1 branch solar connector
- Product Size: For 2.5mm, 4mm, 6mm2 cable
- Product Material: Tinned Copper, PPO
MC4 Solar Connector is specialized used in Solar PV system between the solar panel and Inverter or controller box.They’re UV resistance and can be working outdoor for 25years.
Power Application and Adapter Type MC4 2to1 branch solar connector,
mc4 t branch connector,
Compatible MC4 T Branch Connector 2 in 1 out splitter
Product Description
· Compatible MC4
· Standard thickness 0.4 terminals
· Simple on-site processing
· Mating safety provided by keyed housings
· Multiple plugging and unplugging cycles
· Accommodates PV cables with different insulation diameters
· High current carrying capacity
Technical Data
| Rated Current: | 50A |
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | PPO |
| Contact Material: | Copper, Tin plated |
| Waterproof Protection: | IP68 |
| Contact Resistance: | <5mΩ |
| Ambient Temperature: | -40℃~+85℃ |
| Flame Class : | UL94-V0 |
| Suitable Cable : | 2.5-6mm2 (14-10AWG) |

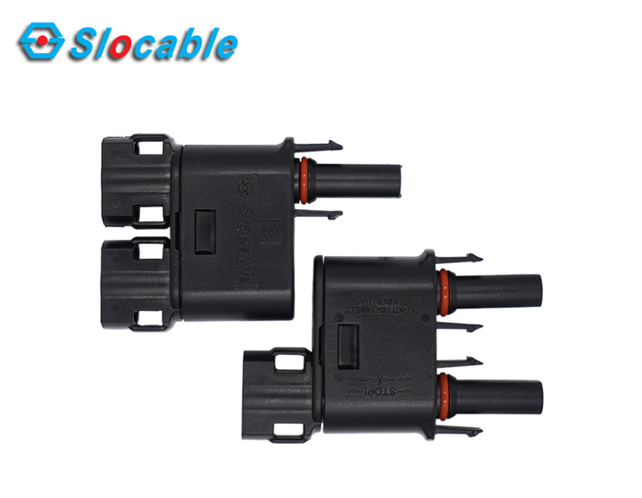

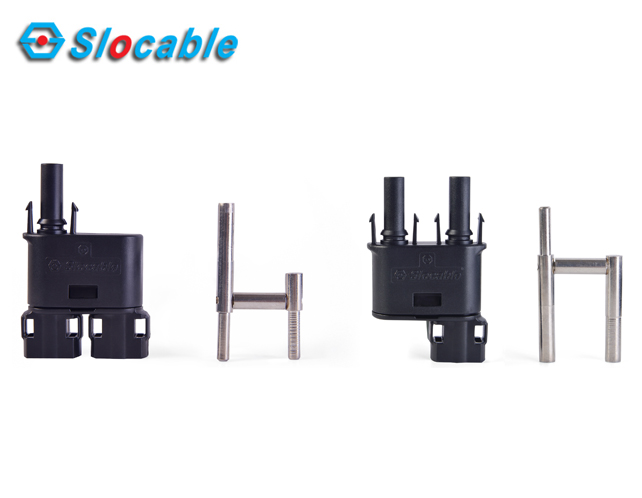

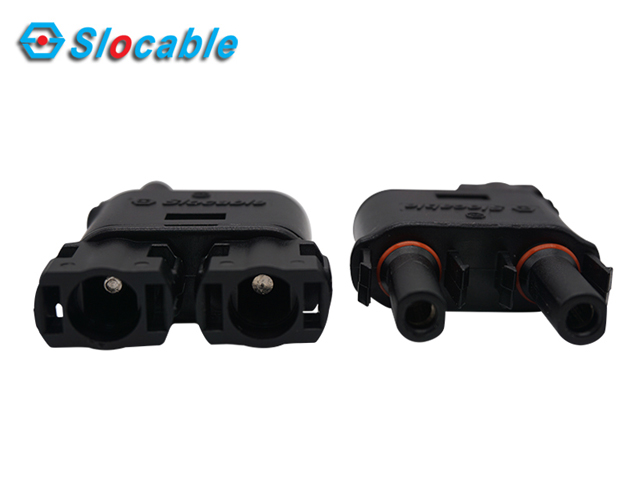

Product Photos
Quality Comparison
