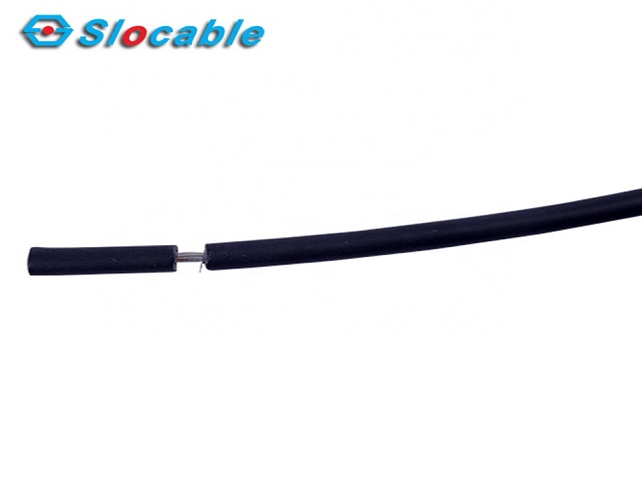

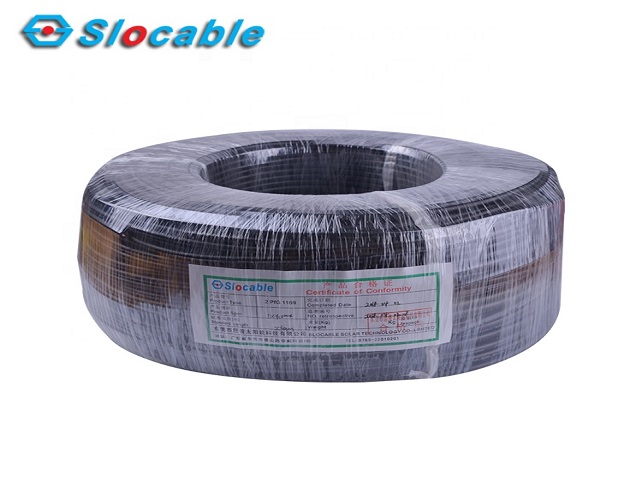

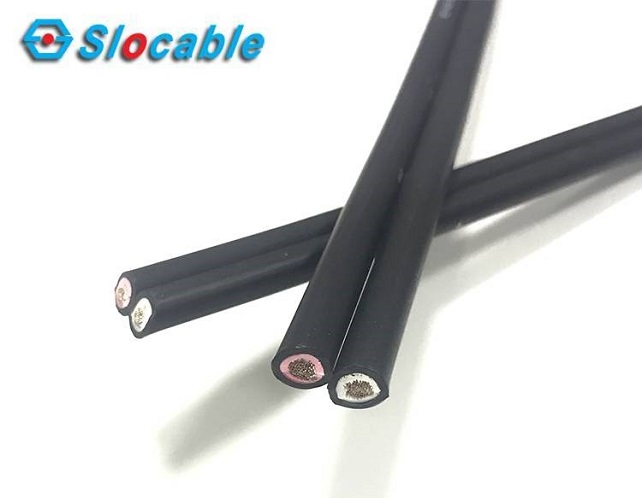

Solar Panel Connecting Cables
- Product Size: 1x2.5mm, 1x4mm, 1x6mm, 1x10mm, 1x16mm
- Product Material: Tinned Copper, XLPE Insulation
Solar Panel Connecting Cable is specialized used in Solar PV system between the solar panel and Inverter or controller box. If you have two or more solar modules to wire in series, the MC4 connectors make it very simple. Wiring MC4 Equipped Modules in Parallel: Parallel wiring requires the positive leads to be connected together and the negative leads to be connected together.

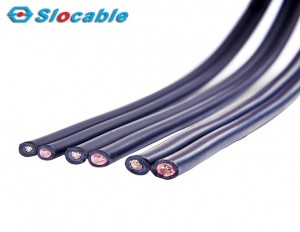

Slocable solar panel connecting cables
Product Description
·Dual wall insulation. Electron beam cross-linked
·Excellent resistance to U.V, oil, greases, oxygen and ozone
·Excellent resistance to abrasion
·Halogen free, flame retardant, low toxicity
·Excellent flexibility and stripping performance
·High Voltage and Current carrying capacity
·TUV, CE, ISO approved
3) Jacket: XLPE (XLPO),Halogen-free, UV resistant.
2) Insulation: XLPE (XLPO),Halogen-free .
1) Conductor: 99.99% Stand Tinned Copper Wire
Technical Data of Solar Cable
| Rated Voltage: | 1000V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | XLPE (XLPO) |
| Contact Material: | 99.7% Copper, Tin plated |
| Character: | UV Resistance, Halogen-free |
| Ambient Temperature: | -40℃~+90℃ |
| Flame Class : | EN 50625 / UL 1571 |
| Color: | Black / Red / Blue |
Advantages
99.99% Copper | Dual Wall Insulation | UV & Flame Resistance
Low Resistance | Low Eccentricity Ratio | Excellent Flexibility
1. We have 12 years of manufacturing experience. Exporting solar products all over the world.
2. High quality, you can use our products in confidence.
3. Although our price is not expensive, we will not cut corners. We insist to use the best and new raw material to make sure the quality.
4. The warranty we promise is 5years, and the working life is reaching 25years.
Solar PV Cable Specification
| Name : | Single Core Solar Cable |
| Standard : | PV1-F TUV , CE , ISO |
| Size : | 1×2.5mm2 / 1x4mm2 / 1x6mm2 / 1x10mm2 / 1x16mm2 |
| Conductor : | 99.99% Strand Tinned Copper Wire |
| Insulation : | XLPE (XLPO) |
| Jacket : | XLPE (XLPO) |
| Color : | Black / Red / Blue |
| Temperature Range : | -40℃ ~ 90℃ (Max. +120℃ for conductor) |
| Outer Diameter : | 5.4mm / 6.2mm / 7.1mm / 7.8mm / 10.2mm |
| Rated Current : | 30A / 50A / 70A / 90A / 132A |
| Rated Voltage : | AC 0.6 / 1.0 KV ; DC 1.0 / 1.8 KV |
We provide fantastic energy in top quality and advancement, merchandising, gross sales and marketing and operation for Slocable solar panel connecting cables, We will do our best to meet your requirements and are sincerely looking forward to developing a mutual beneficial business relationship with you!
We provide fantastic energy in top quality and advancement, merchandising, gross sales and marketing and operation for Cable Connector, Customer satisfaction is our goal. We’re looking forward to cooperating with you and providing our best services for you. We warmly welcome you to contact us and you should feel free to contact us. Browse our online showroom to see what we can do for yourself. And then E-mail us your specifications or inquiries today.
If any inquiry, please feel free to contact us. Many thanks!
-
