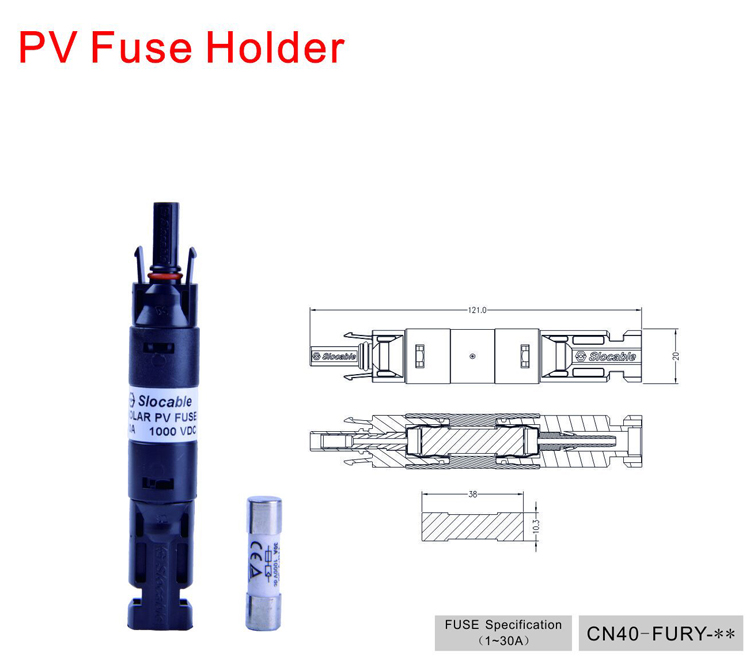

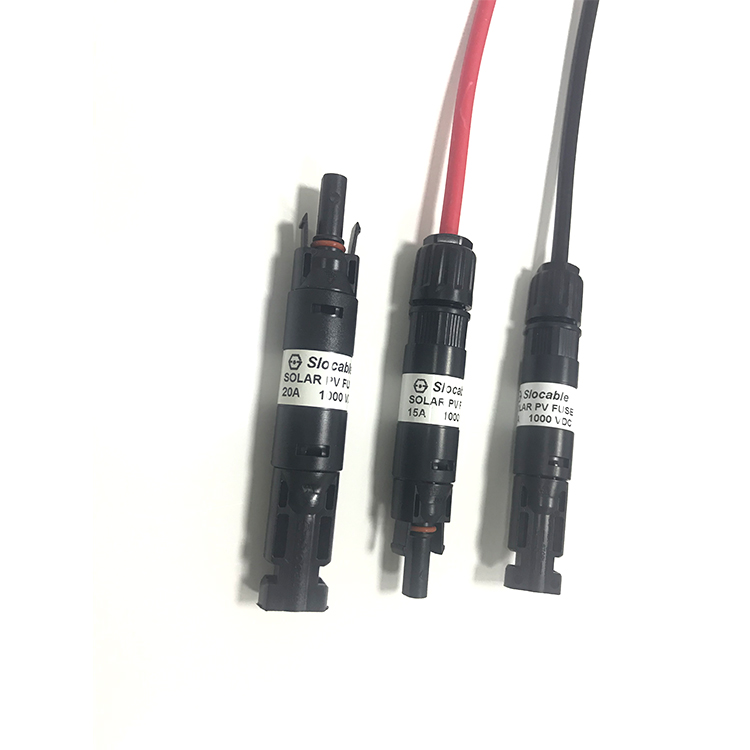

MC4 Inline Fuse Connector
- Product Size: 10x38mm , 1-30A
- Product Material: Tinned Copper , PPO
This product is a 10A/15A/20A/30A fuse embedded into a waterproof fuse holder. It features a solar connector lead on each end, making it compatible for use with an Adaptor Kit and solar panel leads. This Fuse Holder is designed to provide complete single circuit protection to your solar power array. The fuses prevent large currents from damaging the solar panels. Purchase this product for extra protection on your system.
Slocable mc4 inline fuse connector for solar energy system
Product Description
· Compatible MC4
· Simple on-site processing
· Accomodates different specifications of the FUSE and Cables
· Fuse can be replaced
· Mating safety provided by keyed housings
· Mutiple plugging and unplugging cycles
· High current carrying capacity
Technical Data
| Rated Current: | 1~30A (According to the fuse) |
| Rated Voltage: | 1000V/1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | PPO |
| Contact Material: | Copper, Tin plated |
| Waterproof Protection: | IP68 |
| Contact Resistance: | <0.5mΩ |
| Ambient Temperature: | -40℃~+85℃ |
| Flame Class : | UL94-V0 |
| Suitable Cable : | 2.5-6mm2 (14-10AWG) |
solar fuse holder types
Fuse holders come in two basic types, open or fully enclosed. Open fuse holder types are fuse clips, fuse blocks, socket and plug-on cap varieties. The fully enclosed variety may use a fuse carrier that is inserted into a holder or have other means to fully enclose the fuse.

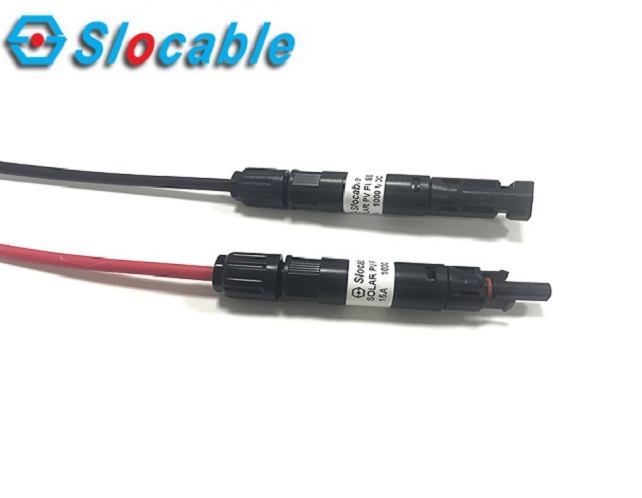

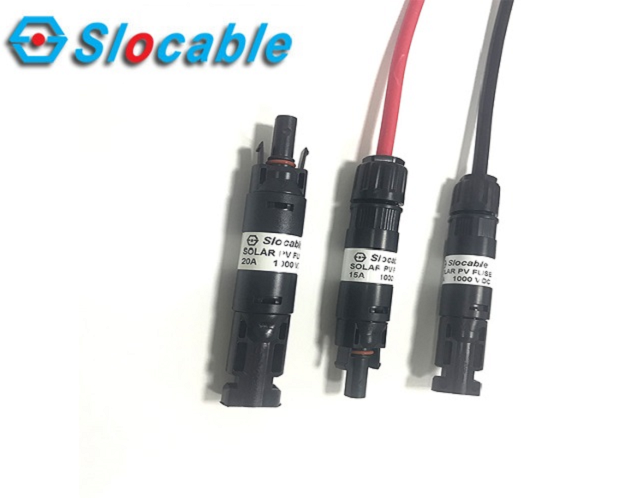

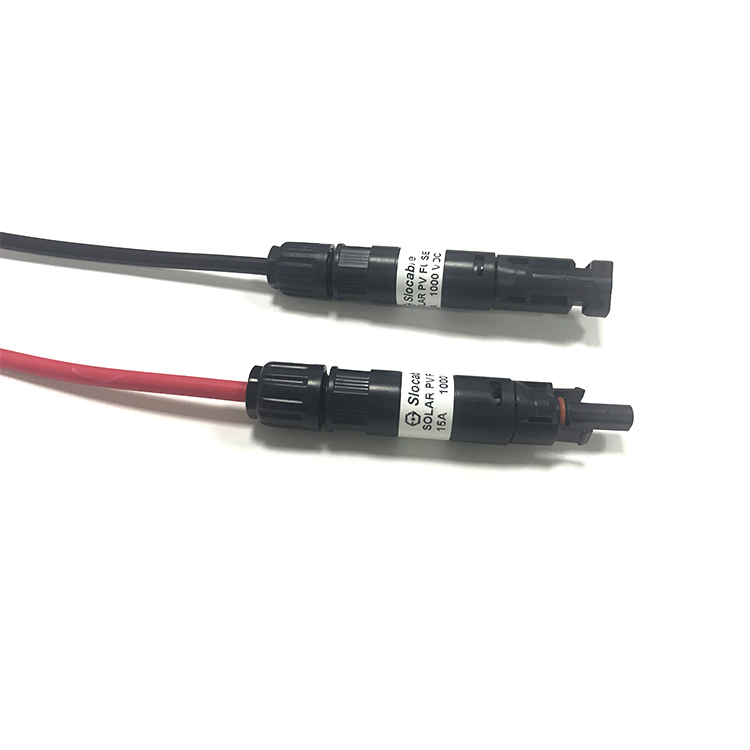

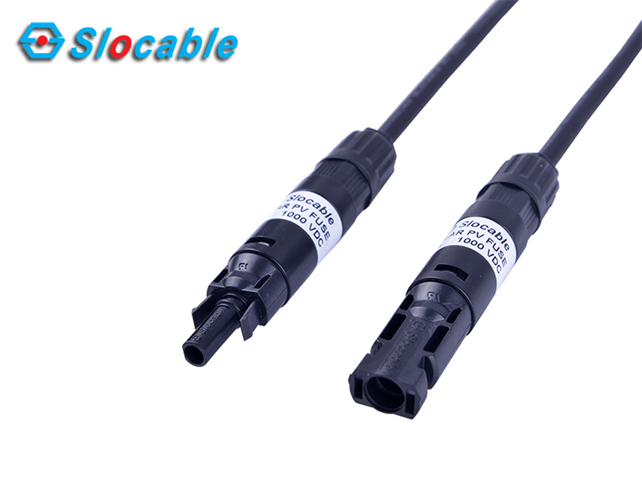

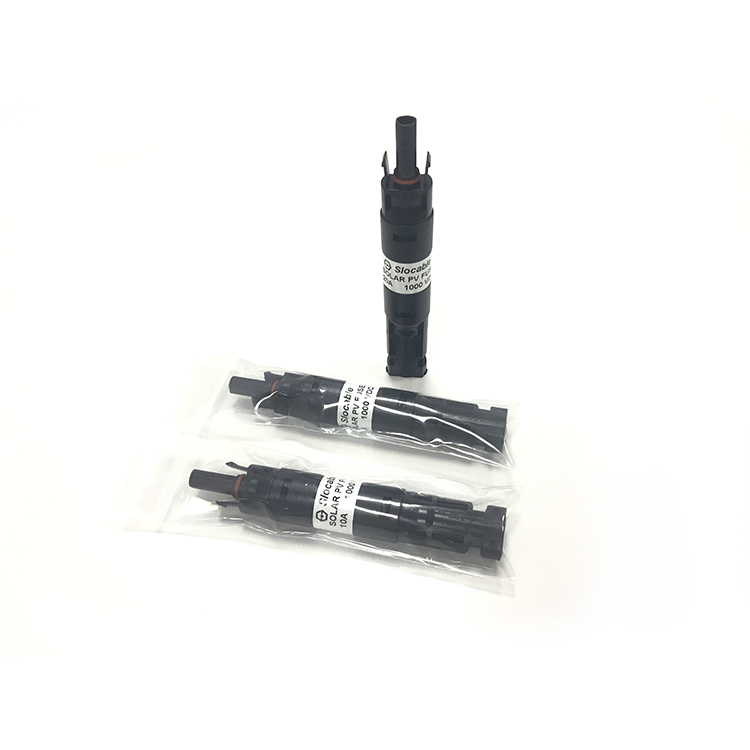

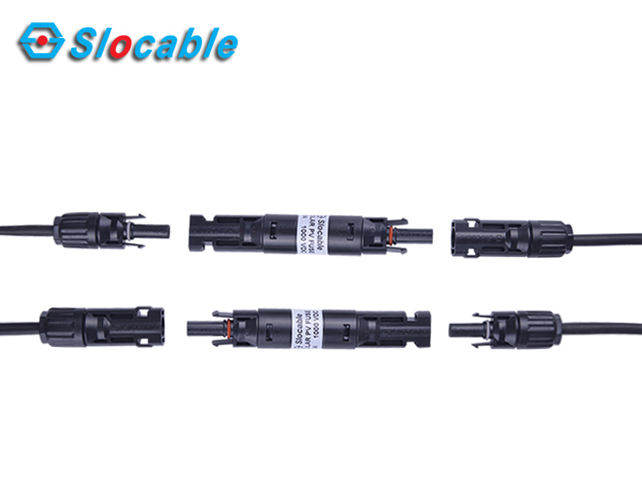

Pictures
Comparison of Solar connector

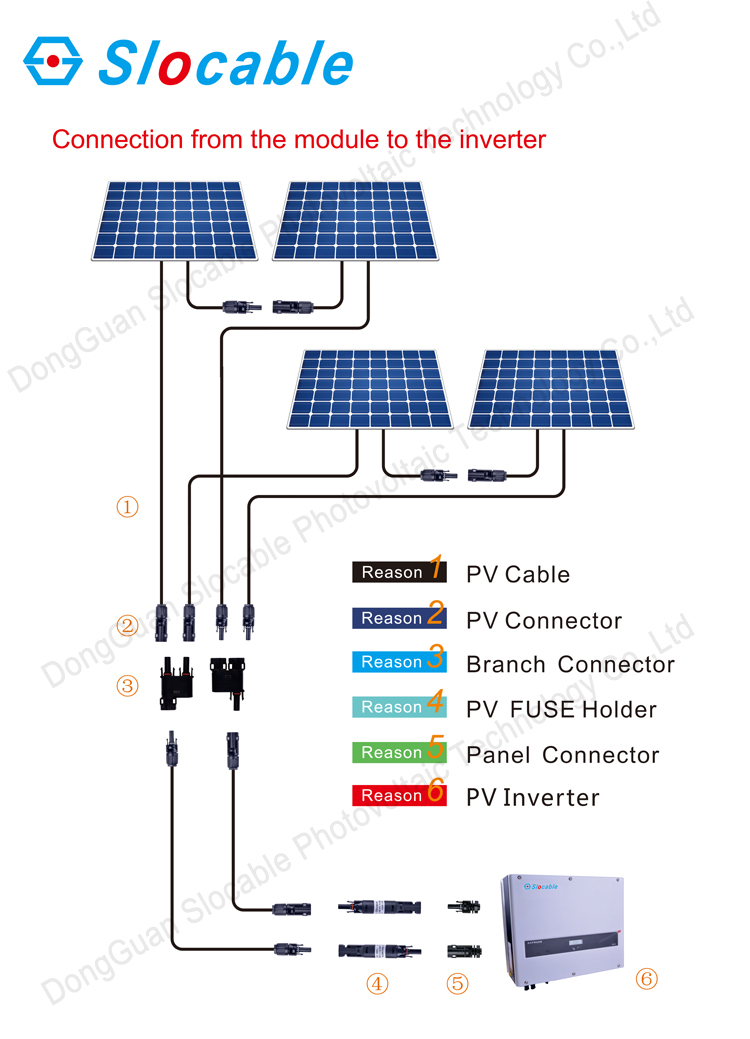

Products Application
The advantage of Solar power station: Safety in use, pollution-free, noise-free, high-quality power energy, no limit for the resource distribution area, no waste of fuel and short-term construction. That’s why Solar power is becoming the most popular and promoted energy all over the world.
We now have gained trust and praises from the domestic and intercontinental consumers for Slocable mc4 inline fuse connector for solar energy system, We are hunting ahead to building positive and beneficial links with the businesses around the globe. We warmly welcome you to definitely call us to begin discussions on how we can easily bring this into being.
We now have gained trusts and praises from the domestic and intercontinental consumer for China mc4 fuse, mc4 diode, The design, processing, purchasing, inspection, storage, assembling process are all in scientific and effective documentary process, increasing usage level and reliability of our brand deeply, which makes us become a superior supplier of the four major product categories shell castings domestically and obtained the customer’s trust well.
If any inquiry, please feel free to contact us. Many thanks!
-
