UV Resistance 2x4mm2 DC 2 Core Power Wire Cable Solar
- Product Size: 2x2.5mm, 2x4mm2, 2x6mm2
- Product Material: Tinned Copper, XLPE insulation
Solar DC Cable is specialized used in Solar PV system between the solar panel and Inverter or controller box.They’re UV resistance and can be working outdoor for 25years.
PV1-F 1000V Double Core cable panel solar Slocable
Product Description
·Dual wall insulation.Electron beam cross-linked
·Excellent resistance to U.V, oil, greases, oxygen and ozone
·Excellent resistance to abrasion
·Halogen free, flame retardant, low toxicity
·Excellent flexibility and stripping performance
·High Voltage and Current carrying capacity
Technical Data
| Rated Voltage: | 1000V DC |
| Certificate: | TUV, CE, ISO |
| Insulation Material: | XLPE (XLPO) |
| Contact Material: | 99.7% Copper, Tin plated |
| Character: | UV Resistance, Halogen-free |
| Ambient Temperature: | -40℃~+90℃ |
| Flame Class : | EN 50625 / UL 1571 |
| Color: | Black |

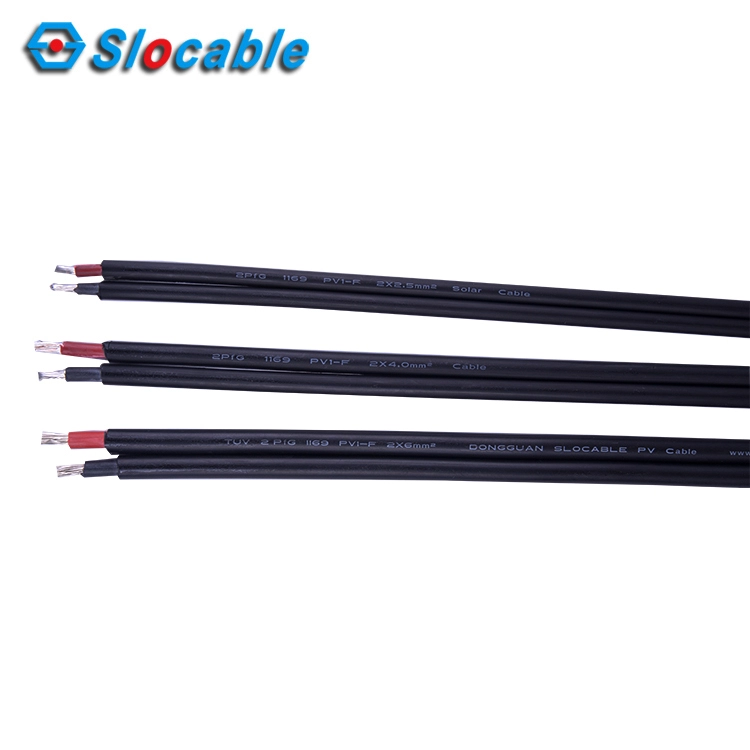

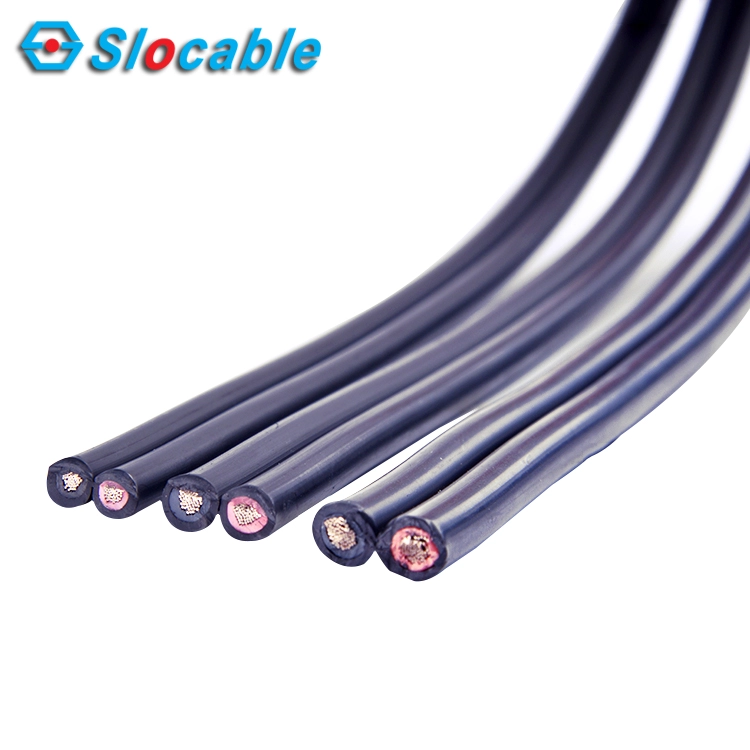

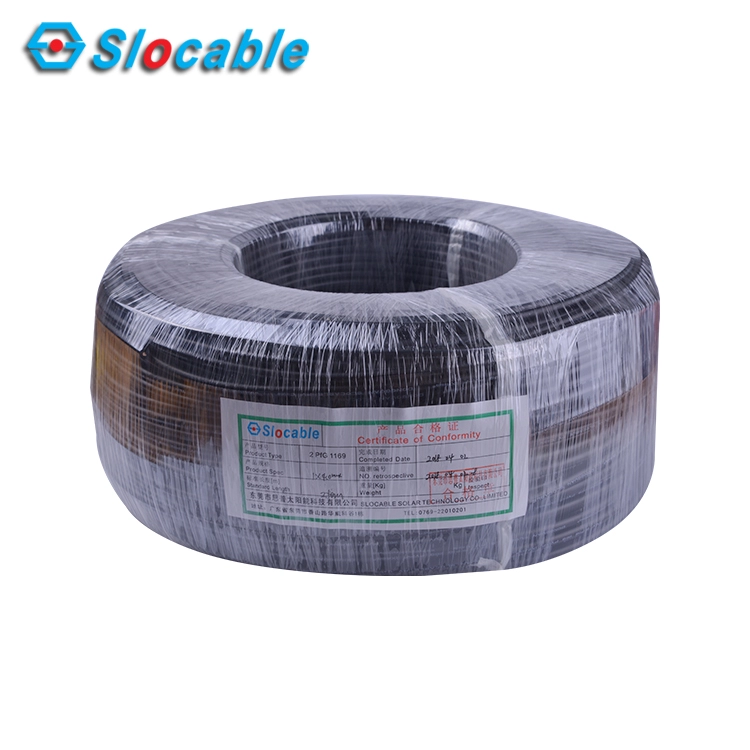

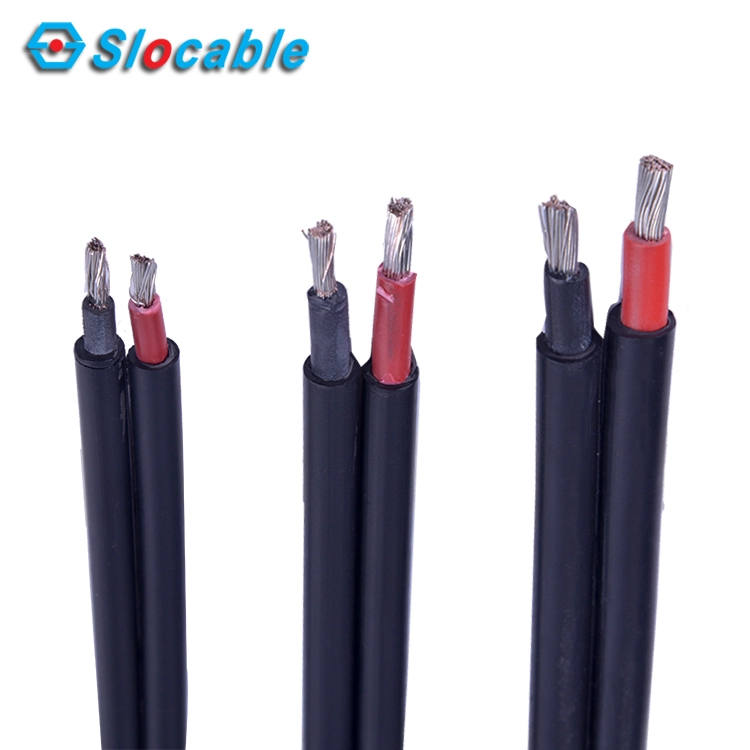

Product Photos
