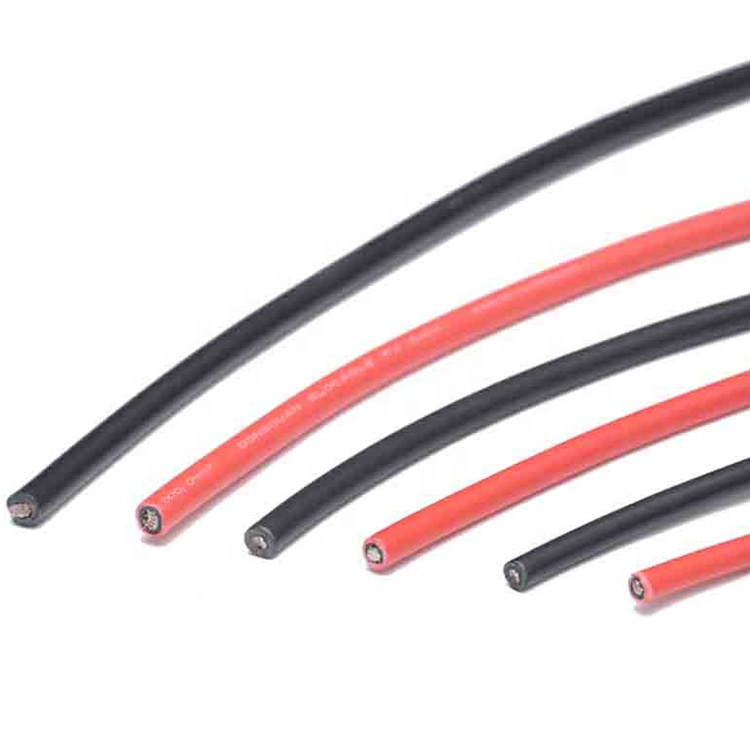

China 10 awg Solar Cable
- Product Size: 1x2.5mm,1x4mm,1x6mm,1x10mm,1x16mm
- Product Material: Tinned Copper XLPE insulation
Solar DC Cable is specialized used in Solar PV system between the solar panel and Inverter or controller box.They’re UV resistance and can be working outdoor for 25years.
Slocable China TUV 10 awg solar cable 1000V 1500V
Product Description
·Dual wall insulation. Electron beam cross-linked
·Excellent resistance to U.V, oil, greases, oxygen and ozone
·Excellent resistance to abrasion
·Halogen free, flame retardant, low toxicity
·Excellent flexibility and stripping performance
·High Voltage and Current carrying capacity
·TUV, CE, ISO approved
3) Jacket: XLPE (XLPO), Halogen-free, UV resistant.
2) Insulation: XLPE (xlpo insulation), Halogen-free.

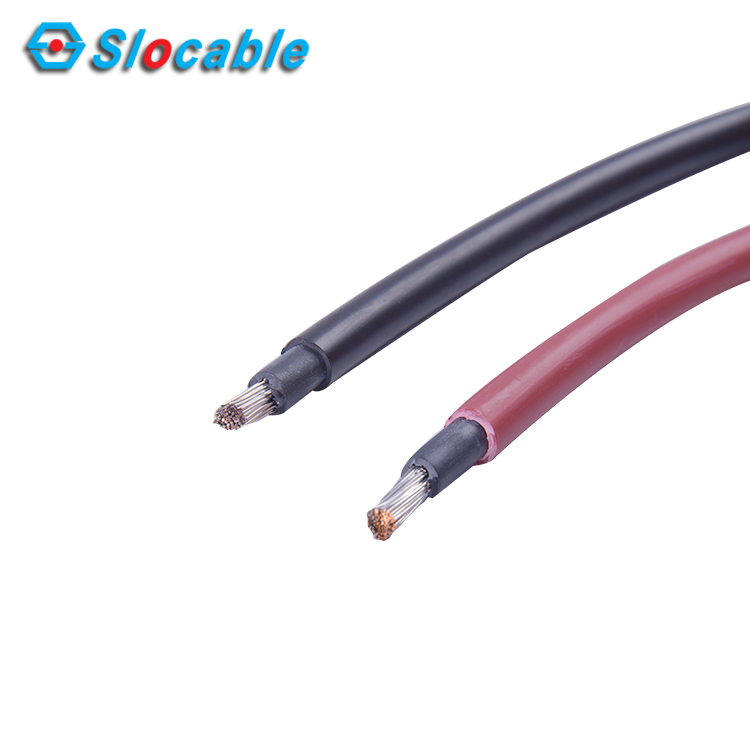

1) Conductor: 99.99% Strand Tinned Copper Wire.
Technical Data of Solar Cable
| Rated Voltage: | 1500V DC |
| Size: | 1×2.5mm2, 1x4mm2, 1x6mm2, 1x10mm2, 1x16mm2 |
| Standard: | EN50618 , IEC62930 TUV , CE , ISO |
| Contact Material: | 99.99% Strand Copper, Tin plated |
| Character: | UV Resistance, Halogen-free |
| Ambient Temperature: | -40℃~+90℃(Max. +120℃ for conductor) |
| Insulation & Jacket : | XLPE (XLPO) |
| Color: | Black / Red / Blue |
Advantages
99.99% Copper | Dual Wall Insulation | UV & Flame Resistance
Low Resistance | Low Eccentricity Ratio | Excellent Flexibility
1. We have 12 years of manufacturing experience. Exporting solar products all over the world.
2. High quality, you can use our products in confidence.
3. Although our price is not expensive, we will not cut corners. We insist to use the best and new raw material to make sure the quality.
4. The warranty we promise is 5years, and the working life is reaching 25years.
With this motto in mind, we’ve got become certainly one of by far the most technologically innovative, cost-efficient, and price-competitive manufacturers for China TUV 10 awg Solar Cable 1000V 1500V, The continual availability of high-grade solutions in combination with our excellent pre- and after-sales services ensures strong competitiveness in an increasingly globalized market place.
With this motto in mind, we’ve got become certainly one of by far the most technologically innovative, cost-efficient, and price-competitive manufacturers for china solar cable, DC Cable, Our company, is always regarding quality as company’s foundation, seeking for development via high degree of credibility, abiding by iso9000 quality management standard strictly, creating top-ranking company by the spirit of progress-marking honesty and optimism.
We also supply 6 awg pv wire, 8 awg solar wire, and 12 awg solar cable, if you are interested, please feel free to contact us.
If any inquiry, please feel free to contact us. Many thanks!
