Photovoltaic Plant 4mm 6mm Solar PV Cable
- Product Size: 1x2.5mm,1x4mm,1x6mm,1x10mm,1x16mm
- Product Material: Tinned Copper,XLPE Insulation
Solar DC Cable is specialized used in Solar PV system between the solar panel and Inverter or controller box. PVC electric wires can be installed in conduit, in cable trunking and in cable ducting. Or where there is deemed the little risk of mechanical damage these cables can be clipped direct, on cable tray, embedded or in free air.
Our goal will be to offer premium quality items at competitive price ranges, and top-notch support to consumers around the planet. We are ISO9001, CE, and GS certified and strictly adhere to their high-quality specifications for High Quality for Photovoltaic Plant 4mm 6mm solar pv cable, We glance ahead to determine a long-term organization marriage together with your esteem co-operation.
Our goal will be to offer premium quality items at competitive price ranges, and top-notch support to consumers around the planet. We are ISO9001, CE, and GS certified and strictly adhere to their high-quality specifications for China Electrical Wire, Electrical Wire and Cable, So far our merchandise has been exported to east Europe, the Middle East, Southeast, Africa and South America etc. We have now 13years of experience in sales and purchases in Isuzu parts at home and abroad and the ownership of the modernized electronic Isuzu parts checking systems. We honor our core principle of Honesty in business, priority in service and will do our best to provide our customers with high-quality items and excellent service.
Slocable High Quality for Photovoltaic Plant 4mm 6mm solar photovoltaic cable
Product Description
·Dual wall insulation.Electron beam cross-linked
·Excellent resistance to U.V, oil, greases, oxygen and ozone
·Excellent resistance to abrasion ·Halogen free, flame retardant, low toxicity
·Excellent flexibility and stripping performance
·High Voltage and Current carrying capacity
·TUV, CE, ISO approved
3) Jacket: XLPE (XLPO),Halogen-free, UV resistant.
2) Insulation: XLPE (XLPO),Halogen-free .
1) Conductor: 99.99% Stand Tinned Copper Wire
Technical Data of Solar Cable
| Rated Voltage: | 1000V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | XLPE (XLPO) |
| Contact Material: | 99.7% Copper, Tin plated |
| Character: | UV Resistance, Halogen-free |
| Ambient Temperature: | -40℃~+90℃ |
| Flame Class : | EN 50625 / UL 1571 |
| Color: | Black / Red / Blue |
dc cables for solar panels

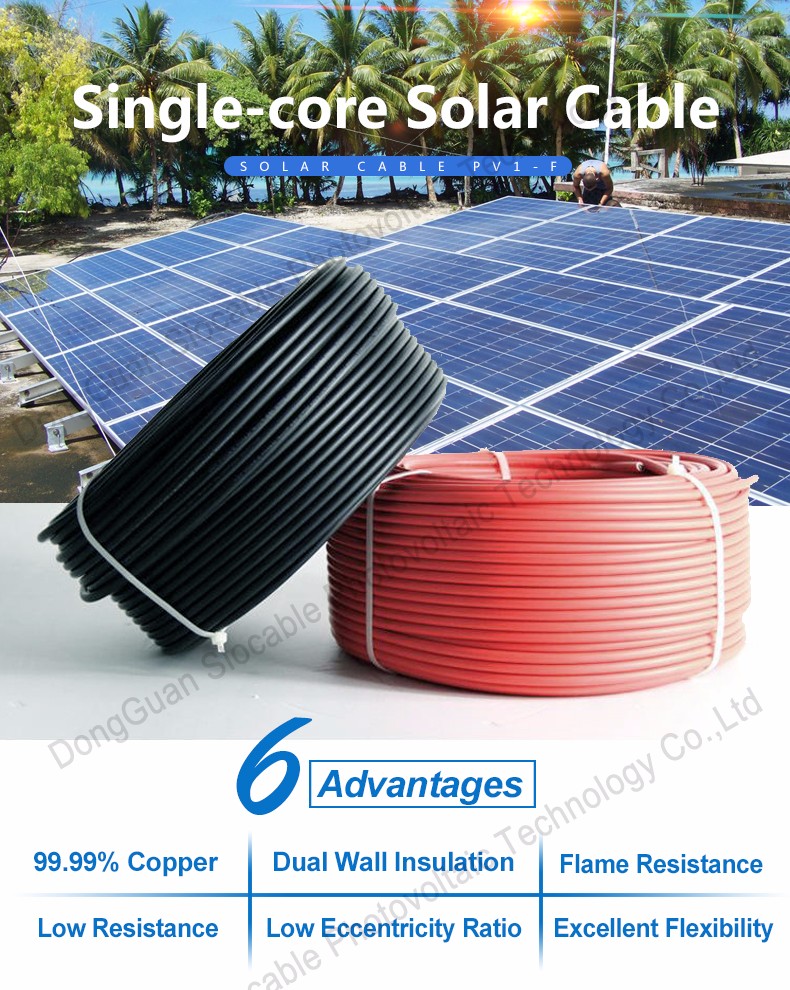

Advantages
99.99% Copper | Dual Wall Insulation | UV & Flame Resistance
Low Resistance | Low Eccentricity Ratio | Excellent Flexibility
1. We have 12 years manufacturing experience.Exporting solar products all over the world.
2. High quality, you can use our products in confidence.
3. Although our price is not expensive, we will not cut corners. We insist to use the best and new raw material to make sure the quality.
4. The warranty we promise is 5years, and the working life is reaching 25years.
Solar PV Cable Specification
| Name : | Single Core Solar Cable |
| Standard : | PV1-F TUV , CE , ISO |
| Size : | 1×2.5mm2 / 1x4mm2 / 1x6mm2 / 1x10mm2 / 1x16mm2 |
| Conductor : | 99.99% Strand Tinned Copper Wire |
| Insulation : | XLPE (XLPO) |
| Jacket : | XLPE (XLPO) |
| Color : | Black / Red / Blue |
| Temperature Range : | -40℃ ~ 90℃ (Max. +120℃ for conductor) |
| Outer Diameter : | 5.4mm / 6.2mm / 7.1mm / 7.8mm / 10.2mm |
| Rated Current : | 30A / 50A / 70A / 90A / 132A |
| Rated Voltage : | AC 0.6 / 1.0 KV ; DC 1.0 / 1.8 KV |
We are the solar dc cable suppliers, we supply dc wire for solar panels, such as 4mm dc wire, 6mm dc cable and 10mm dc solar cable(1500v dc cable). Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
If any inquiry, please feel free to contact us.
-
