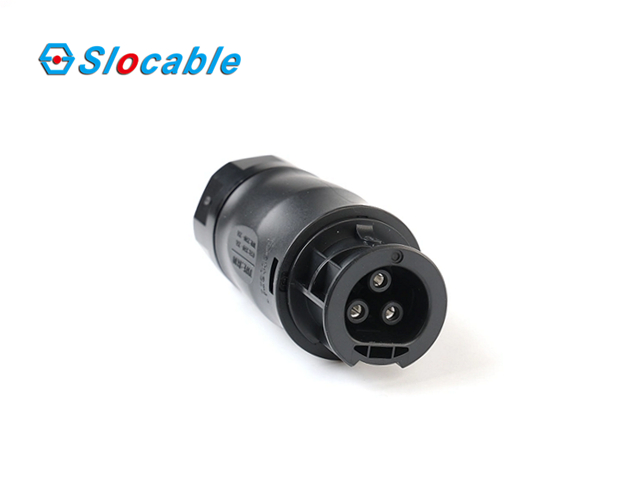

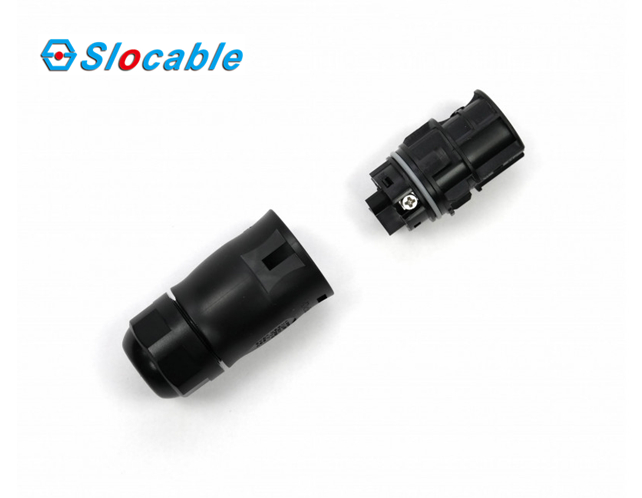

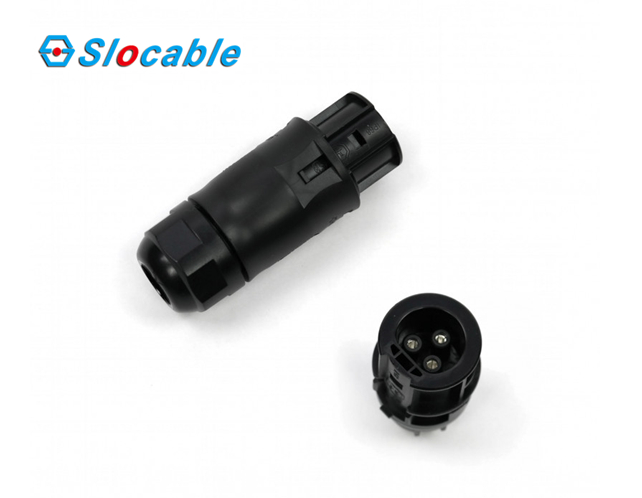

Betteri BC01 PV 3 Pin AC Female Connector for Solar Inverter

Conductor Material: Copper
Sheath Material: PVC
Rated V/C: 230V AC, 25A
Waterproof Level: IP68
Operating Temperature Range: -40°C - +85°C

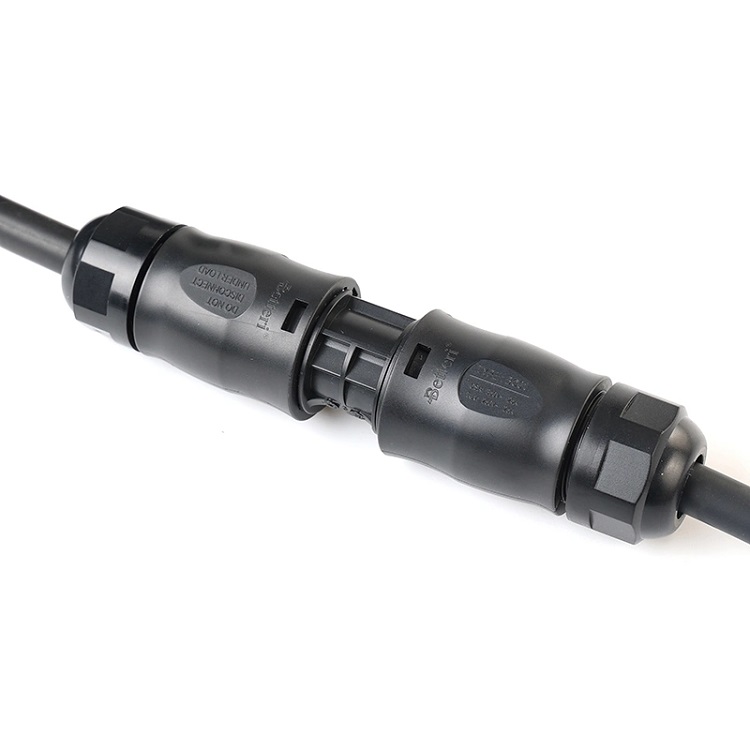

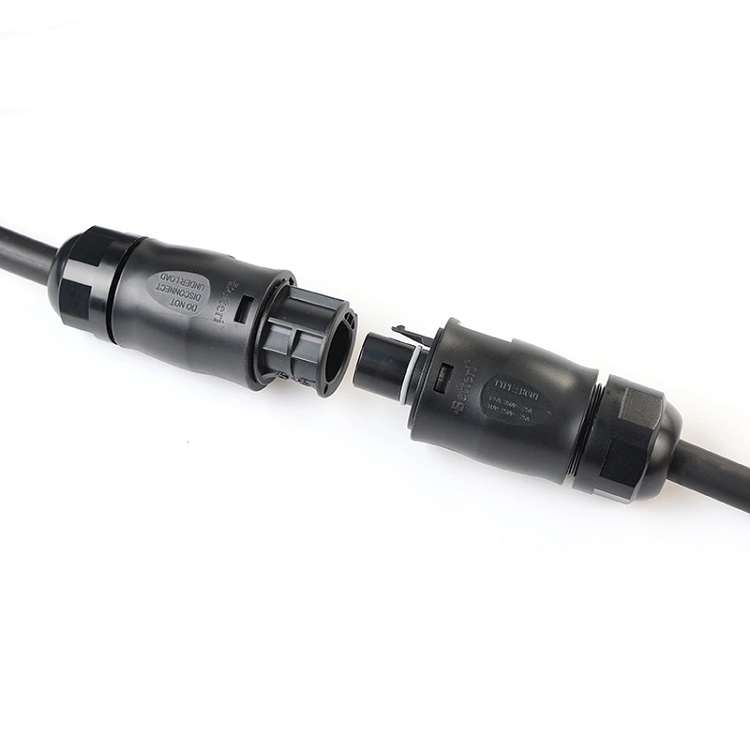

The Betteri BC01 Female Stecker is used to make an extension cord between two microinverters or to create a connecting power cord. The opposite side can be connected to an H07RN-F rubber hose line with a diameter of 10 – 14mm. You need this socket to connect the micro inverter to your home network!

Product Description

The Betteri BC01 is a three-pin connector made of UV-resistant material. In addition, it is dust and waterproof to IP68 standards and is therefore suitable for indoor and outdoor use. A male connector is mounted on the output of the microinverter.

Product Features

● Compact dimensions, more pleasing in form

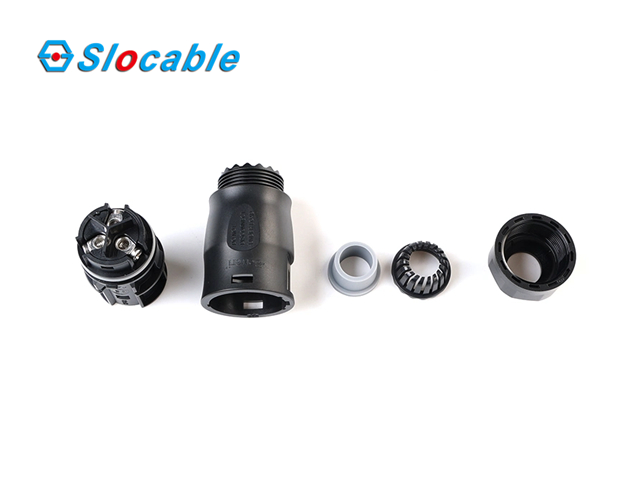

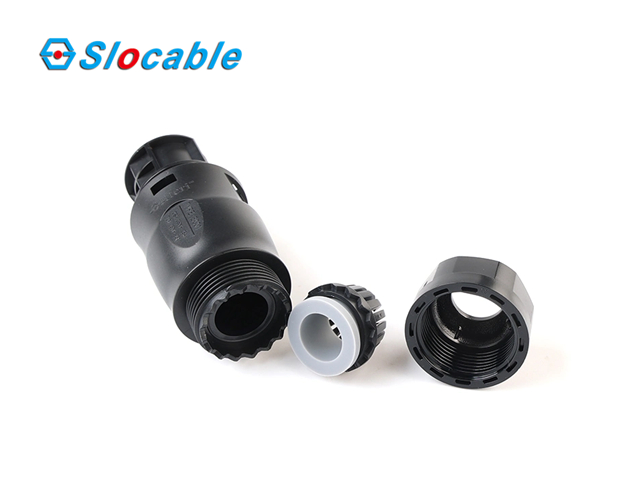

● Screw connection for easy field installation
● IP68 level protection of enclosure
● Choose the best plastic material; ensure the product performance and using life
● UV resistant – suitable for indoor and outdoor mounting
● Product quality is stable and reliable, suitable for outdoor applications
● Suitable for one-phase inverters, for cables with a diameter of 10 – 14 mm
